Article no.: F032112722

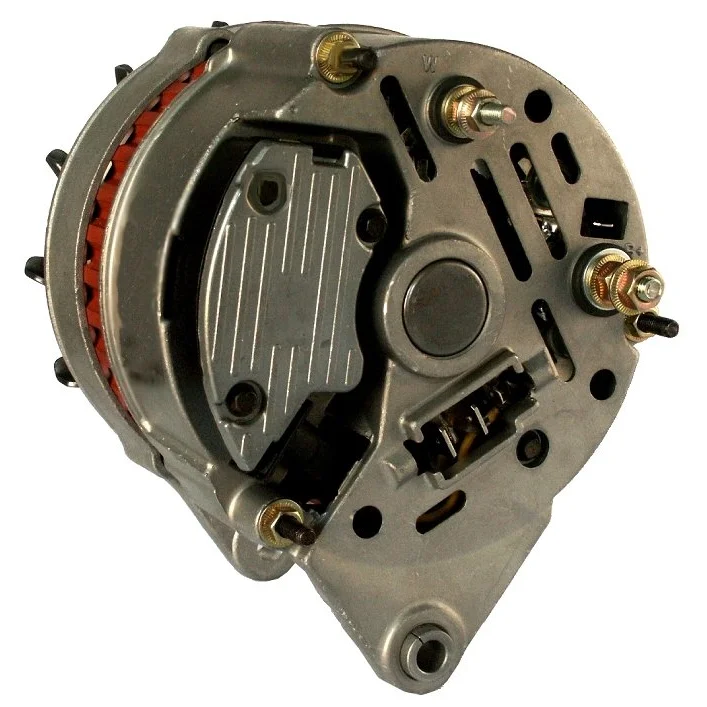

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 70, Rotation: CW, Mounting bracket distributor: 83.50

Description

Lucas alternator A127 Gen.12V-70A without belt/fan disk. Can be equipped with different pulleys as needed. Optional Bosch type = 90-180-3076 For Yourex product order 90-900-4028

Voltage: 14
Amperage: 70
Terminal: W
Width/holder arm: 10.50
Mounting bracket distance: 83.50
Bracket hole: 8.50
Belt adjustment bracket hole position: 50
Belt adjustment bracket hole 1: M8
Radius: 85.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 15
D+ size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 165.00
Pulley: w/o
Fan: EF
Voltage regulator type: IR
Product information: BN
Servicing: Massey Ferguson

Files

  • OEM
    F032110770, F032112722, LRA 460, LRA 461, LRA 602, YLE10065, 714-26100, 1494ir, 24161d, 24235, 24294a, 24322, 24322a, 24322B, 24407, 24450, 110770, 3677263M91, 3693247M91, 3701909M91, 3701910m91, 3701911m91, 3701913m91, 3714944m1, 3819332M91, 4808548M91, 54022053, 54022108, 54022109, 54022117, 54022118, 54022160, 54022163, 54022211, 54022212, 54022219, 54022244, 54022262, 54022263, 54022280, 54022295, 54022306, 54022335, 54022343, 54022383, 54022426, 54022428, 54022437, 54022438, 54022528, 54022529, 54022530, 54022532, 54022536, 54022560, 54022561, 54022580, 54022656, 54022746, 54022751, 63324407, 87800219

  • Normalised article numbler
    a4109, a9334s, alt12068, alt4028f, bao3157, cal21222, dra3294, dra3667, f032110770, f032112722, f042306009, f042a06009, ia1373, lea0060, lea0708, lra00462, lra01669, lra460, lra461, lra602, lrb00290, mg550, mg682, yle10065, 1494ir, 12091n, 12096, 12096n, 12365n, 24161d, 24235, 24294a, 24322, 24322a, 24322b, 24407, 24450, 110770, 111010, 111333, 281629, 281777, 282885, 301494ri, 3677263m91, 3693247m91, 3701909m91, 3701910m91, 3701911m91, 3701913m91, 3714944m1, 3819332m91, 4808548m91, 54022053, 54022108, 54022109, 54022117, 54022118, 54022160, 54022163, 54022211, 54022212, 54022219, 54022244, 54022262, 54022263, 54022280, 54022295, 54022306, 54022335, 54022343, 54022383, 54022426, 54022428, 54022437, 54022438, 54022528, 54022529, 54022530, 54022532, 54022536, 54022560, 54022561, 54022580, 054022656, 54022656, 54022746, 54022751, 063324400, 063324407, 63324407, 66021836, 71426100, 87800219, 214109652, 244104702, 520101702, 544107702, 054022656010
  • Description
    Lucas alternator A127 Gen.12V-70A without belt/fan disk. Can be equipped with different pulleys as needed. Optional Bosch type = 90-180-3076 For Yourex product order 90-900-4028

    Voltage: 14
    Amperage: 70
    Terminal: W
    Width/holder arm: 10.50
    Mounting bracket distance: 83.50
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 50
    Belt adjustment bracket hole 1: M8
    Radius: 85.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 15
    D+ size: Plug
    Rotation: CW
    Plug no.: PL22
    W plug type: M5
    Total length mm: 165.00
    Pulley: w/o
    Fan: EF
    Voltage regulator type: IR
    Product information: BN
    Servicing: Massey Ferguson

    Files

  • Suitable for these vehicles

    • OEM
      F032110770, F032112722, LRA 460, LRA 461, LRA 602, YLE10065, 714-26100, 1494ir, 24161d, 24235, 24294a, 24322, 24322a, 24322B, 24407, 24450, 110770, 3677263M91, 3693247M91, 3701909M91, 3701910m91, 3701911m91, 3701913m91, 3714944m1, 3819332M91, 4808548M91, 54022053, 54022108, 54022109, 54022117, 54022118, 54022160, 54022163, 54022211, 54022212, 54022219, 54022244, 54022262, 54022263, 54022280, 54022295, 54022306, 54022335, 54022343, 54022383, 54022426, 54022428, 54022437, 54022438, 54022528, 54022529, 54022530, 54022532, 54022536, 54022560, 54022561, 54022580, 54022656, 54022746, 54022751, 63324407, 87800219

    • Normalised article numbler
      a4109, a9334s, alt12068, alt4028f, bao3157, cal21222, dra3294, dra3667, f032110770, f032112722, f042306009, f042a06009, ia1373, lea0060, lea0708, lra00462, lra01669, lra460, lra461, lra602, lrb00290, mg550, mg682, yle10065, 1494ir, 12091n, 12096, 12096n, 12365n, 24161d, 24235, 24294a, 24322, 24322a, 24322b, 24407, 24450, 110770, 111010, 111333, 281629, 281777, 282885, 301494ri, 3677263m91, 3693247m91, 3701909m91, 3701910m91, 3701911m91, 3701913m91, 3714944m1, 3819332m91, 4808548m91, 54022053, 54022108, 54022109, 54022117, 54022118, 54022160, 54022163, 54022211, 54022212, 54022219, 54022244, 54022262, 54022263, 54022280, 54022295, 54022306, 54022335, 54022343, 54022383, 54022426, 54022428, 54022437, 54022438, 54022528, 54022529, 54022530, 54022532, 54022536, 54022560, 54022561, 54022580, 054022656, 54022656, 54022746, 54022751, 063324400, 063324407, 63324407, 66021836, 71426100, 87800219, 214109652, 244104702, 520101702, 544107702, 054022656010
