HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112756

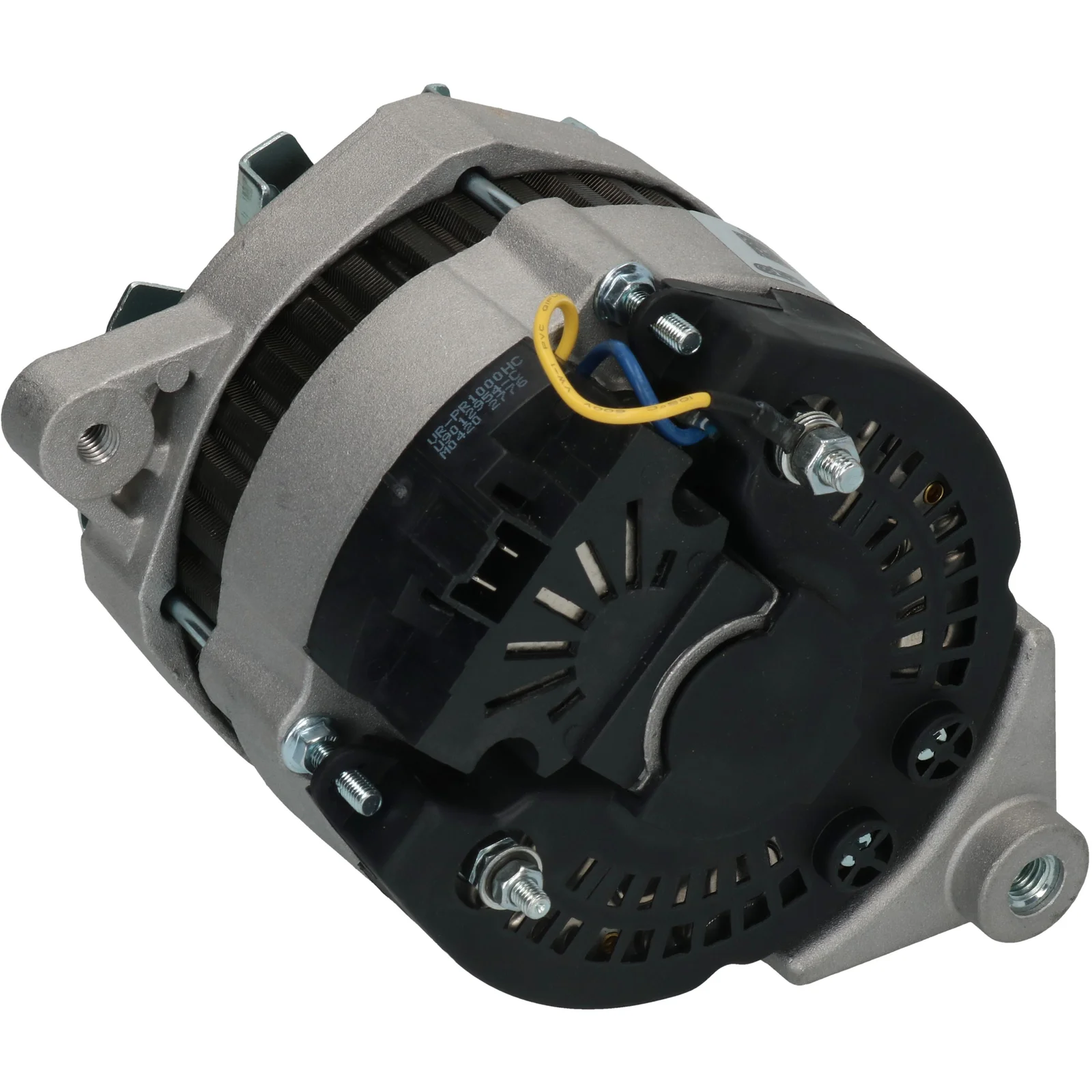

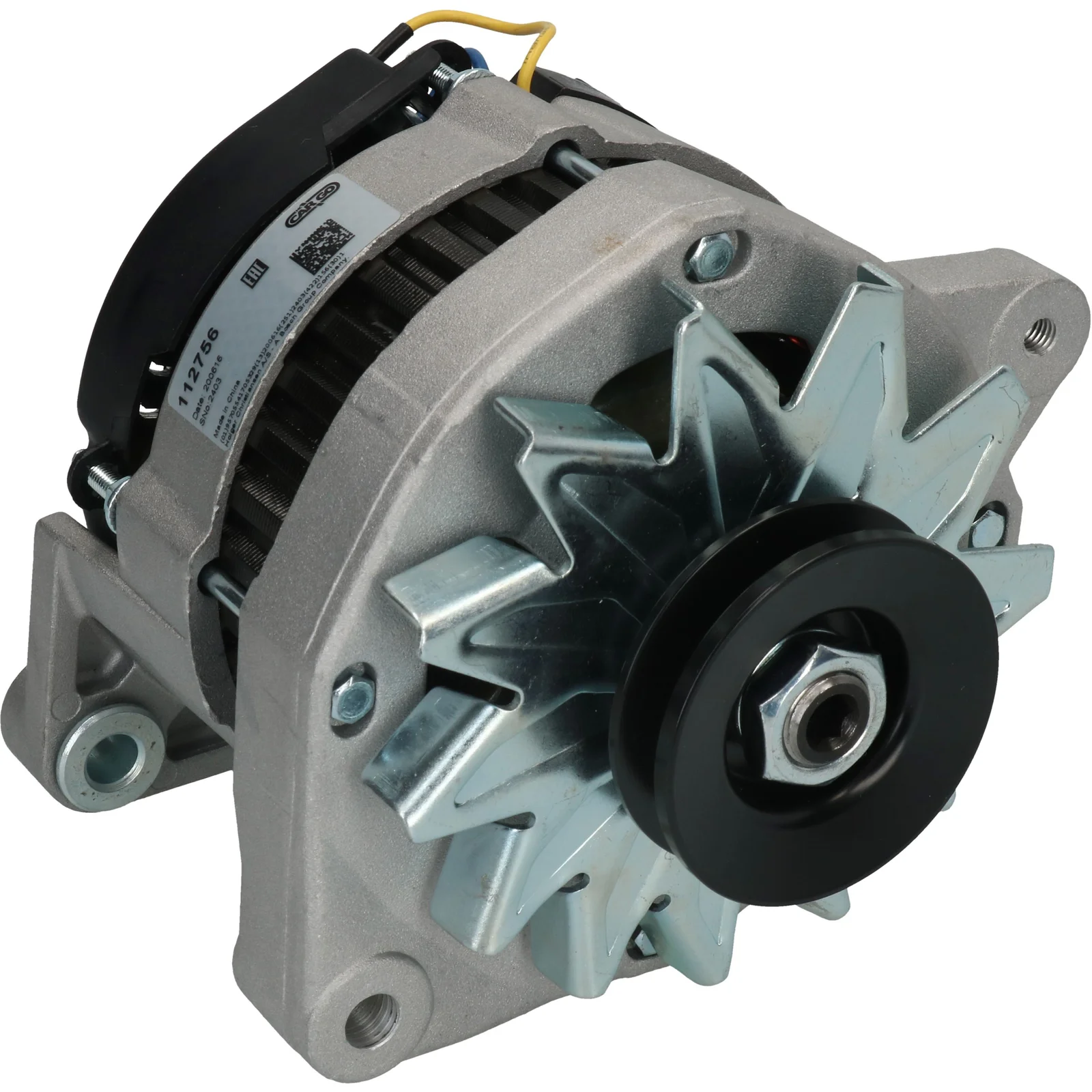

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 60, Rotation: CW, Mounting bracket distance: 65.00

Description

Voltage: 14
Amp: 60
Pulley dist.: 56.00
Width/holder arm: 27.00
Mount. bracket dist.: 65.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 68.70
Grooves/pulley: 1
Radius: 84.50
Radius 2: 82.00
B+: M6
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL27
Total length mm: 160.00
Pulley: P
Alternator type: IR
Prod. info: BN
Servicing: Renault

Files

  • OEM
    a13n157, F032112756, 549ir, 1986A01721, 2541117, 2541257, 5002633, 7701499436, 9120144302, 9120144303

  • Normalised article numbler
    a13n157, a3006, cal15112, cal15115, dra3086, dra3086x, dra7321, f032112756, lra00397, na374, qa1709, va266, 8el011360201, 8el011710961, 8el725844001, 549ir, 1986a01721, 4358, 5146, 22529r, 22530n, 30549ri, 55867, 200089, 210091, 210091a, 210226, 210226a, 281546, 433096, 433459, 746804, 2541117, 2541257, 3237321, 5002633, 9213593, 12037320, 20100397, 35215280, 230123602, 0986037321, 7701499436, 9120144302, 9120144303
  • Description
    Voltage: 14
    Amp: 60
    Pulley dist.: 56.00
    Width/holder arm: 27.00
    Mount. bracket dist.: 65.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 68.70
    Grooves/pulley: 1
    Radius: 84.50
    Radius 2: 82.00
    B+: M6
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL27
    Total length mm: 160.00
    Pulley: P
    Alternator type: IR
    Prod. info: BN
    Servicing: Renault

    Files

  • Suitable for these vehicles

    • OEM
      a13n157, F032112756, 549ir, 1986A01721, 2541117, 2541257, 5002633, 7701499436, 9120144302, 9120144303

    • Normalised article numbler
      a13n157, a3006, cal15112, cal15115, dra3086, dra3086x, dra7321, f032112756, lra00397, na374, qa1709, va266, 8el011360201, 8el011710961, 8el725844001, 549ir, 1986a01721, 4358, 5146, 22529r, 22530n, 30549ri, 55867, 200089, 210091, 210091a, 210226, 210226a, 281546, 433096, 433459, 746804, 2541117, 2541257, 3237321, 5002633, 9213593, 12037320, 20100397, 35215280, 230123602, 0986037321, 7701499436, 9120144302, 9120144303
