Article no.: F032112769

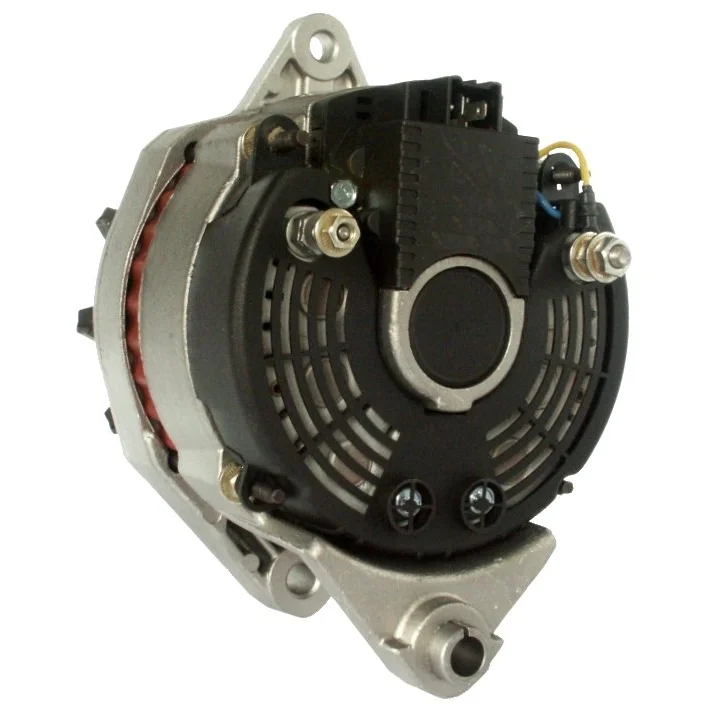

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 60, Rotation: CW, Mounting bracket dist.: 70.00

Description

Voltage: 14
Amps: 60
Pulley dis.: 46.50
Width/holder arm: 26.80
Mounting bracket dis.: 70.00
Bracket hole: 10.50
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 8.60
Pulley diameter: 59.60
Grooves/pulley: 6
Radius: 85.00
Radius 2: 83.00
B+: M6
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL27
Total length mm: 166.00
Pulley: SP
Voltage regulator type: IR
Product info: BN
Servicing: Renault

Files

  • OEM
    a13n161, a13n206, a13n209, F032112769, 635ir, 2541313, 2541328, 7700852395, 7701499443

  • Normalised article numbler
    a13n161, a13n206, a13n209, a3008, alt7013, bao3144, cal15114, dra3107, dra3129, f032112769, f042a0b018, fra722, lra00932, na408, pbna0565, pbna0581, qa1968, va344, va349, 8el011360501, 8el011710981, 8el725919001, 635ir, 2624, 4345, 20932r, 21816r, 22336r, 30635ri, 55869, 56252, 200148, 200190, 200309, 210072, 210072a, 210258, 210258a, 281704, 281708, 433149, 436255, 746030, 746172, 746830, 746972, 747075, 2541313, 2541328, 3238851, 12038850, 12038860, 20500738, 20500974, 32038851, 230125602, 230125702, 0986038851, 0986038861, 7700852395, 7701499443
  • Description
    Voltage: 14
    Amps: 60
    Pulley dis.: 46.50
    Width/holder arm: 26.80
    Mounting bracket dis.: 70.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 8.60
    Pulley diameter: 59.60
    Grooves/pulley: 6
    Radius: 85.00
    Radius 2: 83.00
    B+: M6
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL27
    Total length mm: 166.00
    Pulley: SP
    Voltage regulator type: IR
    Product info: BN
    Servicing: Renault

    Files

  • Suitable for these vehicles

    • OEM
      a13n161, a13n206, a13n209, F032112769, 635ir, 2541313, 2541328, 7700852395, 7701499443

    • Normalised article numbler
      a13n161, a13n206, a13n209, a3008, alt7013, bao3144, cal15114, dra3107, dra3129, f032112769, f042a0b018, fra722, lra00932, na408, pbna0565, pbna0581, qa1968, va344, va349, 8el011360501, 8el011710981, 8el725919001, 635ir, 2624, 4345, 20932r, 21816r, 22336r, 30635ri, 55869, 56252, 200148, 200190, 200309, 210072, 210072a, 210258, 210258a, 281704, 281708, 433149, 436255, 746030, 746172, 746830, 746972, 747075, 2541313, 2541328, 3238851, 12038850, 12038860, 20500738, 20500974, 32038851, 230125602, 230125702, 0986038851, 0986038861, 7700852395, 7701499443
