Article no.: F032112834

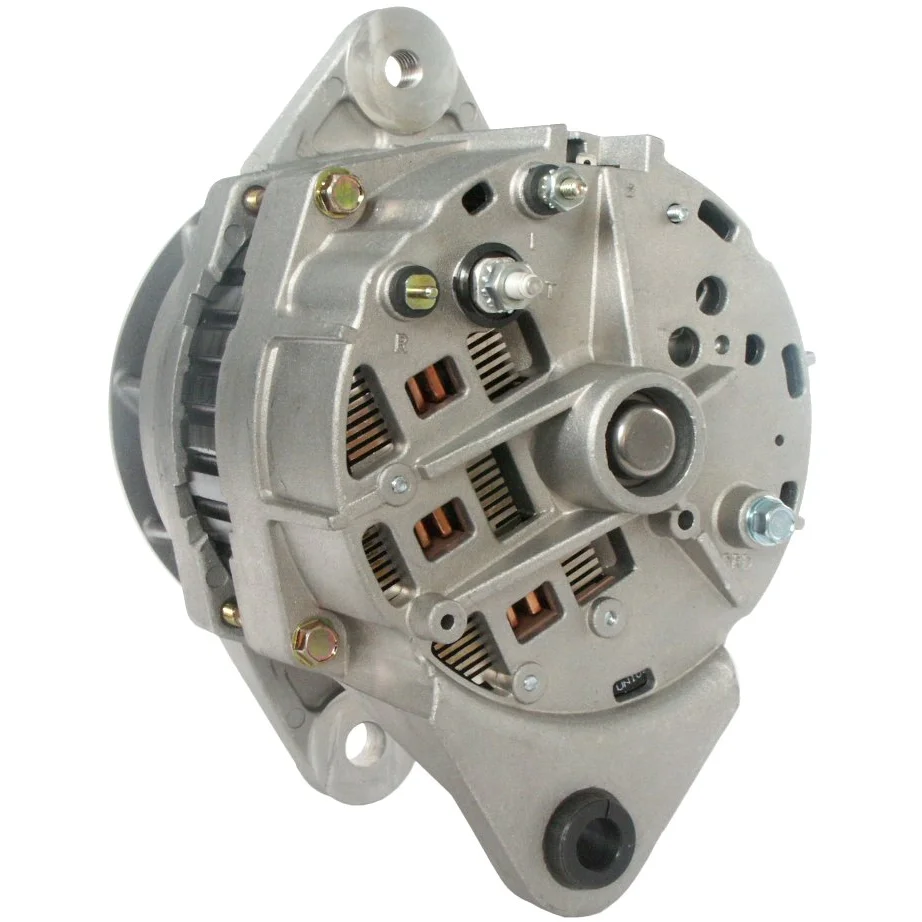

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 145, Rotation: CW, Mounting bracket distance: 101.50

Description

Voltage: 14
Amp: 145
Terminal: R
Width/holder arm: 13.20
Mounting bracket dist.: 101.50
Bracket hole: 13.00
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: 1/2" UNC
Radius: 99.00
Radius 2: 99.00
B+: 1/4" UNF
Position/B+ in min.: 50
D+ Size: 10-24 UNC
Rotation: CW
Total length mm: 221.00
Pulley: without
Regulator type: IR
Product info: BN
Servicing: International
Remarks: Replacing: 22SI. One-wire system. B+: 1/4"-UNC. I-Terminal: universal. R-Terminal: 10-24.

Files

  • OEM
    F032112834, 10459205, 10459217, 10459254, 10459472, 19020305, 19020306, 19020308, 19020310, 19020312, 19020379, 19020381

  • Normalised article numbler
    a1036, a1494, adr0218, adro218, alt1004, alt1007, alt40004, f032112834, f042300003, f042a00003, 8el015643451, 8073n, 8073r, 8075r, 8076, 8076n, 8076nusa, 8076r, 8079, 8079r, 1215400dr, 1215400dr1, 1227900dr, 1228000dr, 1228000dr1, 1228100dr, 10459205, 10459217, 10459254, 10459472, 12090139, 19020304, 19020305, 19020306, 19020308, 19020310, 19020312, 19020379, 19020381, 90014297, 835026100
  • Description
    Voltage: 14
    Amp: 145
    Terminal: R
    Width/holder arm: 13.20
    Mounting bracket dist.: 101.50
    Bracket hole: 13.00
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: 1/2" UNC
    Radius: 99.00
    Radius 2: 99.00
    B+: 1/4" UNF
    Position/B+ in min.: 50
    D+ Size: 10-24 UNC
    Rotation: CW
    Total length mm: 221.00
    Pulley: without
    Regulator type: IR
    Product info: BN
    Servicing: International
    Remarks: Replacing: 22SI. One-wire system. B+: 1/4"-UNC. I-Terminal: universal. R-Terminal: 10-24.

    Files

  • Suitable for these vehicles

    • OEM
      F032112834, 10459205, 10459217, 10459254, 10459472, 19020305, 19020306, 19020308, 19020310, 19020312, 19020379, 19020381

    • Normalised article numbler
      a1036, a1494, adr0218, adro218, alt1004, alt1007, alt40004, f032112834, f042300003, f042a00003, 8el015643451, 8073n, 8073r, 8075r, 8076, 8076n, 8076nusa, 8076r, 8079, 8079r, 1215400dr, 1215400dr1, 1227900dr, 1228000dr, 1228000dr1, 1228100dr, 10459205, 10459217, 10459254, 10459472, 12090139, 19020304, 19020305, 19020306, 19020308, 19020310, 19020312, 19020379, 19020381, 90014297, 835026100
