Article no.: F032112850

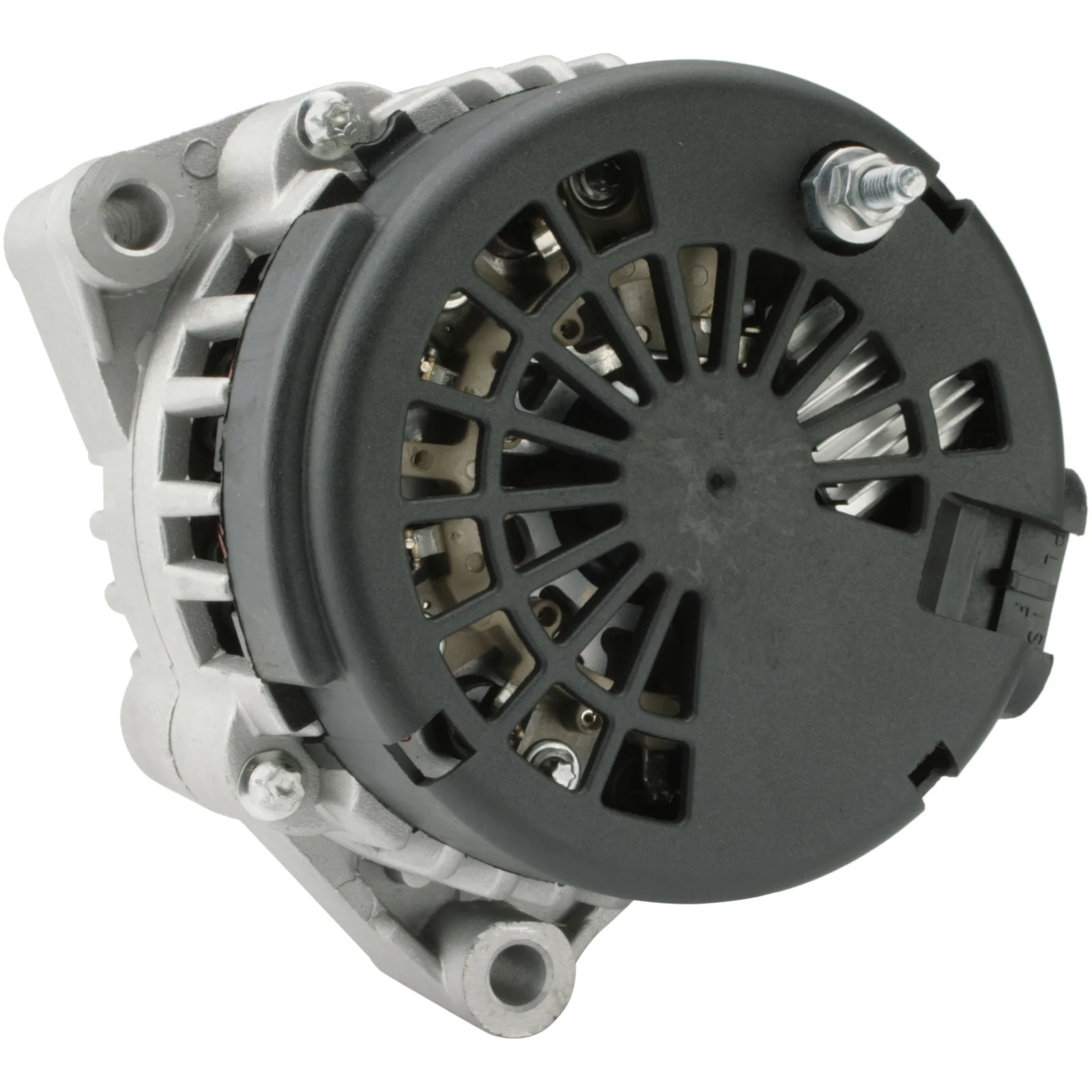

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 105, Rotation: CW, Pulley diameter: 56.70

Description

Voltage: 14
Amp: 105
Pulley dist.: 72.50
Width/holder arm: 50.60
Bracket hole: 10.30
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 10.30
Pulley dia.: 56.70
Grooves/pulley: 6
Radius: 82.00
Radius 2: 82.00
B+: M6
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL122
Total length mm: 176.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Chevrolet
Remarks: Replacing: AD230.

Files

  • OEM
    F032112850, 321-1748, 321-1798, 321-1811, 1986A01683, 10464404, 10464438, 10464451, 10480229, 10480326, 10480388, 19244727

  • Normalised article numbler
    adr0187, adr0215, alt1503, alt1509, f032112850, f042300179, f042a00179, lra04288, 0986ur0648, 1986a01683, 8238, 8238n, 8238r, 8247, 8247n, 8247r, 8273, 8291, 134515, 287897, 554040ri, 712612, 1219721dr, 1232021dr, 3211748, 3211798, 3211811, 10464404, 10464438, 10464451, 10480229, 10480326, 10480388, 19244727
  • Description
    Voltage: 14
    Amp: 105
    Pulley dist.: 72.50
    Width/holder arm: 50.60
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 10.30
    Pulley dia.: 56.70
    Grooves/pulley: 6
    Radius: 82.00
    Radius 2: 82.00
    B+: M6
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL122
    Total length mm: 176.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Chevrolet
    Remarks: Replacing: AD230.

    Files

  • Suitable for these vehicles

    • OEM
      F032112850, 321-1748, 321-1798, 321-1811, 1986A01683, 10464404, 10464438, 10464451, 10480229, 10480326, 10480388, 19244727

    • Normalised article numbler
      adr0187, adr0215, alt1503, alt1509, f032112850, f042300179, f042a00179, lra04288, 0986ur0648, 1986a01683, 8238, 8238n, 8238r, 8247, 8247n, 8247r, 8273, 8291, 134515, 287897, 554040ri, 712612, 1219721dr, 1232021dr, 3211748, 3211798, 3211811, 10464404, 10464438, 10464451, 10480229, 10480326, 10480388, 19244727
