Article no.: F032112853

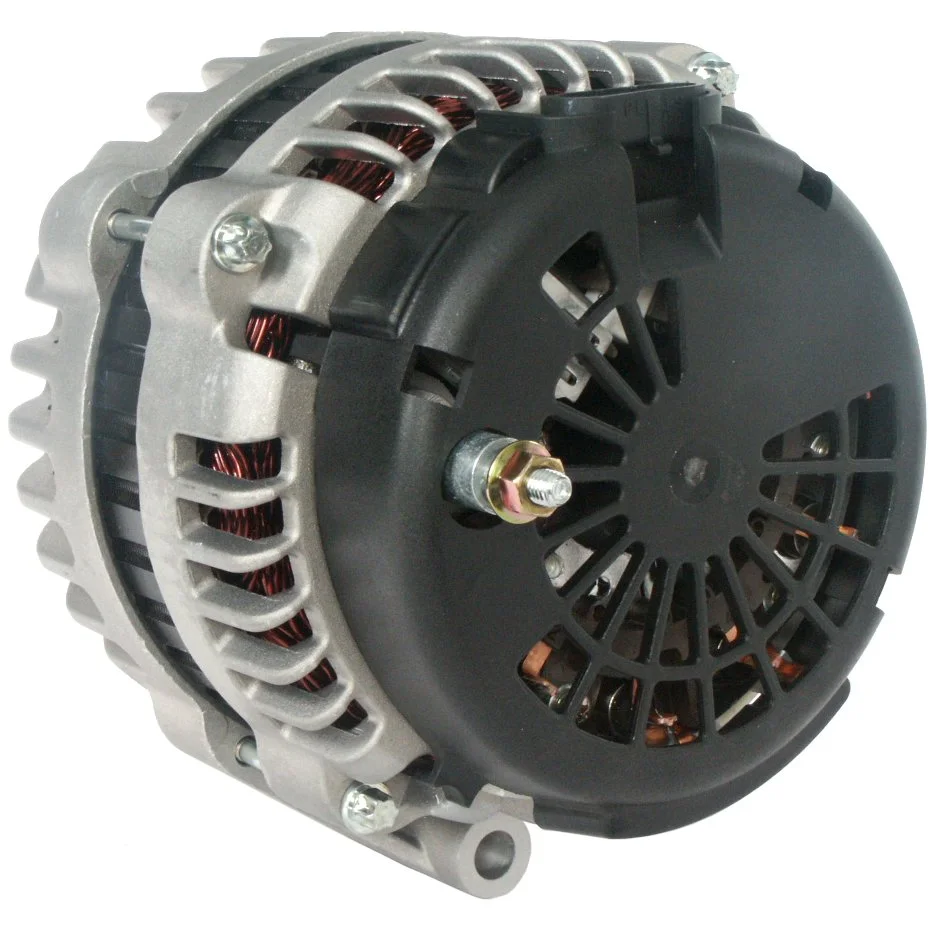

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 130, Rotation: CW, Pulley diameter: 56.50

Description

Voltage: 14
Amp: 130
Pulley dist.: 73.00
Width/holder arm: 51.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 56.50
Grooves/pulley: 6
Radius: 89.00
Radius 2: 89.00
B+: M6
Position/B+ in min.: 45
D+ Size: Plug
Rotation: CW
Plug no.: PL122
Total length mm: 180.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Chevrolet
Remarks: Replacing: AD244.

Files

  • OEM
    F032112853, 321-1749, 10464405, 10480234, 10480390, 10754097, 15750871, 15768830

  • Normalised article numbler
    a1069s, adr0217, alt1500, cal12111, f032112853, f042300174, f042300177, f042a00174, f042a00177, 8237, 8237r, 8274, 8292n, 553188ri, 1222121dr, 1241901dr, 1241921dr, 3211749, 10464405, 10480234, 10480390, 10754097, 15750871, 15768830
  • Description
    Voltage: 14
    Amp: 130
    Pulley dist.: 73.00
    Width/holder arm: 51.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 47
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 56.50
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 89.00
    B+: M6
    Position/B+ in min.: 45
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL122
    Total length mm: 180.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Chevrolet
    Remarks: Replacing: AD244.

    Files

  • Suitable for these vehicles

    • OEM
      F032112853, 321-1749, 10464405, 10480234, 10480390, 10754097, 15750871, 15768830

    • Normalised article numbler
      a1069s, adr0217, alt1500, cal12111, f032112853, f042300174, f042300177, f042a00174, f042a00177, 8237, 8237r, 8274, 8292n, 553188ri, 1222121dr, 1241901dr, 1241921dr, 3211749, 10464405, 10480234, 10480390, 10754097, 15750871, 15768830
