Article no.: F032112880

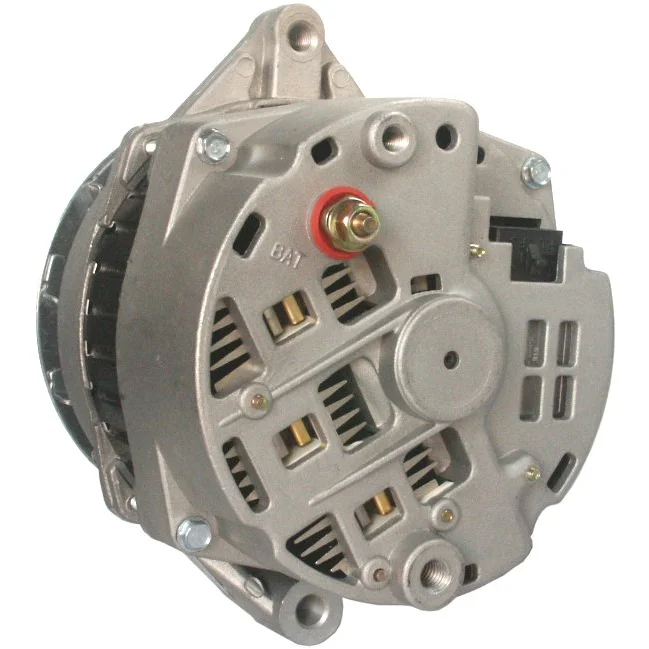

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Pulley dia.: 56.70, Radius: 88.00

Description

Voltage: 14
Amp: 120
Pulley diameter: 79.00
Width/holder arm: 51.00
Bracket hole: 10.20
Belt tensioner bracket hole position: 60
Belt tensioner bracket hole 1: M10
Pulley dia.: 56.70
Grooves/pulley: 6
Radius: 88.00
Radius 2: 94.00
B+: M6
Position/B+ in min.: 53
D+ Size: Plug
Plug no.: PL44
Total length mm: 186.00
Pulley: SP
Alternator type: IR
Servicing: Cadillac
Remarks: Replacing: CS144.

Files

  • OEM
    F032112880, 321-275, 321-367, 1101239, 1101296, 1101329, 1101518, 1105657, 10463069, 10497111

  • Normalised article numbler
    a17522, adr0070, al623x, da001242, drz0155, f032112880, 3524, 7150, 7806n, 7806r, 20399, 78062, 134603h, 291275, 321275, 321367, 1101239, 1101296, 1101329, 1101518, 1105657, 1168112dr, 1168311dr, 2017611, 10463069, 10497111, 90013192, 835054120
  • Description
    Voltage: 14
    Amp: 120
    Pulley diameter: 79.00
    Width/holder arm: 51.00
    Bracket hole: 10.20
    Belt tensioner bracket hole position: 60
    Belt tensioner bracket hole 1: M10
    Pulley dia.: 56.70
    Grooves/pulley: 6
    Radius: 88.00
    Radius 2: 94.00
    B+: M6
    Position/B+ in min.: 53
    D+ Size: Plug
    Plug no.: PL44
    Total length mm: 186.00
    Pulley: SP
    Alternator type: IR
    Servicing: Cadillac
    Remarks: Replacing: CS144.

    Files

  • Suitable for these vehicles

    • OEM
      F032112880, 321-275, 321-367, 1101239, 1101296, 1101329, 1101518, 1105657, 10463069, 10497111

    • Normalised article numbler
      a17522, adr0070, al623x, da001242, drz0155, f032112880, 3524, 7150, 7806n, 7806r, 20399, 78062, 134603h, 291275, 321275, 321367, 1101239, 1101296, 1101329, 1101518, 1105657, 1168112dr, 1168311dr, 2017611, 10463069, 10497111, 90013192, 835054120
