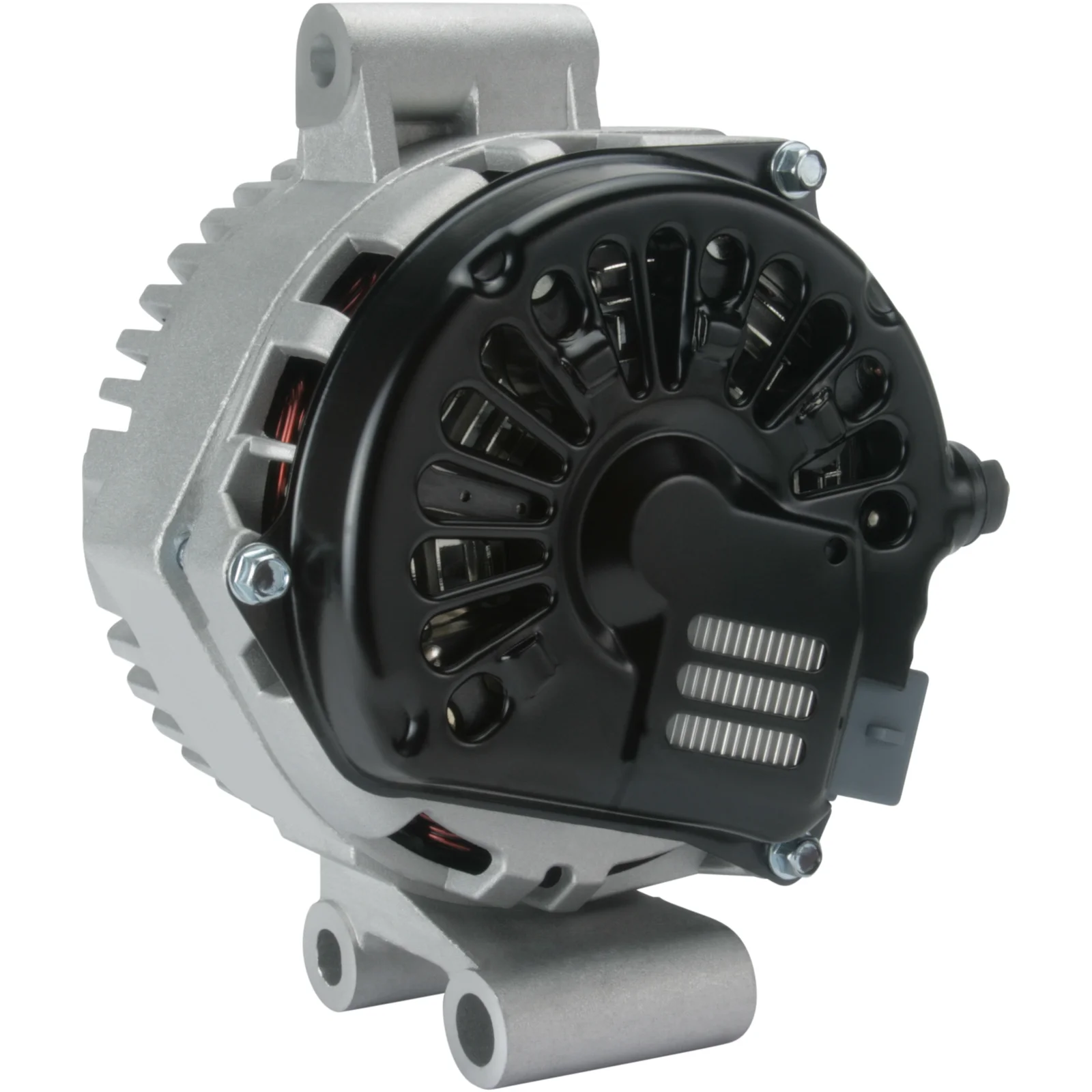

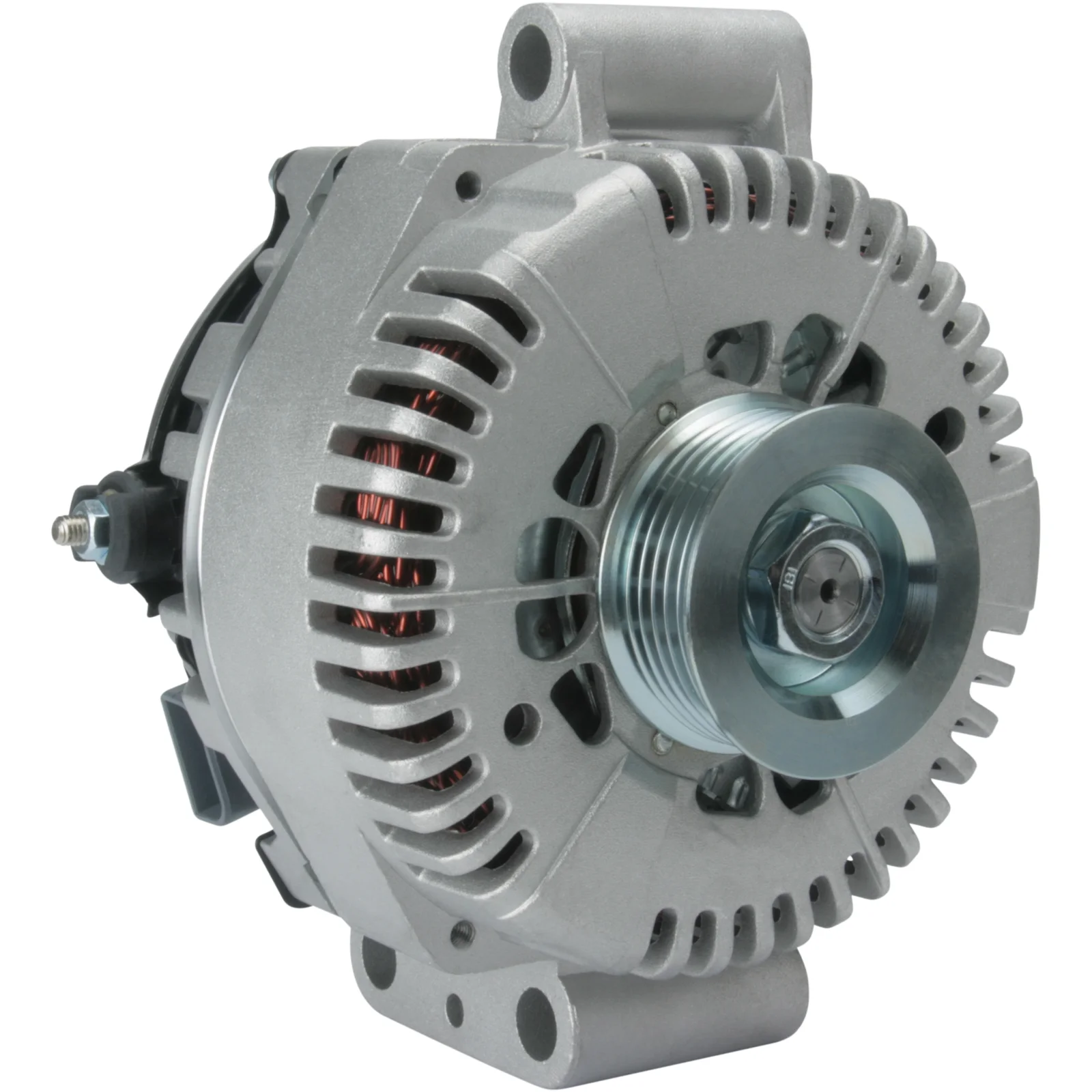

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112946

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 130, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 130
Pulley dist.: 39.50
Width/holder arm: 55.50
Mount. bracket dist.: 56.00
Bracket hole: 13.30
Bracket hole 2: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 59.00
Grooves/pulley: 6
B+: M6
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL120
Total length mm: 132.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Ford
Remarks: Replacing: 4G series

Files

  • OEM
    F032112946, F77U10300AB, F77U10300AD, F77Z10346AB, GL363, gl423, GL423RM, xl2u10300aa, XL2Z10346AA, 1l2210300ab, 1l2u10300aa, 1l2u10300ab

  • Normalised article numbler
    a9355s, afd0045, ag00404r, al7543x, alt1905, f032112946, f042304076, f042a04076, f77u10300ab, f77u10300ad, f77z10346ab, gl363, gl423, gl423rm, xl2u10300aa, xl2z10346aa, 1l2210300ab, 1l2u10300aa, 1l2u10300ab, 7668, 7787, 7787n6g1, 7787n6g2, 7787r6g1, 7787r6g2, 23650, 292169, 1202420fd, 1202421fd, 1202422fd, 12090330, 90025086
  • Description
    Voltage: 14
    Amp: 130
    Pulley dist.: 39.50
    Width/holder arm: 55.50
    Mount. bracket dist.: 56.00
    Bracket hole: 13.30
    Bracket hole 2: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 59.00
    Grooves/pulley: 6
    B+: M6
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL120
    Total length mm: 132.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Ford
    Remarks: Replacing: 4G series

    Files

  • Suitable for these vehicles

    • OEM
      F032112946, F77U10300AB, F77U10300AD, F77Z10346AB, GL363, gl423, GL423RM, xl2u10300aa, XL2Z10346AA, 1l2210300ab, 1l2u10300aa, 1l2u10300ab

    • Normalised article numbler
      a9355s, afd0045, ag00404r, al7543x, alt1905, f032112946, f042304076, f042a04076, f77u10300ab, f77u10300ad, f77z10346ab, gl363, gl423, gl423rm, xl2u10300aa, xl2z10346aa, 1l2210300ab, 1l2u10300aa, 1l2u10300ab, 7668, 7787, 7787n6g1, 7787n6g2, 7787r6g1, 7787r6g2, 23650, 292169, 1202420fd, 1202421fd, 1202422fd, 12090330, 90025086
