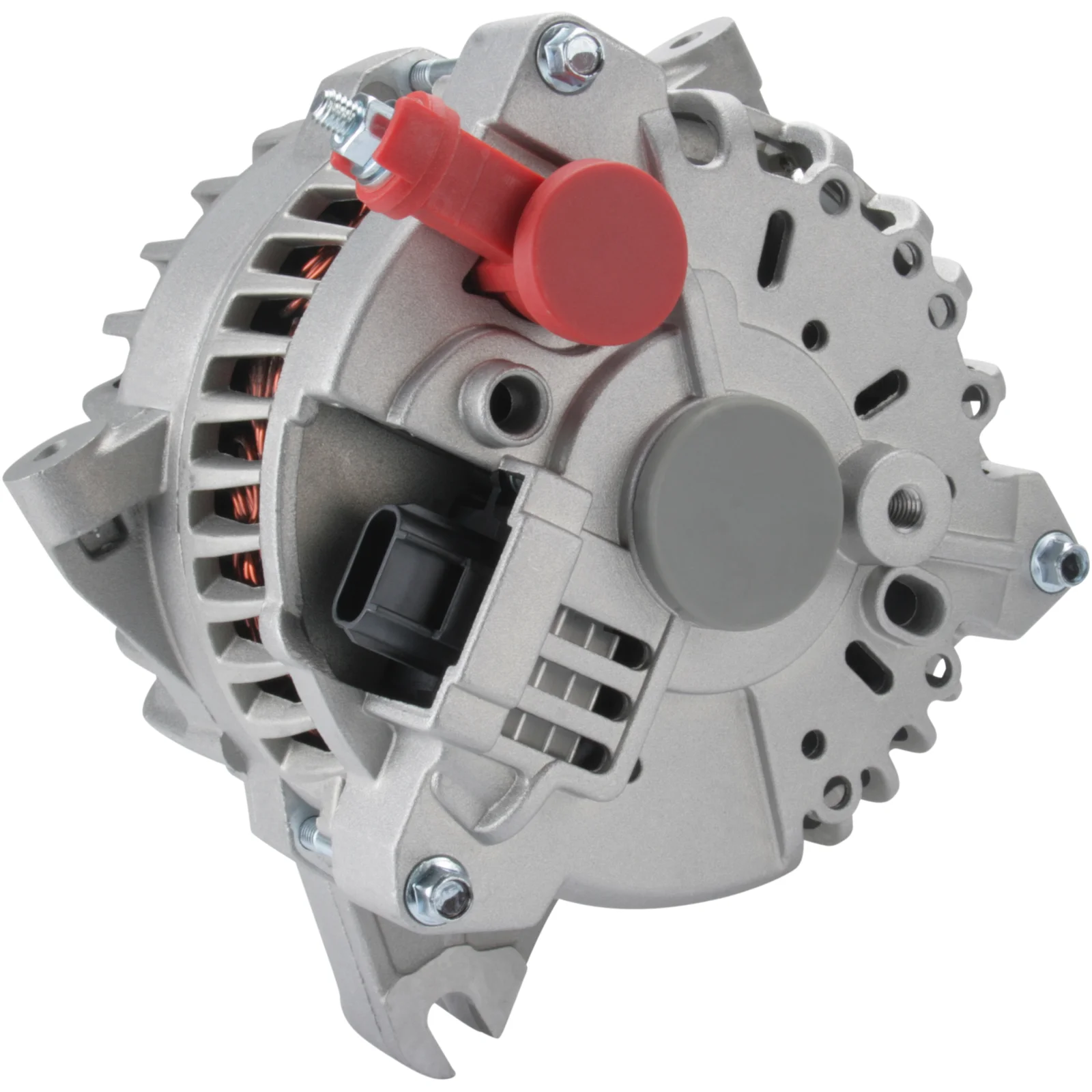

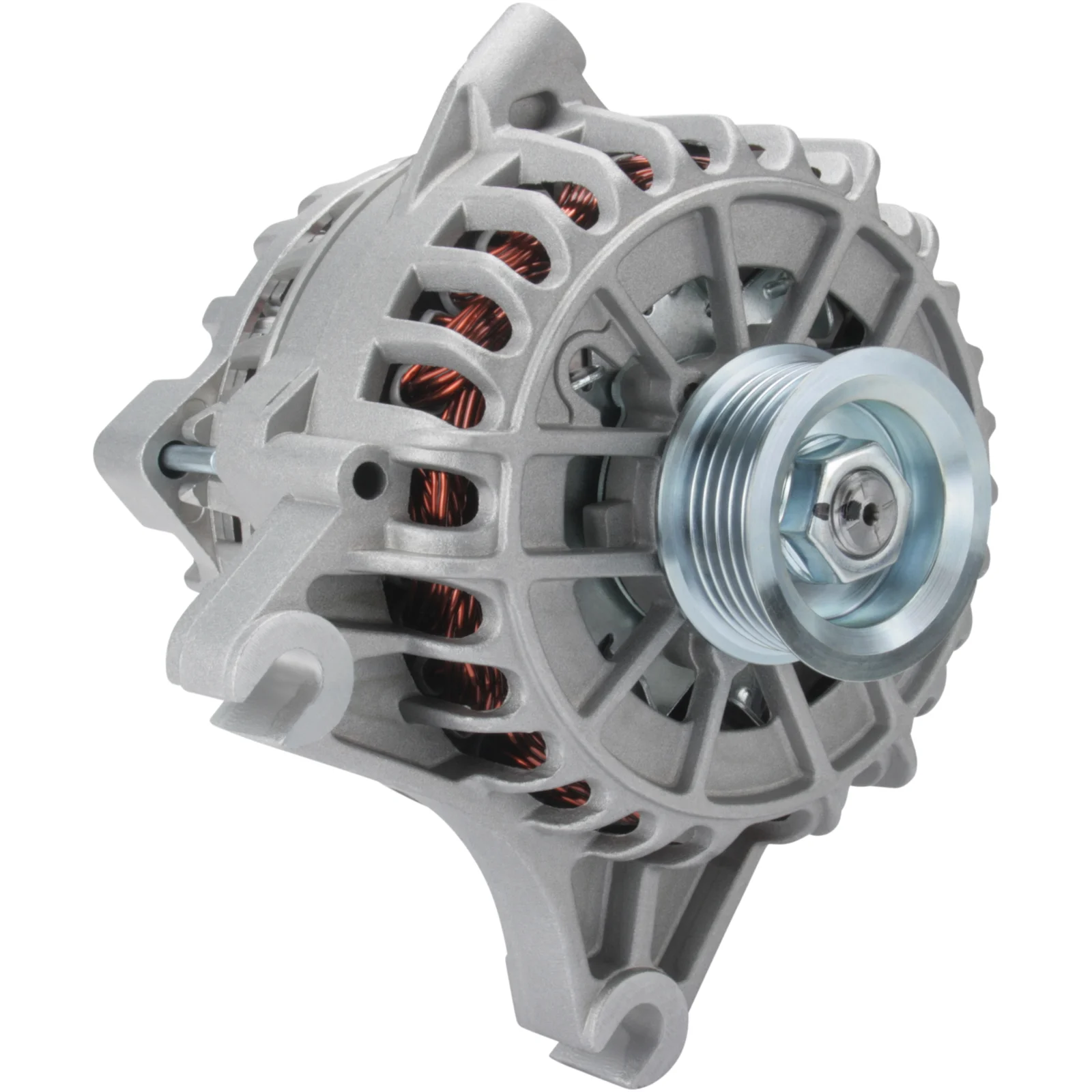

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112947

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 135, Rotation: CW, Pulley diameter: 56.70

Description

Voltage: 14
Amp: 135
Pulley dist.: 49.30
Width/holder arm: 25.70
Bracket hole: 10.30
Belt. adj. bracket hole position.: 42
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 56.70
Grooves/pulley: 6
Radius: 105.50
Radius 2: 100.00
B+: M6
Position/B+ in min.: 52
D+ Size: Plug
Rotation: CW
Plug no.: PL117
Total length mm: 164.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Lincoln
Remarks: Replacing: 6G series

Files

  • OEM
    F032112947, F8AU10300AB, F8AU10300AC, F8AU10300AD, F8AZ10346AB, GL407

  • Normalised article numbler
    a9340s, afd0050, ag00460r, alt1721, cal14116, f032112947, f042205009, f042304043, f042a04043, f8au10300ab, f8au10300ac, f8au10300ad, f8az10346ab, gl407, 7713, 7795, 7795n, 7795r, 23681, 553079ri, 1215831fd, 1215831fd1, 1215831fd2, 90025093
  • Description
    Voltage: 14
    Amp: 135
    Pulley dist.: 49.30
    Width/holder arm: 25.70
    Bracket hole: 10.30
    Belt. adj. bracket hole position.: 42
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 56.70
    Grooves/pulley: 6
    Radius: 105.50
    Radius 2: 100.00
    B+: M6
    Position/B+ in min.: 52
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL117
    Total length mm: 164.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Lincoln
    Remarks: Replacing: 6G series

    Files

  • Suitable for these vehicles

    • OEM
      F032112947, F8AU10300AB, F8AU10300AC, F8AU10300AD, F8AZ10346AB, GL407

    • Normalised article numbler
      a9340s, afd0050, ag00460r, alt1721, cal14116, f032112947, f042205009, f042304043, f042a04043, f8au10300ab, f8au10300ac, f8au10300ad, f8az10346ab, gl407, 7713, 7795, 7795n, 7795r, 23681, 553079ri, 1215831fd, 1215831fd1, 1215831fd2, 90025093
