HC-Cargo Alternator

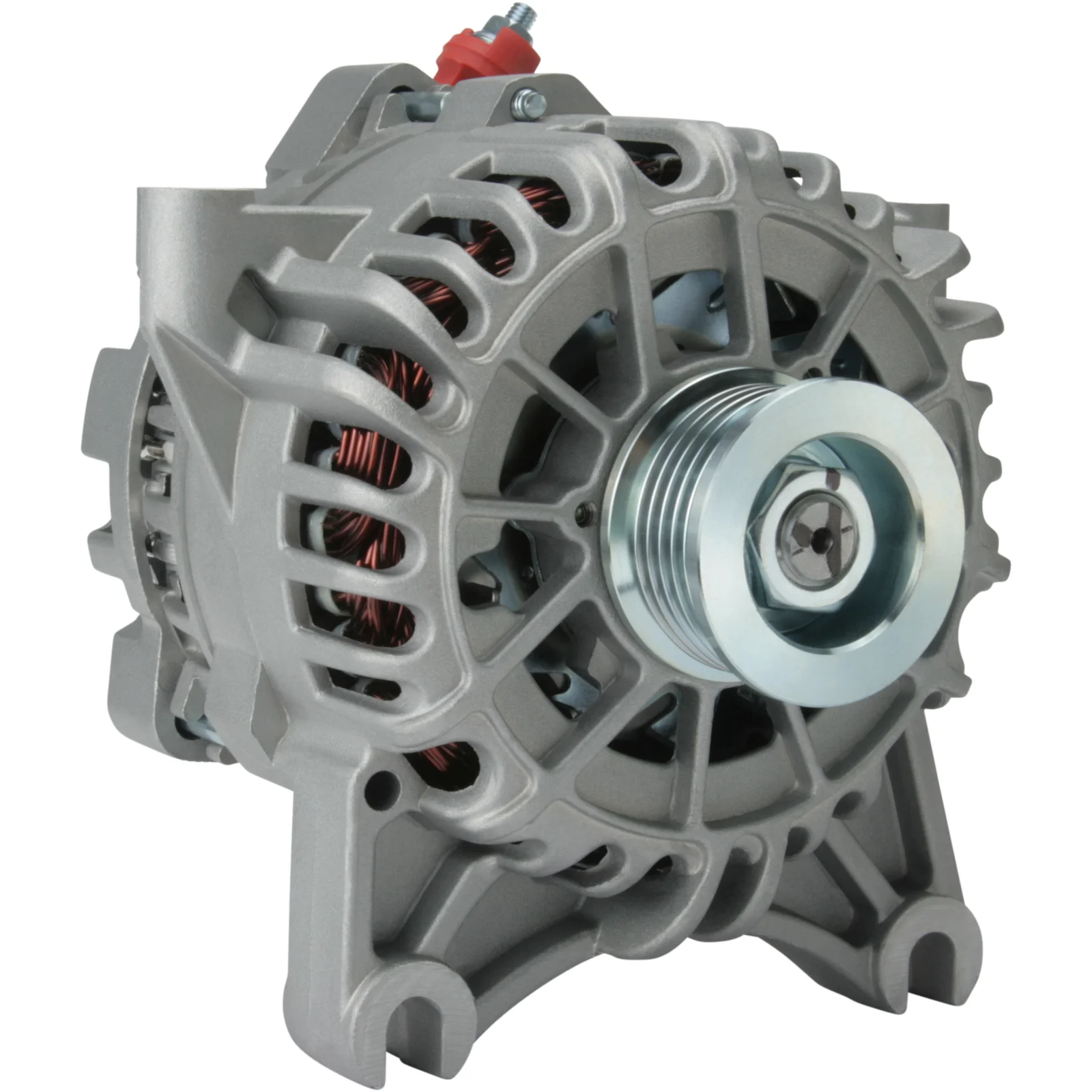

HC-Cargo Alternator
Article no.: F032112954

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 105, Rotation: CW, Pulley dia.: 48.50

Description

Voltage: 14
Amp: 105
Pulley distribution: 50.00
Width/holder arm: 25.50
Bracket hole: 9.80
Belt adjustment bracket hole position: 20
Belt adjustment bracket hole 1: 9.80
Pulley diameter: 48.50
Grove count/pulley: 6
Radius: 98.00
Radius 2: 105.50
B+: M6
Position/B+ in minutes: 2
D+ Size: Plug
Rotation: CW
Plug number: PL117
Total length mm: 165.00
Pulley: SP
Voltage regulator type: IR
Product information: BN
Servicing: Ford
Remarks: Replacing: 6G series

Files

  • OEM
    F032112954, gl424, GL424RM, XR3U10300AA, XR3U10300AB, XR3U10300AC, XR3Z10346AA

  • Normalised article numbler
    afd0059, ag00461r, alt1606, f032112954, gl424, gl424rm, xr3u10300aa, xr3u10300ab, xr3u10300ac, xr3z10346aa, 7728, 8252, 8252n, 8252r, 113434, 1226431fd
  • Description
    Voltage: 14
    Amp: 105
    Pulley distribution: 50.00
    Width/holder arm: 25.50
    Bracket hole: 9.80
    Belt adjustment bracket hole position: 20
    Belt adjustment bracket hole 1: 9.80
    Pulley diameter: 48.50
    Grove count/pulley: 6
    Radius: 98.00
    Radius 2: 105.50
    B+: M6
    Position/B+ in minutes: 2
    D+ Size: Plug
    Rotation: CW
    Plug number: PL117
    Total length mm: 165.00
    Pulley: SP
    Voltage regulator type: IR
    Product information: BN
    Servicing: Ford
    Remarks: Replacing: 6G series

    Files

  • Suitable for these vehicles

    • OEM
      F032112954, gl424, GL424RM, XR3U10300AA, XR3U10300AB, XR3U10300AC, XR3Z10346AA

    • Normalised article numbler
      afd0059, ag00461r, alt1606, f032112954, gl424, gl424rm, xr3u10300aa, xr3u10300ab, xr3u10300ac, xr3z10346aa, 7728, 8252, 8252n, 8252r, 113434, 1226431fd
