Article no.: F032112958

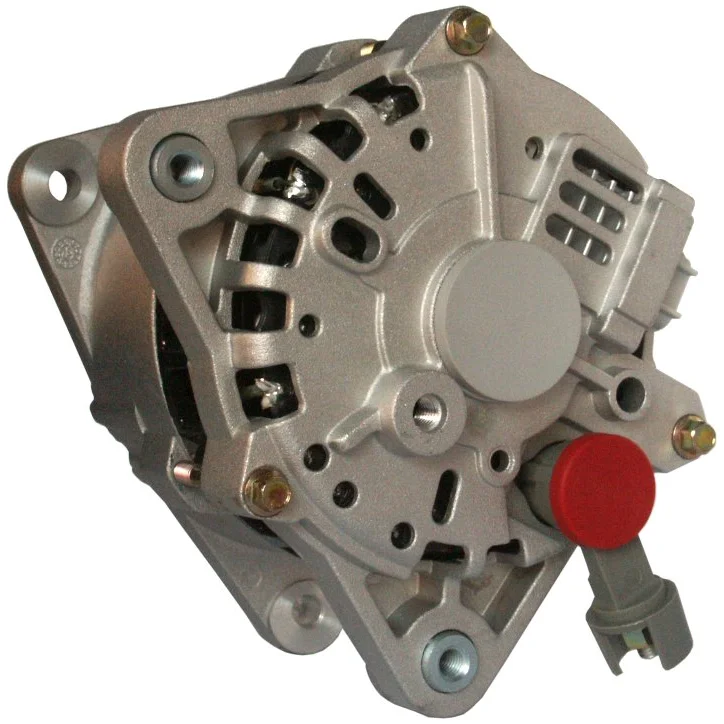

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 110, Rotation: CW, Mounting bracket distributor: 63.00

Description

Voltage: 14
Amp: 110
Pulley dist.: 34.50
Width/holder arm: 14.50
Mount. bracket dist.: 63.00
Bracket hole: 9.00
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: 9.00
Pulley dia.: 48.30
Grooves/pulley: 6
Radius: 83.50
Radius 2: 85.00
B+: M6
Position/B+ in min.: 6
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Total length mm: 165.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Ford
Remarks: Replacing: 6G series

Files

  • OEM
    F032112958, gl456, GL456RM, gl462, GL462RM, yf09-18-300, YF09-18-300A, 1l8u10300ab, 1L8U10300AC, 1L8U10300BB, 1L8UAC, 1L8Z10346AB, 1s4110300aa, 1S41AA, 98ab10300eb, 98az10346ea, 98AZ10346EARM, 98az10346en, 1125620

  • Normalised article numbler
    a9354s, alt1616, cal14117, dra0066, f032112958, f042304011, f042a04011, gl456, gl456rm, gl462, gl462rm, lea0595, lra02555, yf0918300, yf0918300a, 1l8u10300ab, 1l8u10300ac, 1l8u10300bb, 1l8uac, 1l8z10346ab, 1s4110300aa, 1s41aa, 98ab10300eb, 98az10346ea, 98az10346earm, 98az10346en, 8260, 8260n, 8260r, 8264, 23725, 210413, 210413a, 274899, 553414ri, 1125620, 1234901fd, 1234901fd2, 12060886, 2241681102
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 34.50
    Width/holder arm: 14.50
    Mount. bracket dist.: 63.00
    Bracket hole: 9.00
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: 9.00
    Pulley dia.: 48.30
    Grooves/pulley: 6
    Radius: 83.50
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 6
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL57
    Total length mm: 165.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Ford
    Remarks: Replacing: 6G series

    Files

  • Suitable for these vehicles

    • OEM
      F032112958, gl456, GL456RM, gl462, GL462RM, yf09-18-300, YF09-18-300A, 1l8u10300ab, 1L8U10300AC, 1L8U10300BB, 1L8UAC, 1L8Z10346AB, 1s4110300aa, 1S41AA, 98ab10300eb, 98az10346ea, 98AZ10346EARM, 98az10346en, 1125620

    • Normalised article numbler
      a9354s, alt1616, cal14117, dra0066, f032112958, f042304011, f042a04011, gl456, gl456rm, gl462, gl462rm, lea0595, lra02555, yf0918300, yf0918300a, 1l8u10300ab, 1l8u10300ac, 1l8u10300bb, 1l8uac, 1l8z10346ab, 1s4110300aa, 1s41aa, 98ab10300eb, 98az10346ea, 98az10346earm, 98az10346en, 8260, 8260n, 8260r, 8264, 23725, 210413, 210413a, 274899, 553414ri, 1125620, 1234901fd, 1234901fd2, 12060886, 2241681102
