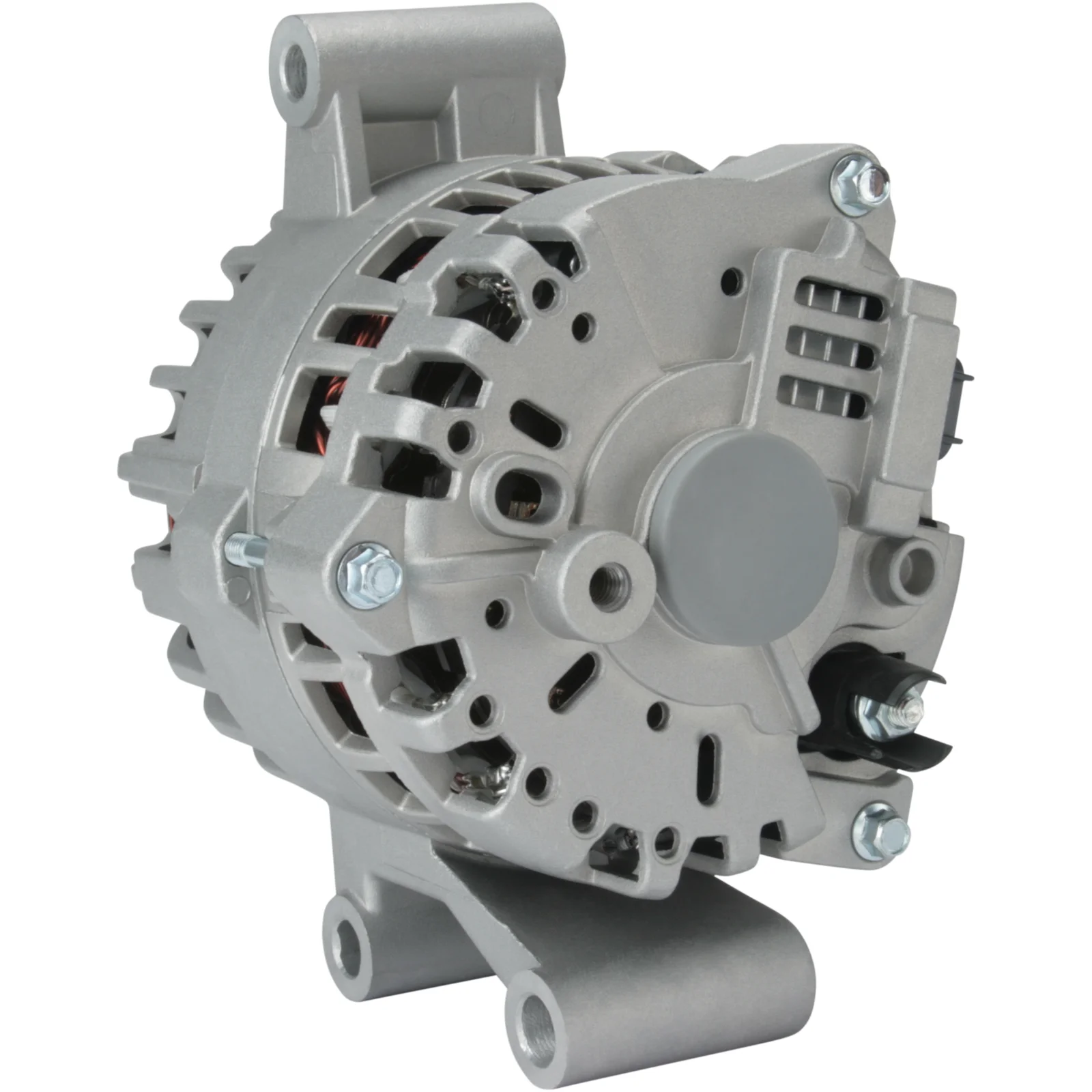

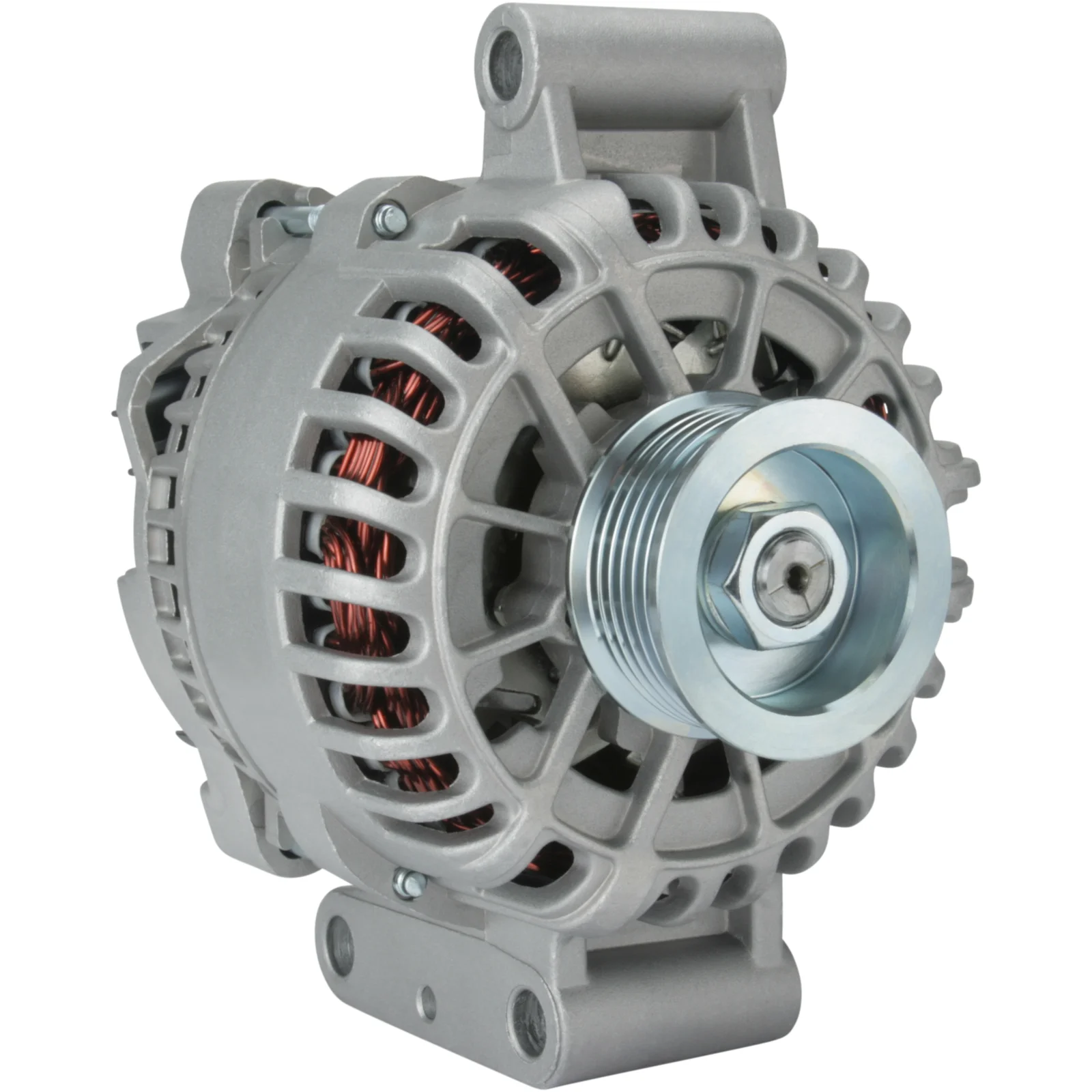

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112959

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 75.00

Description

Voltage: 14
Amp: 110
Pulley dist.: 40.00
Width/holder arm: 55.00
Mounting bracket dist.: 75.00
Bracket hole: 13.20
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 12.70
Pulley diameter: 56.60
Grooves/pulley: 6
B+: M6
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Total length mm: 162.50
Pulley: Synchronous pulley
Regulator type: Internal resistance
Prod. info: BN
Servicing: Ford
Remarks: Replacing: 6G series

Files

  • OEM
    F032112959, gl455, GL455RM, 98AB10300FC, 98AZ10346FA

  • Normalised article numbler
    a9359s, afd0061, alt1608, f032112959, f042304007, f042a04007, gl455, gl455rm, 98ab10300fc, 98az10346fa, 8261, 8447n, 1235011fd, 1235011fd2
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 40.00
    Width/holder arm: 55.00
    Mounting bracket dist.: 75.00
    Bracket hole: 13.20
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 12.70
    Pulley diameter: 56.60
    Grooves/pulley: 6
    B+: M6
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL57
    Total length mm: 162.50
    Pulley: Synchronous pulley
    Regulator type: Internal resistance
    Prod. info: BN
    Servicing: Ford
    Remarks: Replacing: 6G series

    Files

  • Suitable for these vehicles

    • OEM
      F032112959, gl455, GL455RM, 98AB10300FC, 98AZ10346FA

    • Normalised article numbler
      a9359s, afd0061, alt1608, f032112959, f042304007, f042a04007, gl455, gl455rm, 98ab10300fc, 98az10346fa, 8261, 8447n, 1235011fd, 1235011fd2
