HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112961

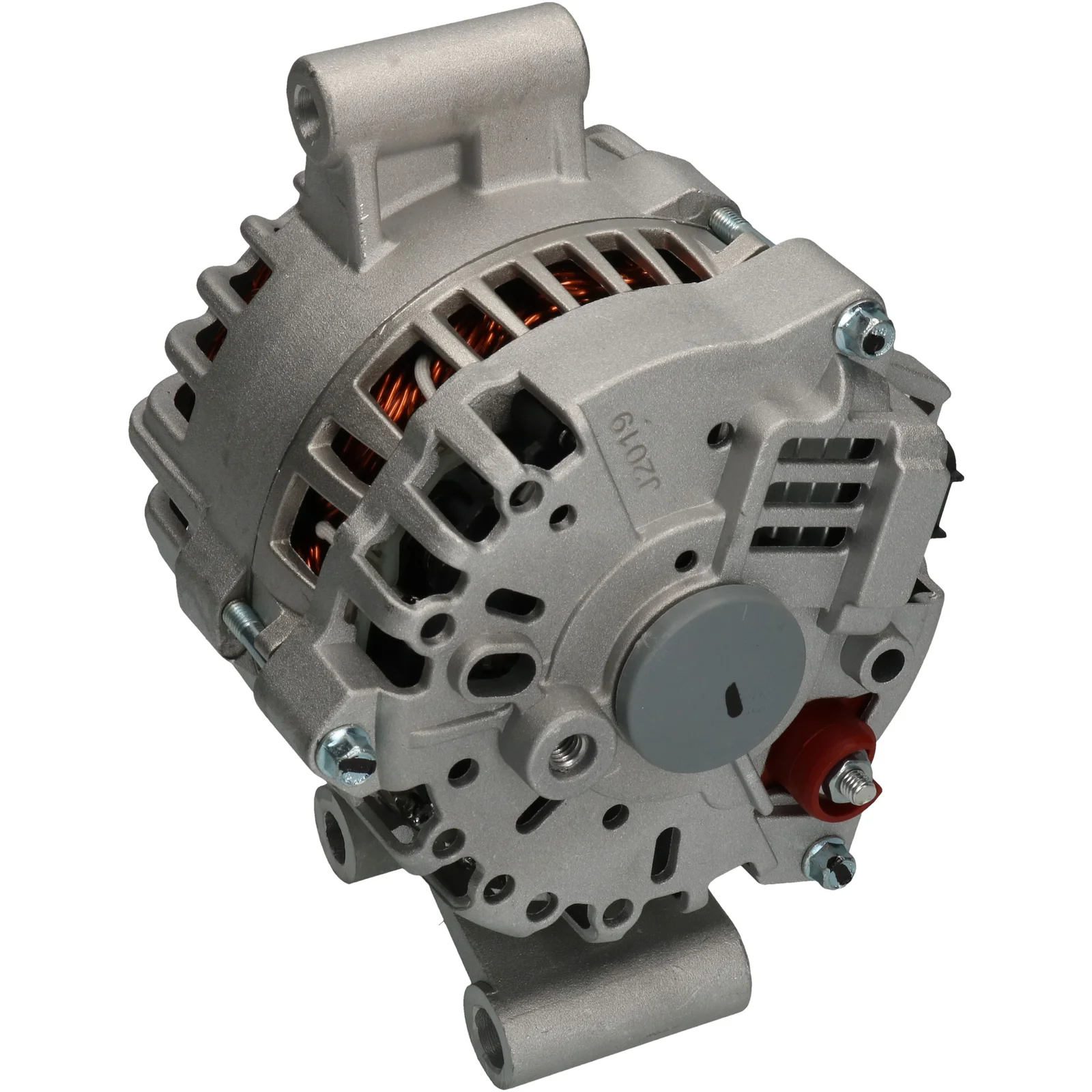

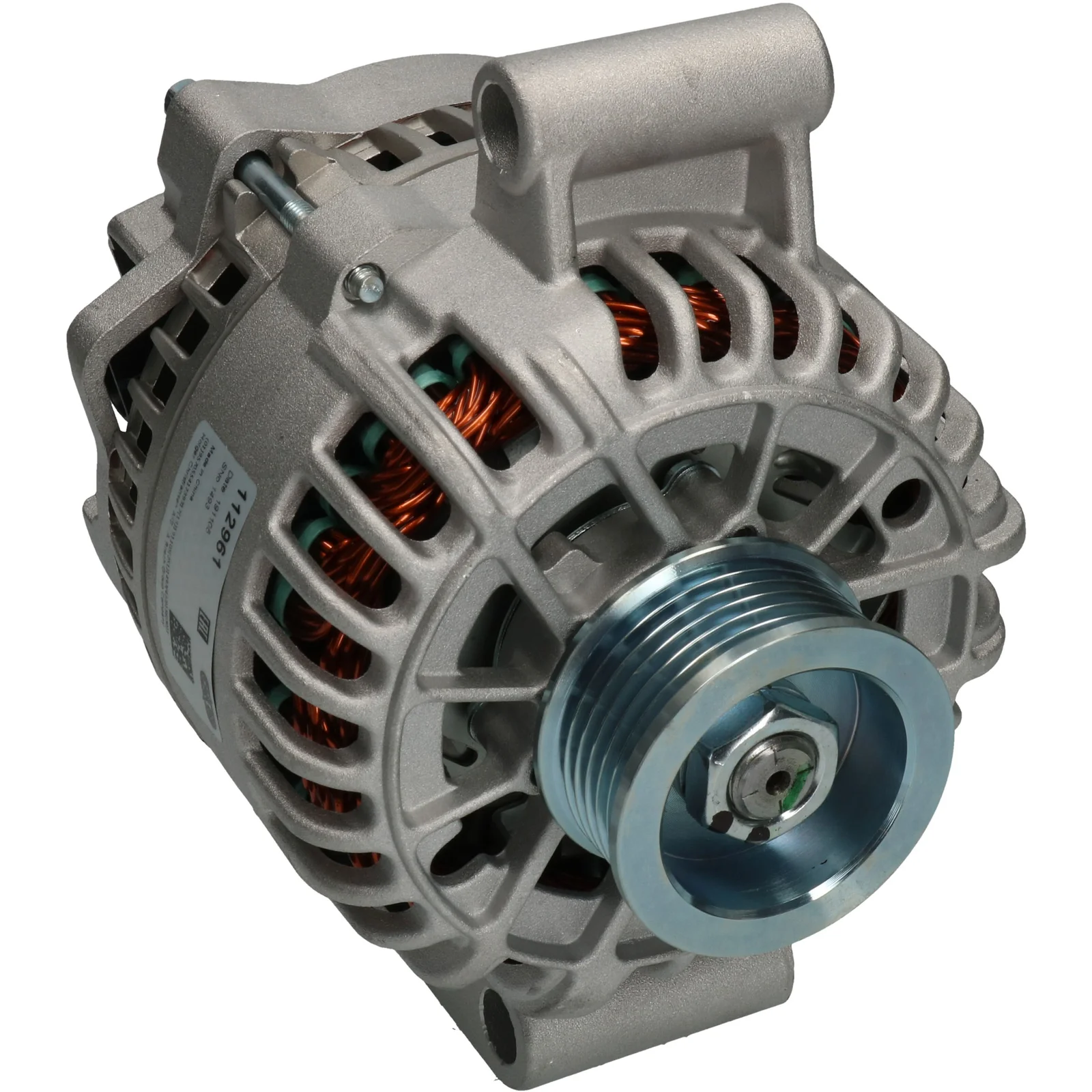

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 110, Rotation: CW, Mounting bracket distributor: 74.00

Description

Voltage: 14
Amp: 110
Pulley dist.: 40.50
Width/holder arm: 55.20
Mounting bracket dist.: 74.00
Bracket hole: 10.50
Bracket hole 2: 12.40
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: 10.20
Pulley diameter: 56.50
Grooves/pulley: 6
B+: M6
Position/B+ in min.: 22
D+ Size: Plug
Rotation: CW
Plug no.: PL116
Total length mm: 163.00
Pulley: SP
Regulator type: IR
Product info: BN
Servicing: Ford
Remarks: Replacing: 6G series

Files

  • OEM
    aj03-18-300a, AJ03-18-300B, F032112961, gl463, xs7110300fe, 1L8U10300CD, 1L8U10300CE, 1L8U10300DD, 1L8U10300DE, 1L8UDE, 1L8Z10346CB, 5L8U10300AA, 1127506

  • Normalised article numbler
    a9353s, afd0073, aj0318300a, aj0318300b, alt1607, cal14120, dra0557, f032112961, f042304006, f042a04006, gl463, xs7110300fe, 1l8u10300cd, 1l8u10300ce, 1l8u10300dd, 1l8u10300de, 1l8ude, 1l8z10346cb, 5l8u10300aa, 8259, 8259n, 8259r, 23726, 285553, 553383ri, 1127506, 1241411fd, 1241411fd2, 12090228
  • Description
    Voltage: 14
    Amp: 110
    Pulley dist.: 40.50
    Width/holder arm: 55.20
    Mounting bracket dist.: 74.00
    Bracket hole: 10.50
    Bracket hole 2: 12.40
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: 10.20
    Pulley diameter: 56.50
    Grooves/pulley: 6
    B+: M6
    Position/B+ in min.: 22
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL116
    Total length mm: 163.00
    Pulley: SP
    Regulator type: IR
    Product info: BN
    Servicing: Ford
    Remarks: Replacing: 6G series

    Files

  • Suitable for these vehicles

    • OEM
      aj03-18-300a, AJ03-18-300B, F032112961, gl463, xs7110300fe, 1L8U10300CD, 1L8U10300CE, 1L8U10300DD, 1L8U10300DE, 1L8UDE, 1L8Z10346CB, 5L8U10300AA, 1127506

    • Normalised article numbler
      a9353s, afd0073, aj0318300a, aj0318300b, alt1607, cal14120, dra0557, f032112961, f042304006, f042a04006, gl463, xs7110300fe, 1l8u10300cd, 1l8u10300ce, 1l8u10300dd, 1l8u10300de, 1l8ude, 1l8z10346cb, 5l8u10300aa, 8259, 8259n, 8259r, 23726, 285553, 553383ri, 1127506, 1241411fd, 1241411fd2, 12090228
