HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032112995

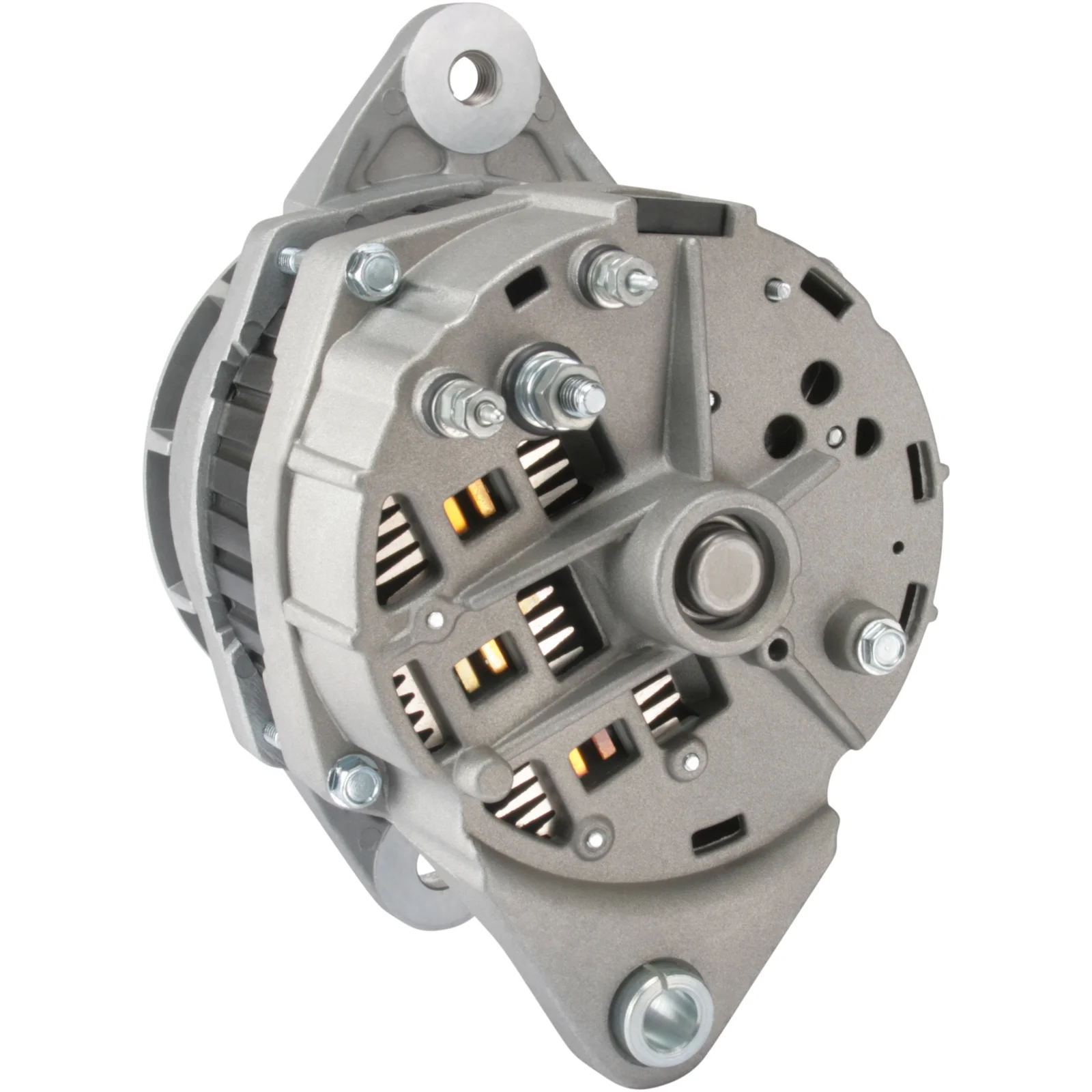

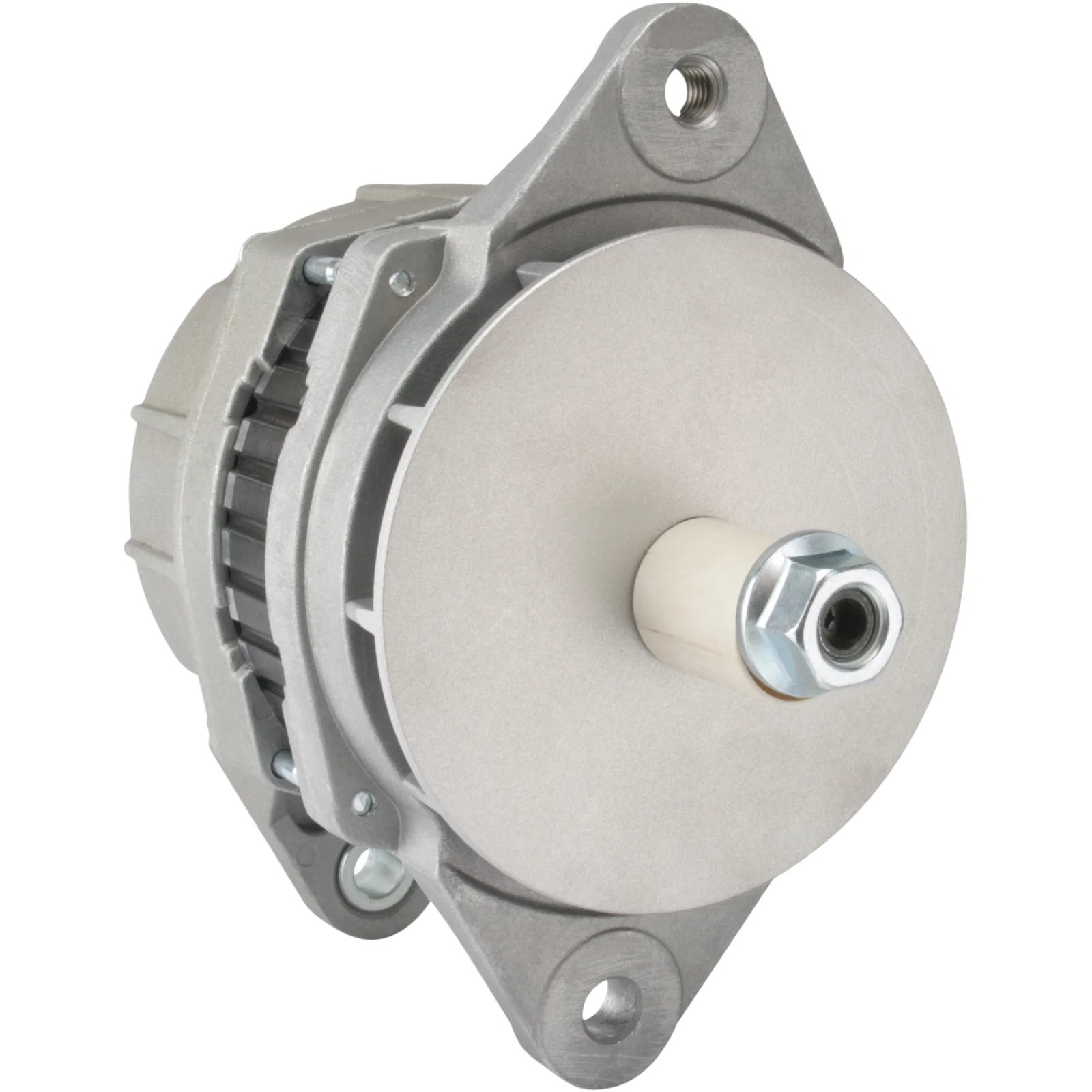

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 145, Mounting bracket distributor: 101.00, Radius: 99.00

Description

Voltage: 14
Amp: 145
Terminal: W
Width/holder arm: 14.00
Mounting bracket dist.: 101.00
Bracket hole: 13.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: 1/2" UNC
Radius: 99.00
Radius 2: 99.00
B+: M8
Position/B+ in min.: 53
Total length mm: 217.00
Pulley: w/o
Voltage regulator type: IR
Product info: BN
Servicing: Kenworth
Remarks: Replacing: 21SI. Negative grounding. One-wire system. B+: 5/16".

Files

  • OEM
    F032112995, 1117909, 1117910, 1117917, 1117919, 1117920, 1117921, 1117922, 1117923, 1117934, 1117963, 1117964, 19010115, 19010126, 19010127, 19010128, 19010139, 19010168, 19010202

  • Normalised article numbler
    a1023, a1359, adr0046, alt22006, drz0191, f032112995, 7504, 7685, 8022, 20154, 201541, 1117909, 1117910, 1117917, 1117919, 1117920, 1117921, 1117922, 1117923, 1117934, 1117963, 1117964, 1233400dr, 1233400dr1, 1233400dr2, 19010115, 19010126, 19010127, 19010128, 19010139, 19010168, 19010202, 90014109
  • Description
    Voltage: 14
    Amp: 145
    Terminal: W
    Width/holder arm: 14.00
    Mounting bracket dist.: 101.00
    Bracket hole: 13.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: 1/2" UNC
    Radius: 99.00
    Radius 2: 99.00
    B+: M8
    Position/B+ in min.: 53
    Total length mm: 217.00
    Pulley: w/o
    Voltage regulator type: IR
    Product info: BN
    Servicing: Kenworth
    Remarks: Replacing: 21SI. Negative grounding. One-wire system. B+: 5/16".

    Files

  • Suitable for these vehicles

    • OEM
      F032112995, 1117909, 1117910, 1117917, 1117919, 1117920, 1117921, 1117922, 1117923, 1117934, 1117963, 1117964, 19010115, 19010126, 19010127, 19010128, 19010139, 19010168, 19010202

    • Normalised article numbler
      a1023, a1359, adr0046, alt22006, drz0191, f032112995, 7504, 7685, 8022, 20154, 201541, 1117909, 1117910, 1117917, 1117919, 1117920, 1117921, 1117922, 1117923, 1117934, 1117963, 1117964, 1233400dr, 1233400dr1, 1233400dr2, 19010115, 19010126, 19010127, 19010128, 19010139, 19010168, 19010202, 90014109
