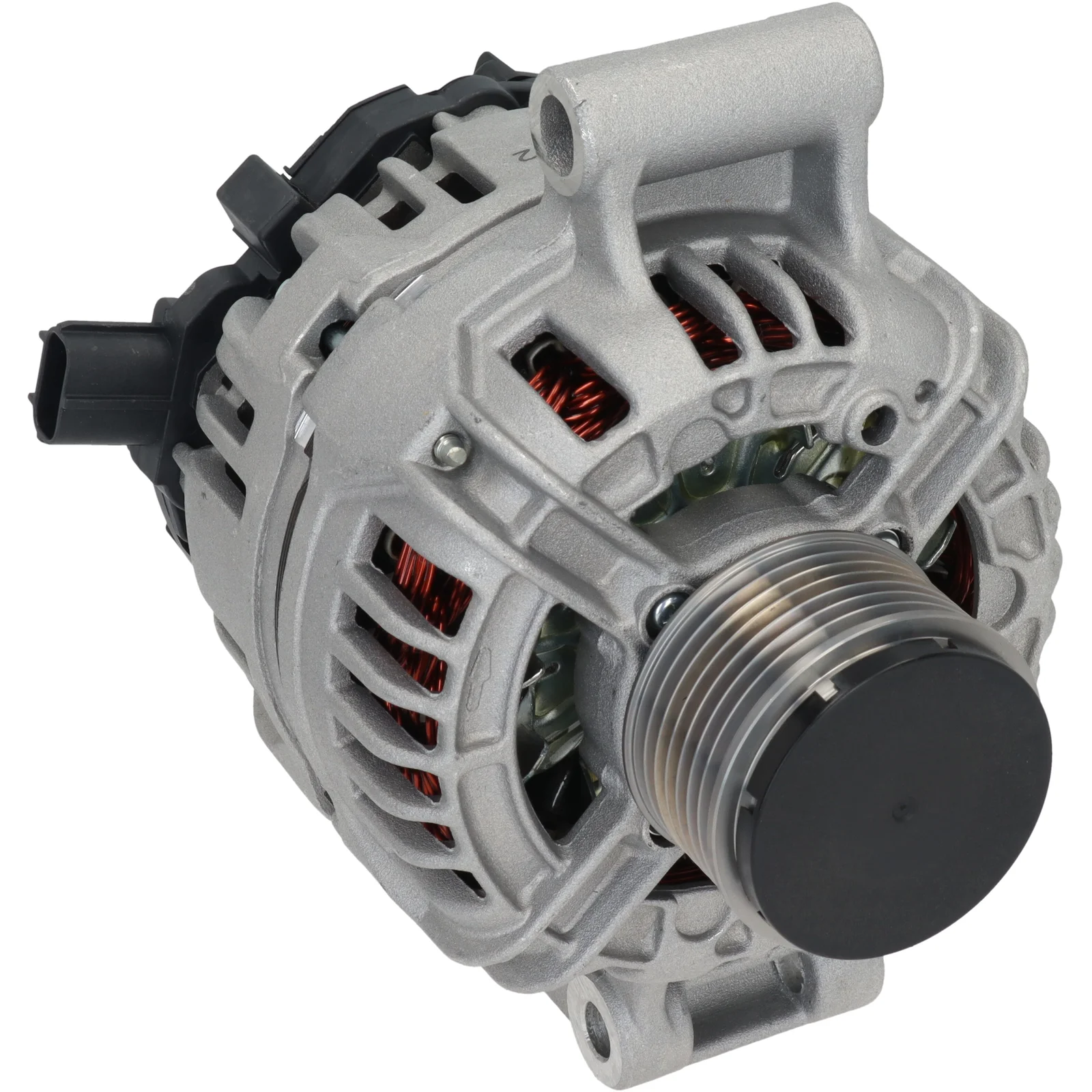

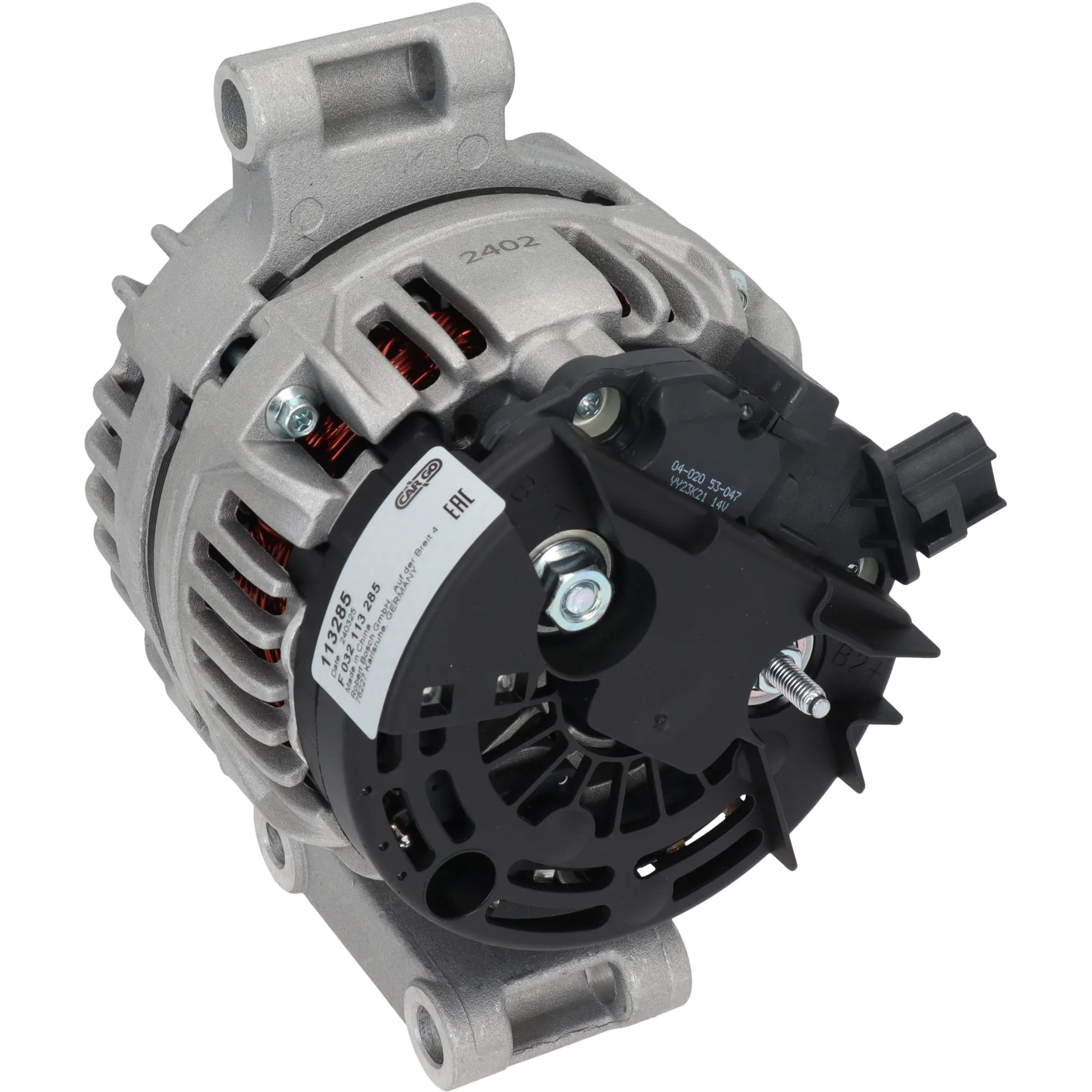

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113285

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 75, Rotation: CW, Mounting bracket distributor: 74.50

Description

Voltage: 14
Amp: 75
Pulley dist.: 38.60
Width/holder arm: 55.20
Mount. bracket dist.: 74.50
Bracket hole: 12.70
Bracket hole 2: 12.70
Belt. adj. bracket hole pos.: 60
Belt. adj. bracket hole 1: 12.00/12.50
Pulley dia.: 59.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 17
D+ Size: Plug
Rotation: CW
Plug no.: PL81
Total length mm: 218.50
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Servicing: Ford
Remarks: w/ single pulley: HC-CARGO 113544.

Files

  • OEM
    B120416351, F032113285, yc1t10300bb, yc1t10300bc, yc1t10300bd, yc1t10300be, yc1t10300bg, yc1t10300bh, yc1t10300bj, YC1U10300BB, yc1u10300da, yc1u10300db, YC1U10300DC, YC1U10300DE, 2C3U10300BB, 1639ir, 1516508R, 4069776, 4098414, 4332279, 0124315019, 0124315027, 0124315100

  • Normalised article numbler
    a0043, a0043p, a0043pr, a0043sr, a9021p, a9021p2, a9273sr, alt1815v, alt20008, b120416351, bao3269, bao3304, cal10228, drb2650, drb2650n, f032113285, f032ua0055, f042304065, f042304066, f042304067, f042a04066, lra03076, lrb00443, yc1t10300bb, yc1t10300bc, yc1t10300bd, yc1t10300be, yc1t10300bg, yc1t10300bh, yc1t10300bj, yc1u10300bb, yc1u10300da, yc1u10300db, yc1u10300dc, yc1u10300de, 2c3u10300bb, 8el011710591, 1639ir, 4047, 8316n, 8316r, 21890r, 21891n7g, 21891n7gl, 119870, 200297, 210278, 210278a, 283814, 283875, 283884, 285688, 301639ri, 437690, 746193, 746993, 1516508r, 4069776, 4098414, 4332279, 9042650, 12042650, 0124315019, 0124315027, 0124315100, 219150752, 219307752, 0986042650, 2191501002
  • Description
    Voltage: 14
    Amp: 75
    Pulley dist.: 38.60
    Width/holder arm: 55.20
    Mount. bracket dist.: 74.50
    Bracket hole: 12.70
    Bracket hole 2: 12.70
    Belt. adj. bracket hole pos.: 60
    Belt. adj. bracket hole 1: 12.00/12.50
    Pulley dia.: 59.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 17
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL81
    Total length mm: 218.50
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Servicing: Ford
    Remarks: w/ single pulley: HC-CARGO 113544.

    Files

  • Suitable for these vehicles

    • OEM
      B120416351, F032113285, yc1t10300bb, yc1t10300bc, yc1t10300bd, yc1t10300be, yc1t10300bg, yc1t10300bh, yc1t10300bj, YC1U10300BB, yc1u10300da, yc1u10300db, YC1U10300DC, YC1U10300DE, 2C3U10300BB, 1639ir, 1516508R, 4069776, 4098414, 4332279, 0124315019, 0124315027, 0124315100

    • Normalised article numbler
      a0043, a0043p, a0043pr, a0043sr, a9021p, a9021p2, a9273sr, alt1815v, alt20008, b120416351, bao3269, bao3304, cal10228, drb2650, drb2650n, f032113285, f032ua0055, f042304065, f042304066, f042304067, f042a04066, lra03076, lrb00443, yc1t10300bb, yc1t10300bc, yc1t10300bd, yc1t10300be, yc1t10300bg, yc1t10300bh, yc1t10300bj, yc1u10300bb, yc1u10300da, yc1u10300db, yc1u10300dc, yc1u10300de, 2c3u10300bb, 8el011710591, 1639ir, 4047, 8316n, 8316r, 21890r, 21891n7g, 21891n7gl, 119870, 200297, 210278, 210278a, 283814, 283875, 283884, 285688, 301639ri, 437690, 746193, 746993, 1516508r, 4069776, 4098414, 4332279, 9042650, 12042650, 0124315019, 0124315027, 0124315100, 219150752, 219307752, 0986042650, 2191501002
