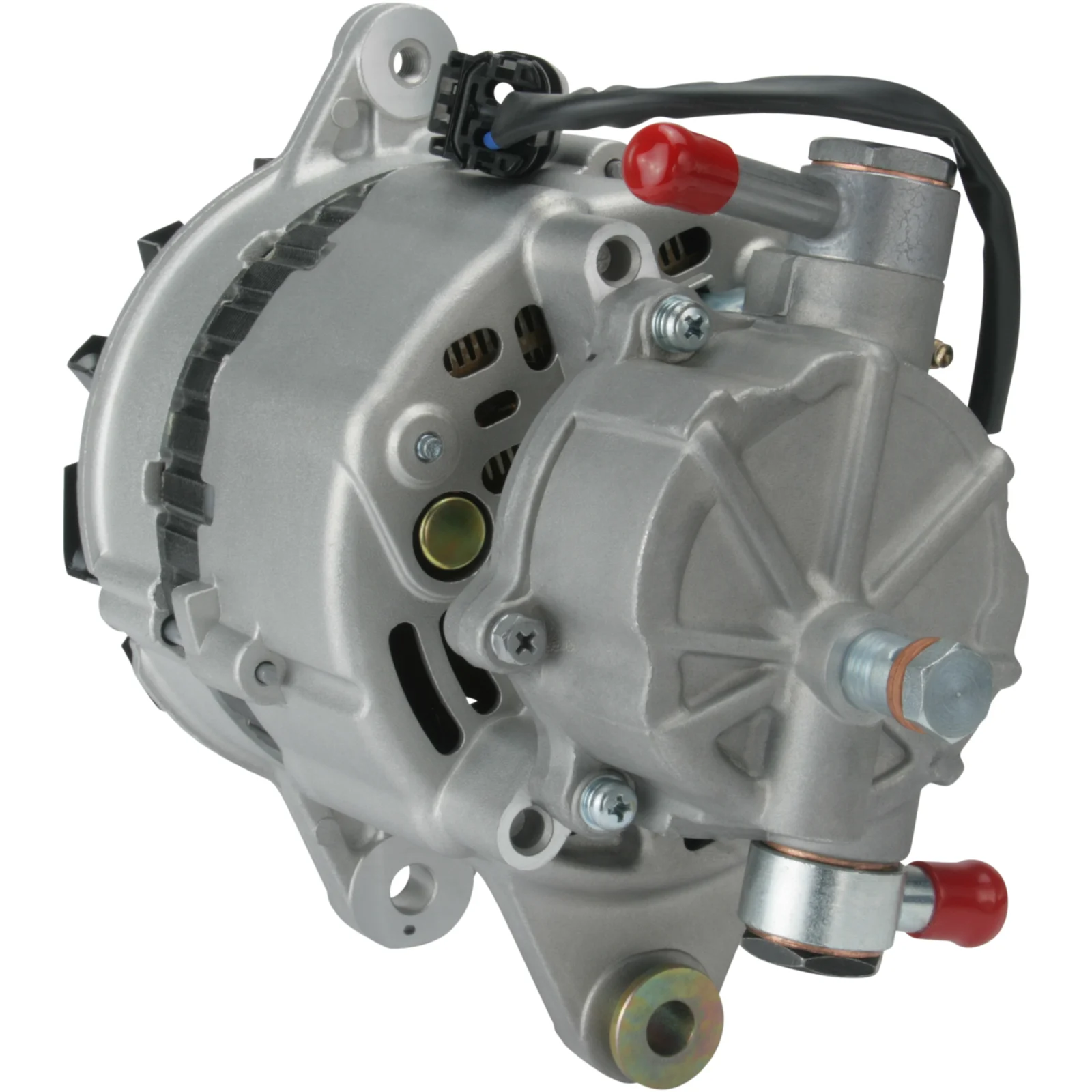

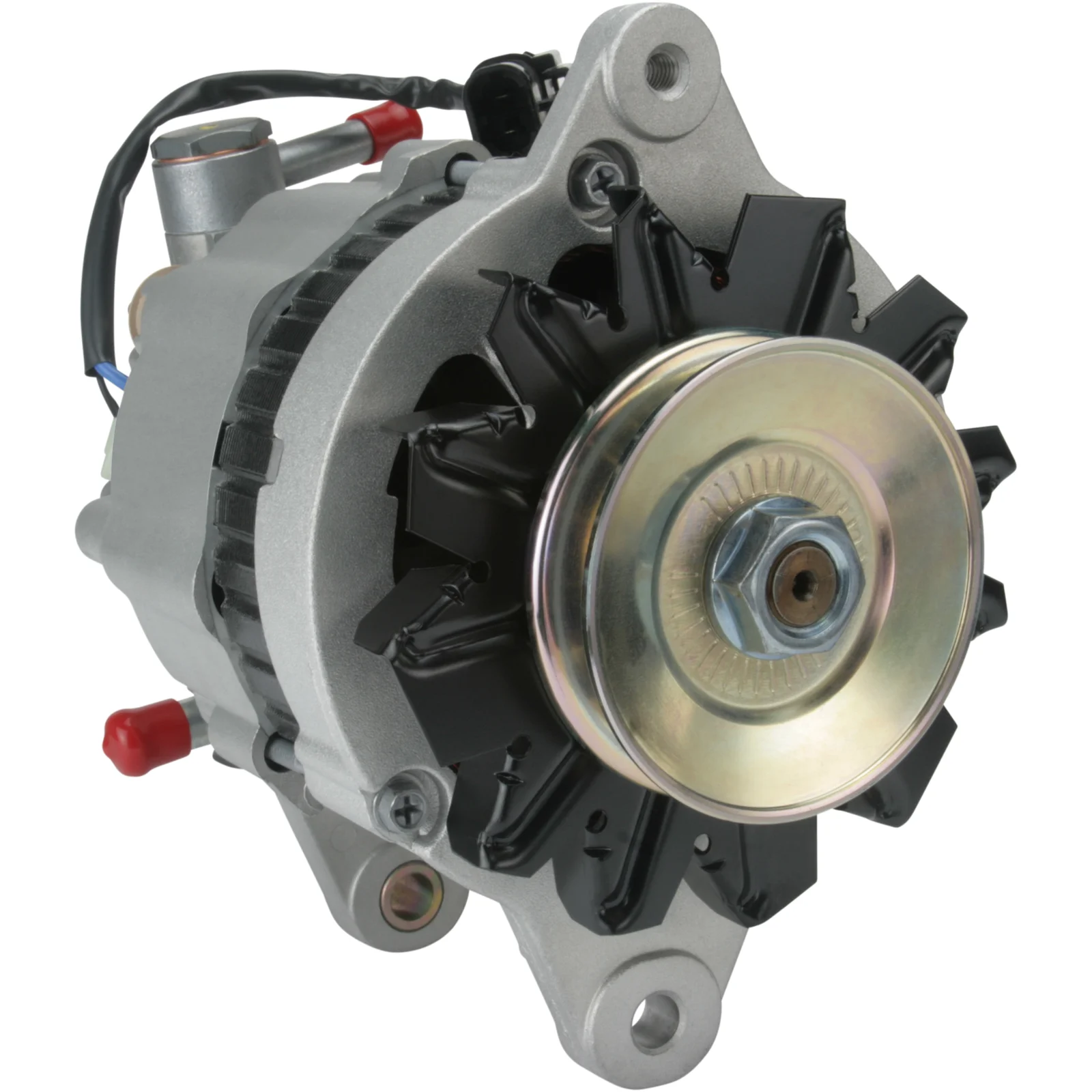

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113291

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Mount. bracket Alternator.: 80.00

Description

Voltage: 14
Amp: 55
Terminal: W
Pulley dist.: 39.30
Width/holder arm: 13.40
Mount. bracket dist.: 80.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 84.00
Grooves/pulley: 1
Radius: 89.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 10
D+ Size: M5
Rotation: CW
Plug no.: PL121
W plug type: 2.80
Total length mm: 231.00
Pulley: P
Regulator type: IR
Vacuum pump: Yes
Prod. info: BN
Servicing: Nissan

Files

  • OEM
    F032113291, ja1614ir, 6033gb4009

  • Normalised article numbler
    a0819s, dra4133, f032113291, ja1614ir, 8el737974001, 6033gb4009, 210455, 210455a, 12060915, 527117552, 0986081240
  • Description
    Voltage: 14
    Amp: 55
    Terminal: W
    Pulley dist.: 39.30
    Width/holder arm: 13.40
    Mount. bracket dist.: 80.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 84.00
    Grooves/pulley: 1
    Radius: 89.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 10
    D+ Size: M5
    Rotation: CW
    Plug no.: PL121
    W plug type: 2.80
    Total length mm: 231.00
    Pulley: P
    Regulator type: IR
    Vacuum pump: Yes
    Prod. info: BN
    Servicing: Nissan

    Files

  • Suitable for these vehicles

    • OEM
      F032113291, ja1614ir, 6033gb4009

    • Normalised article numbler
      a0819s, dra4133, f032113291, ja1614ir, 8el737974001, 6033gb4009, 210455, 210455a, 12060915, 527117552, 0986081240
