Article no.: F032113563

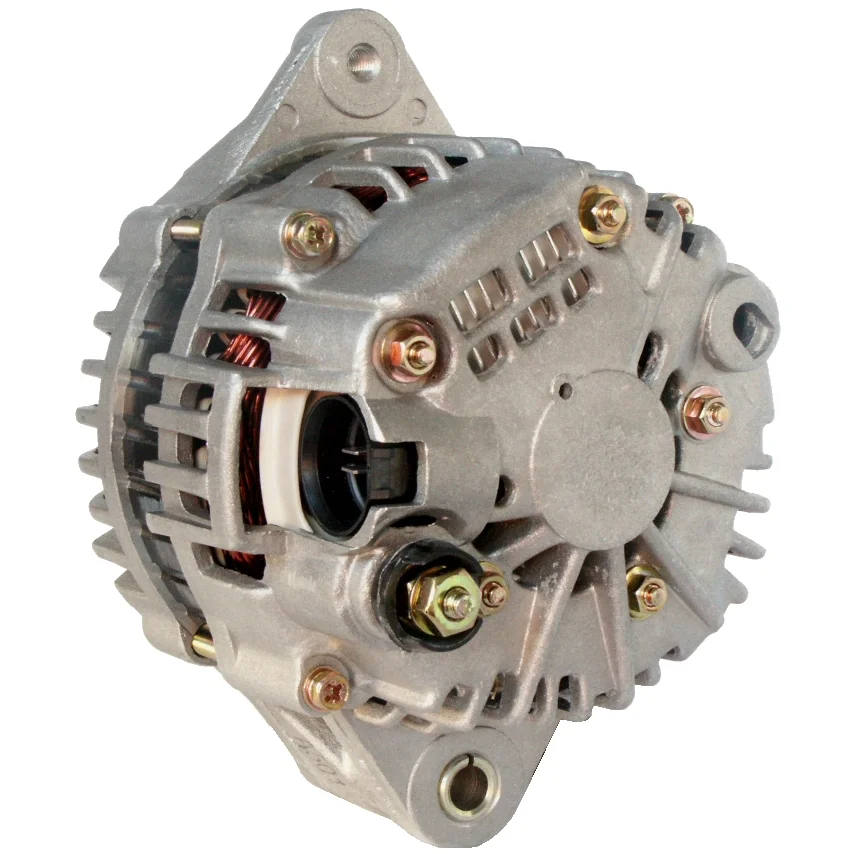

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley diameter: 57.60

Description

Voltage: 14
Amp: 90
Pulley dist.: 89.50
Width/holder arm: 56.50
Bracket hole: 10.40
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 57.60
Grooves/pulley: 6
Radius: 80.00
Radius 2: 83.50
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL101
Total length mm: 176.50
Pulley: SP
Voltage regulator type: IR
Prod. info: BN
Servicing: Honda

Files

  • OEM
    F032113563, LR190-743, 4637, 97204326, 8972043260

  • Normalised article numbler
    aj0096r, alt3025, cal20199, dra0896, f032113563, f042305001, f042a05001, lr190743, 4637, 13935, 13935n, 13935r, 111617, 553306ri, 12044510, 97204326, 0986044511, 0986044513, 8972043260
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 89.50
    Width/holder arm: 56.50
    Bracket hole: 10.40
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 57.60
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 83.50
    B+: M8
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL101
    Total length mm: 176.50
    Pulley: SP
    Voltage regulator type: IR
    Prod. info: BN
    Servicing: Honda

    Files

  • Suitable for these vehicles

    • OEM
      F032113563, LR190-743, 4637, 97204326, 8972043260

    • Normalised article numbler
      aj0096r, alt3025, cal20199, dra0896, f032113563, f042305001, f042a05001, lr190743, 4637, 13935, 13935n, 13935r, 111617, 553306ri, 12044510, 97204326, 0986044511, 0986044513, 8972043260
