Article no.: F032113574

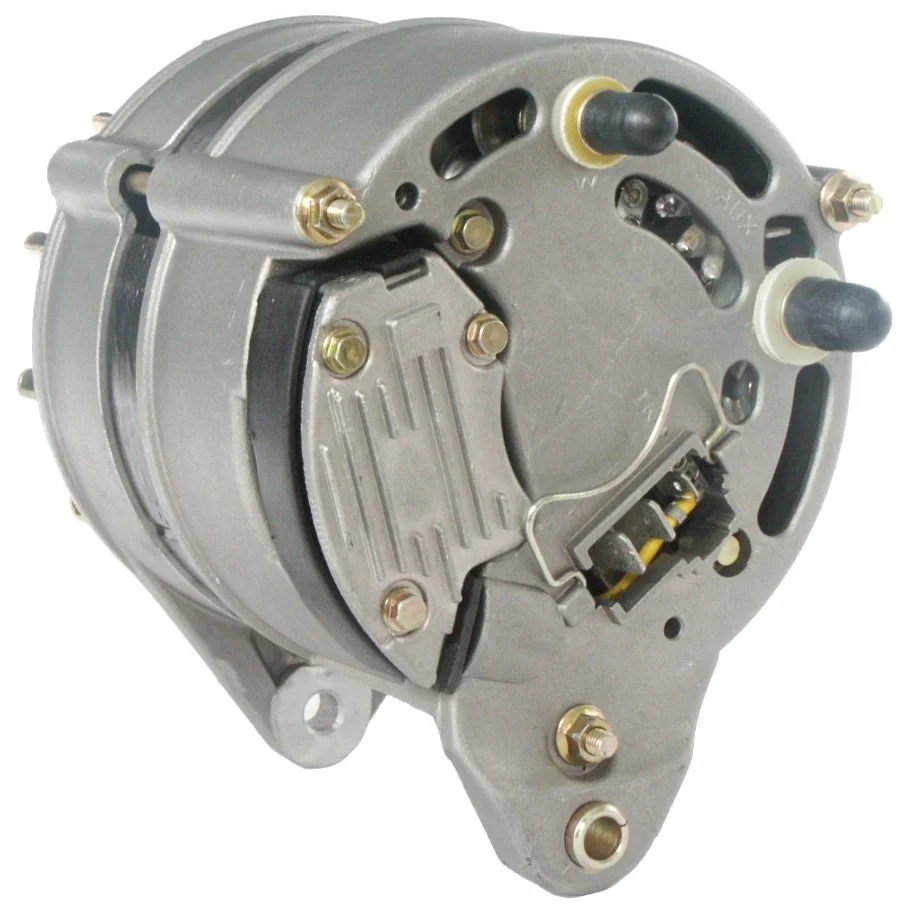

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 65, Rotation: CW, Mounting bracket distance: 83.00

Description

Voltage: 14
Amp: 65
Terminal: W
Pulley dist.: 36.80
Width/holder arm: 10.40
Mounting bracket dist.: 83.00
Bracket hole: 8.20
Belt adjustment bracket hole position.: 50
Belt adjustment bracket hole 1: M8
Pulley diameter: 90.80
Grooves/pulley: 1
Radius: 83.00
Radius 2: 83.50
B+: Plug
Position/B+ in min.: 24
D+ size: Plug
Rotation: CW
Plug number: PL22
W plug type: M5
Total length mm: 177.50
Pulley: P
Regulator type: IR
Production info: BN
Servicing: Case

Files

  • OEM
    aak4118, CT6005706647, F032113574, na066, VPF8033, 9AR2919, 9ar2919p, 9ar2963, 9ar2963l, 11.201.276, 81db10300ba, 81DB10300BB, 312ir, 23680, 23680a, 23680d, 24049, 24049a, 24049b, 24161d, 24294a, 1516550R, 1595276, 3477851R91, 3538541M91, 6173461, 0120489956, 0120489958, 0120489959, 0120489984, 0986033940, 6005706647

  • Normalised article numbler
    a9230, aak4118, alt16012, alt4029fp, ct6005706647, dra0790, dra3940, f032113574, f042306014, f042a06014, ia0276, ia0578, lra00131, lra00277, lra00376, lra00582, mg110, na066, va104, vpf8033, vs201, 8el015643211, 8el725714001, 9ar2919, 9ar2919p, 9ar2963, 9ar2963l, 81db10300ba, 81db10300bb, 312ir, 3604, 12143n, 23680, 23680a, 23680d, 24049, 24049a, 24049b, 24161d, 24294a, 30312ri, 55756, 75573, 75630, 75664, 280606, 280717, 280871, 281629, 1516550r, 1595276, 3477851r91, 3538541m91, 6173461, 9933940, 11201276, 12033940, 32033940, 0120489956, 0120489958, 0120489959, 0120489984, 200118652, 214104652, 219104552, 595047065, 943356245, 0986033940, 6005706647
  • Description
    Voltage: 14
    Amp: 65
    Terminal: W
    Pulley dist.: 36.80
    Width/holder arm: 10.40
    Mounting bracket dist.: 83.00
    Bracket hole: 8.20
    Belt adjustment bracket hole position.: 50
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 90.80
    Grooves/pulley: 1
    Radius: 83.00
    Radius 2: 83.50
    B+: Plug
    Position/B+ in min.: 24
    D+ size: Plug
    Rotation: CW
    Plug number: PL22
    W plug type: M5
    Total length mm: 177.50
    Pulley: P
    Regulator type: IR
    Production info: BN
    Servicing: Case

    Files

  • Suitable for these vehicles

    • OEM
      aak4118, CT6005706647, F032113574, na066, VPF8033, 9AR2919, 9ar2919p, 9ar2963, 9ar2963l, 11.201.276, 81db10300ba, 81DB10300BB, 312ir, 23680, 23680a, 23680d, 24049, 24049a, 24049b, 24161d, 24294a, 1516550R, 1595276, 3477851R91, 3538541M91, 6173461, 0120489956, 0120489958, 0120489959, 0120489984, 0986033940, 6005706647

    • Normalised article numbler
      a9230, aak4118, alt16012, alt4029fp, ct6005706647, dra0790, dra3940, f032113574, f042306014, f042a06014, ia0276, ia0578, lra00131, lra00277, lra00376, lra00582, mg110, na066, va104, vpf8033, vs201, 8el015643211, 8el725714001, 9ar2919, 9ar2919p, 9ar2963, 9ar2963l, 81db10300ba, 81db10300bb, 312ir, 3604, 12143n, 23680, 23680a, 23680d, 24049, 24049a, 24049b, 24161d, 24294a, 30312ri, 55756, 75573, 75630, 75664, 280606, 280717, 280871, 281629, 1516550r, 1595276, 3477851r91, 3538541m91, 6173461, 9933940, 11201276, 12033940, 32033940, 0120489956, 0120489958, 0120489959, 0120489984, 200118652, 214104652, 219104552, 595047065, 943356245, 0986033940, 6005706647
