HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113631

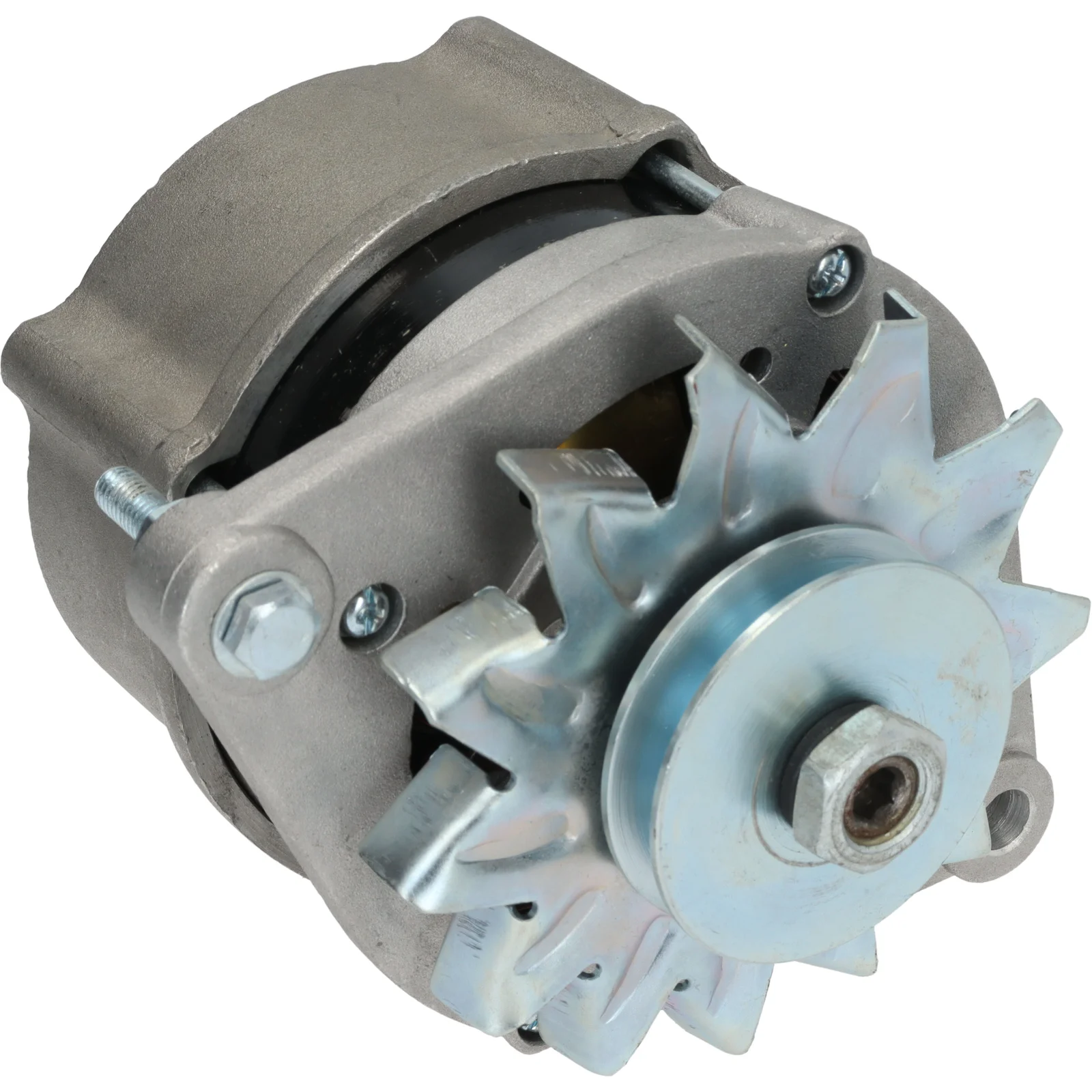

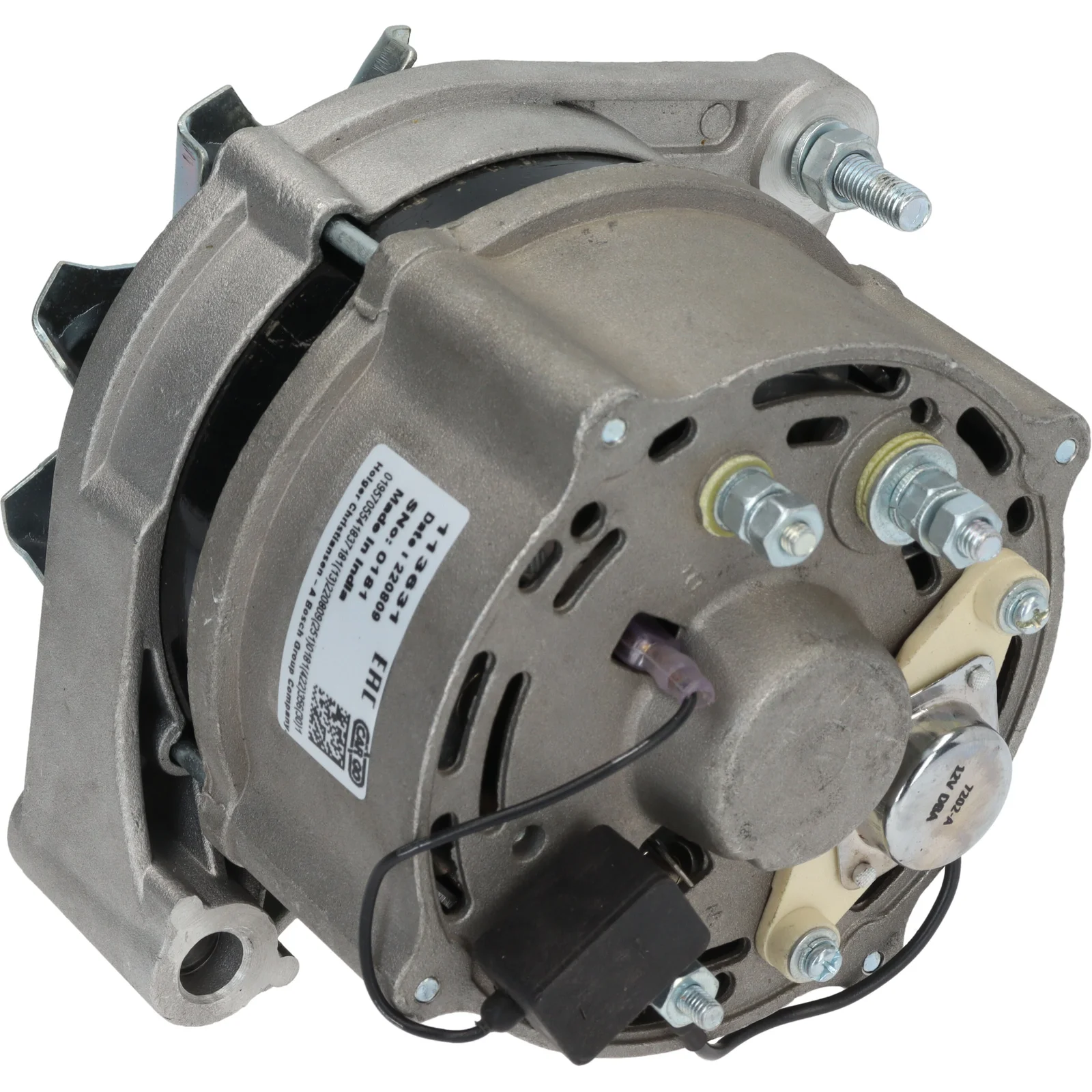

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 90, Rotation: CW, Pulley diameter: 63.60

Description

Alternator 12V-100A compatible with Penta 12V - 100A, insulated return, marine, with (w) see 90-605-7023 and 90-605-0234, for applications Alternative for: 90-605-0234 (60A, Valeo appearance / look) For Yourex product order 90-605-7723 Voltage: 14 Amp: 90 Insulated return: Yes Terminal: W Pulley distance: 79.20 Width/holder arm: 51.00 Bracket hole: 11.40 Belt. adjustment bracket hole position: 57 Belt. adjustment bracket hole 1: M8 Pulley diameter: 63.60 Grooves/pulley: 1 Radius: 87.00 Radius 2: 86.00 B+: M6 Position/B+ in min.: 58 D+ size: M5 Rotation: CW W plug type: 6.30 Total length mm: 178.00 Pulley: P Regulator type: IR Prod. info: BN Servicing: Volvo Penta

Files

  • OEM
    AAK 1818, AAK 3333, AAK 3830, AAK 4352, AAK 4675, AAK4352, F032113489, F032113631, MG 309, MG 499, MG 58, 11.203.416, 1202, 1450, 11201 938, 11203 416, 11203 670, 11204 062, 11205 071, 872235, 20150113

  • Normalised article numbler
    aak1818, aak3333, aak3830, aak4352, aak4675, f032113489, f032113631, ia1202, ia1450, lra03673, mg309, mg499, mg58, 1202, 1450, 286813, 872235, 11201938, 11203416, 11203670, 11204062, 11205071, 20150113, 815019100, 2381621002
  • Description
    Alternator 12V-100A compatible with Penta 12V - 100A, insulated return, marine, with (w) see 90-605-7023 and 90-605-0234, for applications Alternative for: 90-605-0234 (60A, Valeo appearance / look) For Yourex product order 90-605-7723 Voltage: 14 Amp: 90 Insulated return: Yes Terminal: W Pulley distance: 79.20 Width/holder arm: 51.00 Bracket hole: 11.40 Belt. adjustment bracket hole position: 57 Belt. adjustment bracket hole 1: M8 Pulley diameter: 63.60 Grooves/pulley: 1 Radius: 87.00 Radius 2: 86.00 B+: M6 Position/B+ in min.: 58 D+ size: M5 Rotation: CW W plug type: 6.30 Total length mm: 178.00 Pulley: P Regulator type: IR Prod. info: BN Servicing: Volvo Penta

    Files

  • Suitable for these vehicles

    • OEM
      AAK 1818, AAK 3333, AAK 3830, AAK 4352, AAK 4675, AAK4352, F032113489, F032113631, MG 309, MG 499, MG 58, 11.203.416, 1202, 1450, 11201 938, 11203 416, 11203 670, 11204 062, 11205 071, 872235, 20150113

    • Normalised article numbler
      aak1818, aak3333, aak3830, aak4352, aak4675, f032113489, f032113631, ia1202, ia1450, lra03673, mg309, mg499, mg58, 1202, 1450, 286813, 872235, 11201938, 11203416, 11203670, 11204062, 11205071, 20150113, 815019100, 2381621002
