HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113685

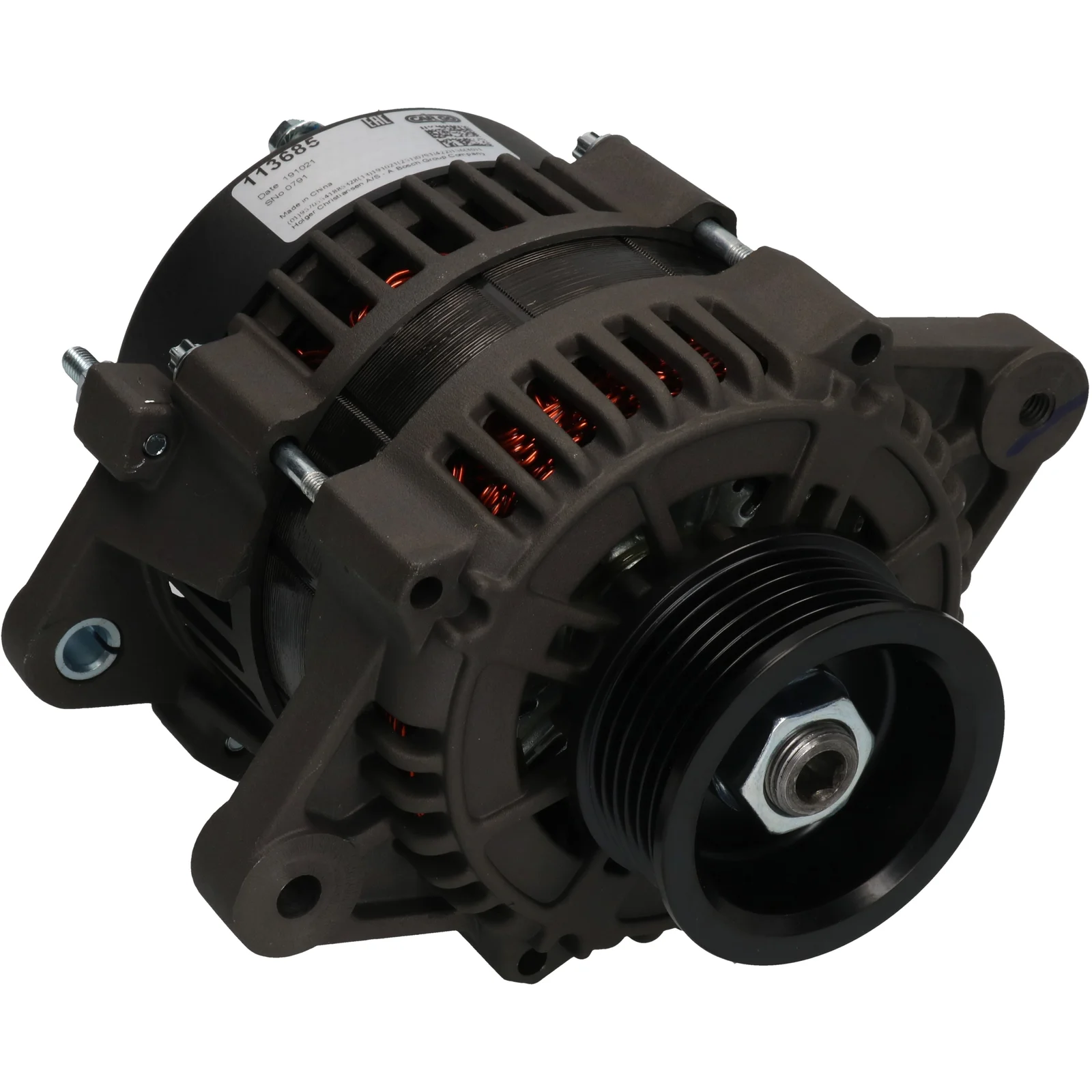

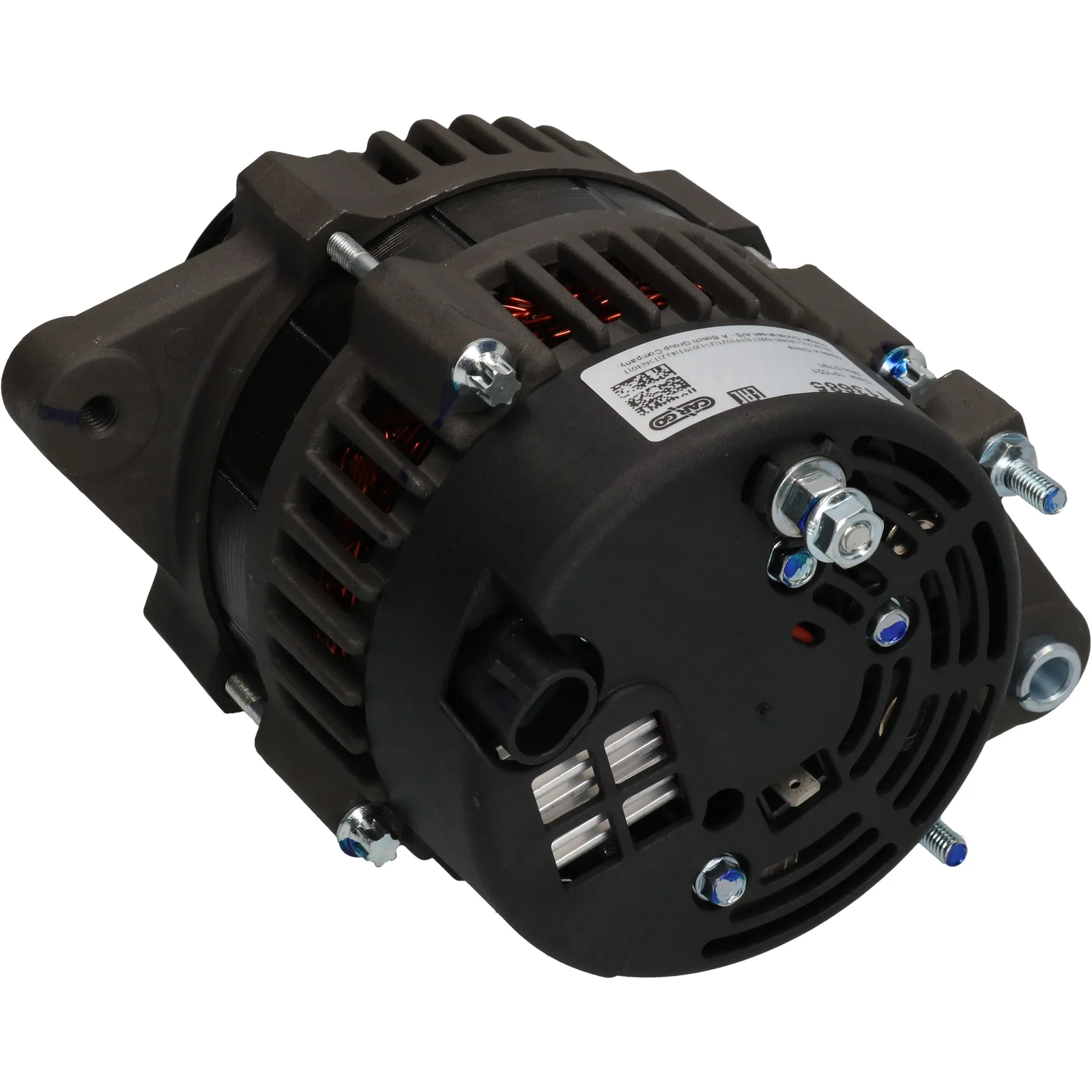

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 70, Rotation: CW, Mounting bracket distributor: 65.20

Description

Voltage: 14
Amp: 70
Terminal: W
Pulley dist.: 41.00
Width/holder arm: 16.80
Mounting bracket dist.: 65.20
Bracket hole: 8.50
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 62.80
Grooves/pulley: 6
Radius: 78.00
Radius 2: 78.00
B+: M6
Position/B+ in minutes.: 15
D+ Size: Plug
Rotation: CW
Plug number.: PL145
W plug type: 6.30
Total length mm: 180.00
Pulley: SP
Voltage regulator type: IR
Product info: BN
Servicing: Mercruiser

Files

  • OEM
    F032113685, 219232, 862031, 862031t, 19020601, 19020609

  • Normalised article numbler
    a1079s, a1665, adr0299, alt20203, cal60105, dra0244, f032113685, lra02327, 8460, 8460n, 20099, 219232, 284824, 553214ri, 862031, 862031t, 1248501dr, 19020601, 19020609, 528160702
  • Description
    Voltage: 14
    Amp: 70
    Terminal: W
    Pulley dist.: 41.00
    Width/holder arm: 16.80
    Mounting bracket dist.: 65.20
    Bracket hole: 8.50
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 62.80
    Grooves/pulley: 6
    Radius: 78.00
    Radius 2: 78.00
    B+: M6
    Position/B+ in minutes.: 15
    D+ Size: Plug
    Rotation: CW
    Plug number.: PL145
    W plug type: 6.30
    Total length mm: 180.00
    Pulley: SP
    Voltage regulator type: IR
    Product info: BN
    Servicing: Mercruiser

    Files

  • Suitable for these vehicles

    • OEM
      F032113685, 219232, 862031, 862031t, 19020601, 19020609

    • Normalised article numbler
      a1079s, a1665, adr0299, alt20203, cal60105, dra0244, f032113685, lra02327, 8460, 8460n, 20099, 219232, 284824, 553214ri, 862031, 862031t, 1248501dr, 19020601, 19020609, 528160702
