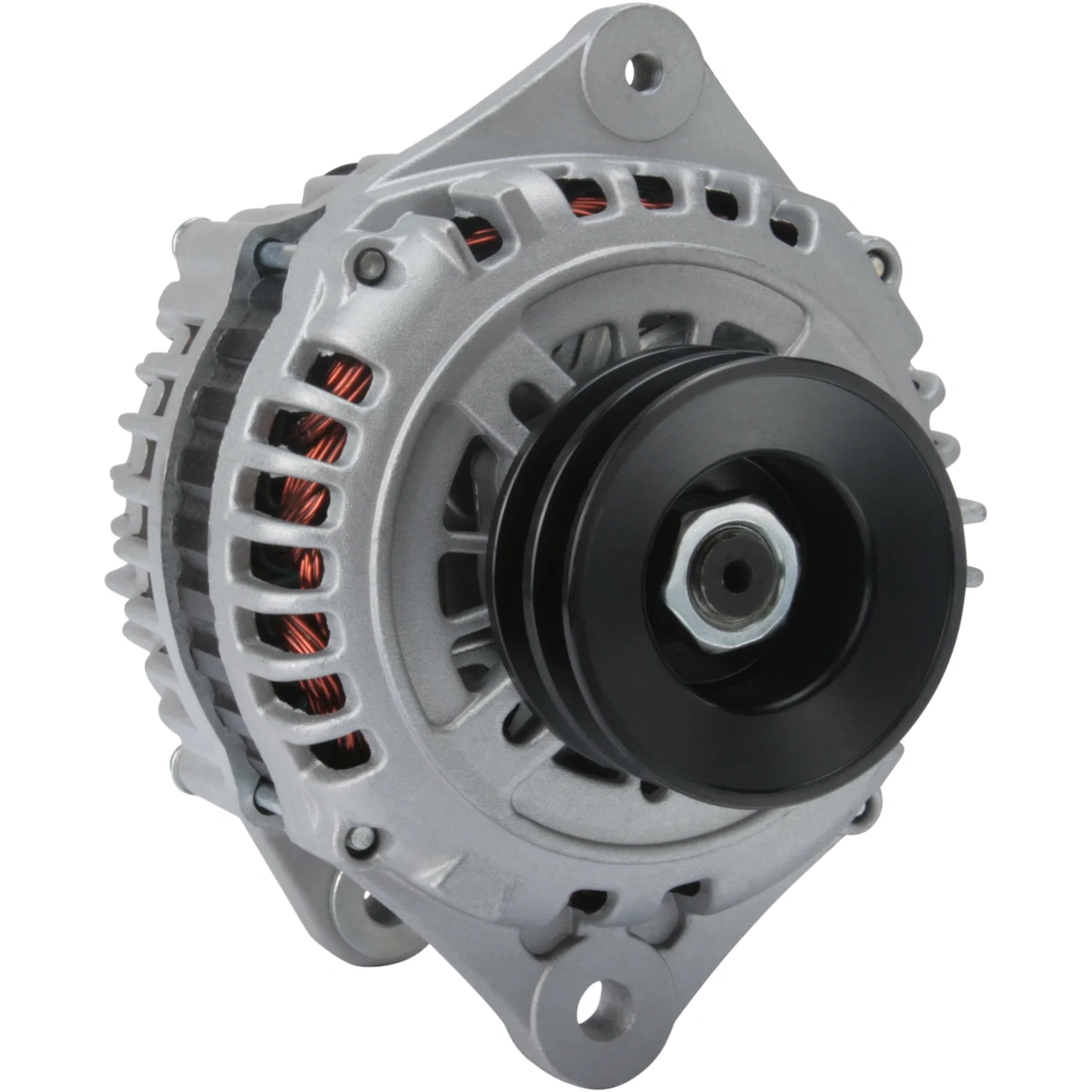

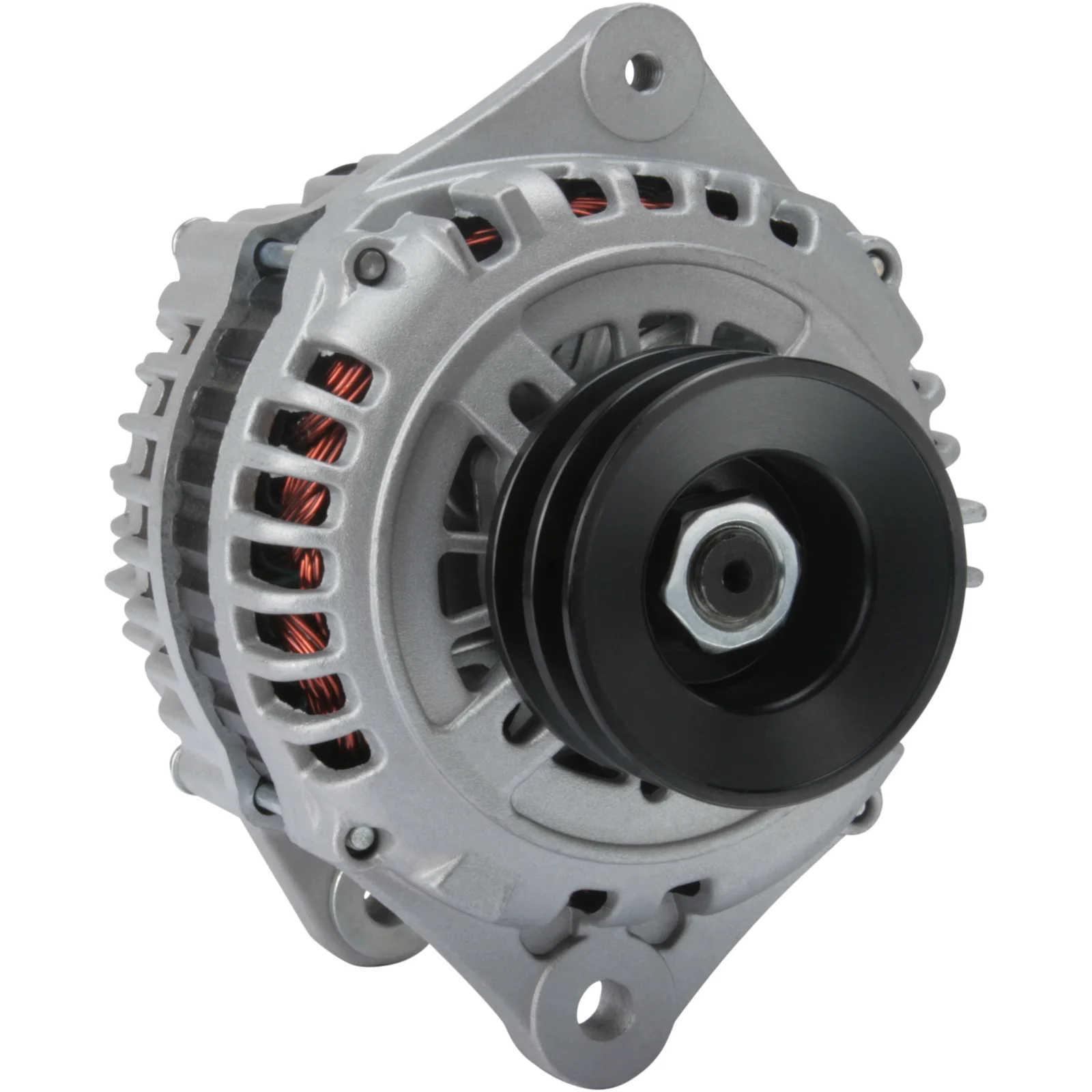

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113698

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 90, Rotation: CW, Mounting bracket distributor: 81.00

Description

Voltage: 14
Amp: 90
Pulley dist.: 45.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 1
Belt. adj. bracket hole 1: M8
Pulley dia.: 72.00
Grooves/pulley: 2
Radius: 80.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 185.50
Pulley: DP
Regulator type: IR
Prod. info: BN/OE
Servicing: Opel

Files

  • OEM
    F032113698, LR190-750, lr190-750b, 8-97215992-2

  • Normalised article numbler
    a2037, alt31103, cal20160, dra0349, f032113698, lr190750, lr190750b, 23846n, 23846r, 553153ri, 12060838, 8972159922
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 45.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 1
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 72.00
    Grooves/pulley: 2
    Radius: 80.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in min.: 60
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 185.50
    Pulley: DP
    Regulator type: IR
    Prod. info: BN/OE
    Servicing: Opel

    Files

  • Suitable for these vehicles

    • OEM
      F032113698, LR190-750, lr190-750b, 8-97215992-2

    • Normalised article numbler
      a2037, alt31103, cal20160, dra0349, f032113698, lr190750, lr190750b, 23846n, 23846r, 553153ri, 12060838, 8972159922
