Article no.: F032113713

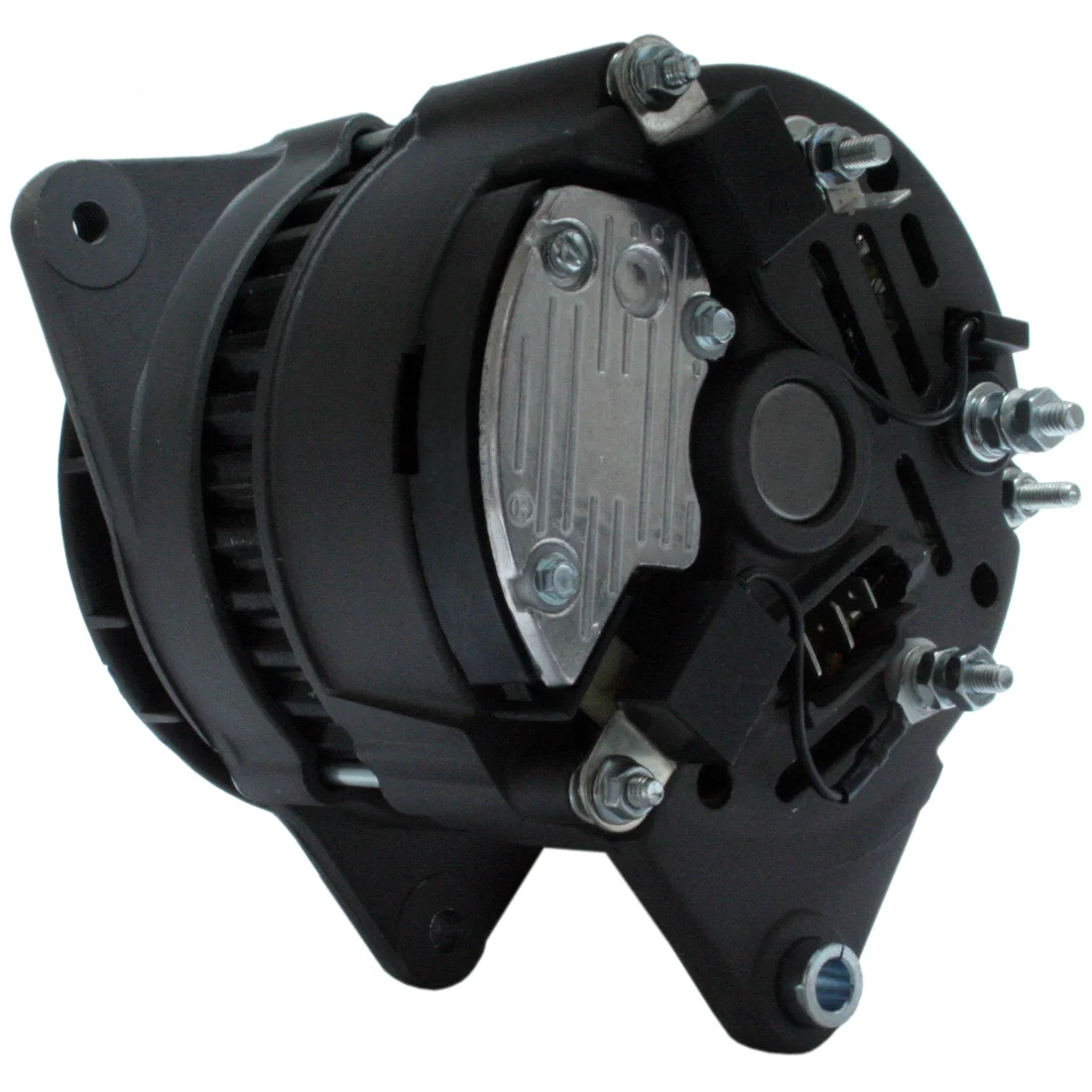

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 80, Rotation: CW, Mounting bracket distance: 83.00

Description

Voltage: 14
Amp: 80
Insulated return: Yes
Terminal: W
Pulley dist.: 45.50
Width/holder arm: 11.20
Mounting bracket dist.: 83.00
Bracket hole: 8.20
Belt. adj. bracket hole position.: 10
Belt. adj. bracket hole 1: M8
Pulley diameter: 82.20
Grooves/pulley: 1
Radius: 86.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 14
D+ Size: Plug
Rotation: CW
Plug number: PL22
W plug type: M5-6.30
Total length mm: 169.00
Pulley: P
Regulator type: IR
Product info: BN
Servicing: Marine

Files

  • OEM
    F032113713, 362-02349, 510-823, 47020054, 47020056, 47020058, 47020062, 47020063, 47020069, 47920130A

  • Normalised article numbler
    f032113713, lea0438, lea1195, 20607noe, 510823, 36202349, 47020054, 47020056, 47020058, 47020062, 47020063, 47020069, 47920130a, 66021588, 595034070
  • Description
    Voltage: 14
    Amp: 80
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 45.50
    Width/holder arm: 11.20
    Mounting bracket dist.: 83.00
    Bracket hole: 8.20
    Belt. adj. bracket hole position.: 10
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 82.20
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 14
    D+ Size: Plug
    Rotation: CW
    Plug number: PL22
    W plug type: M5-6.30
    Total length mm: 169.00
    Pulley: P
    Regulator type: IR
    Product info: BN
    Servicing: Marine

    Files

  • Suitable for these vehicles

    • OEM
      F032113713, 362-02349, 510-823, 47020054, 47020056, 47020058, 47020062, 47020063, 47020069, 47920130A

    • Normalised article numbler
      f032113713, lea0438, lea1195, 20607noe, 510823, 36202349, 47020054, 47020056, 47020058, 47020062, 47020063, 47020069, 47920130a, 66021588, 595034070
