Article no.: F032113715

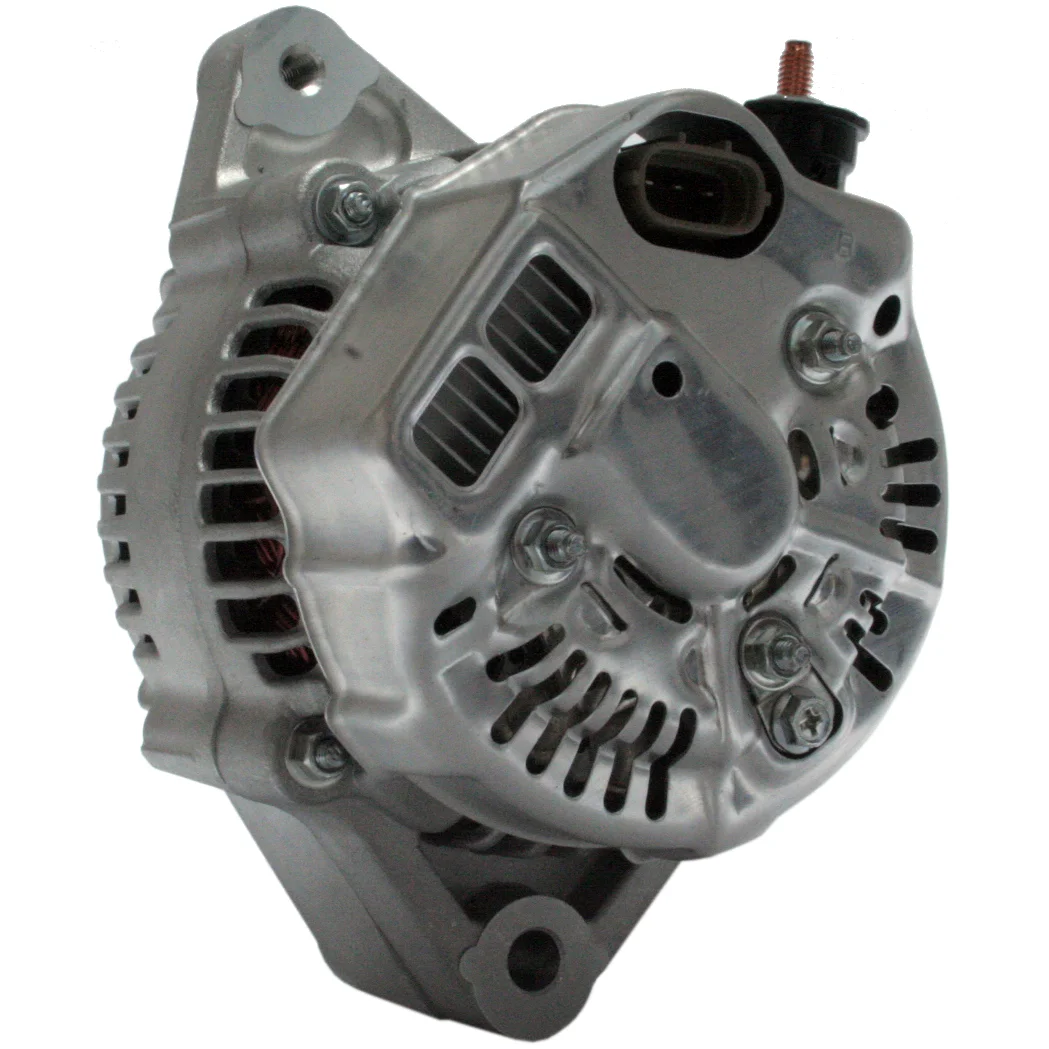

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 80, Rotation: CW, Pulley diameter: 79.00

Description

Voltage: 14
Amp: 80
Terminal: W
Pulley dist.: 92.00
Width/holder arm: 57.50
Bracket hole: 10.10
Belt. adjustment bracket hole position: 4
Belt. adjustment bracket hole 1: M8
Pulley diameter: 79.00
Grooves/pulley: 2
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL128
Total length mm: 167.00
Pulley: DP
Voltage regulator type: IR
Production info: BN
Servicing: Yanmar Marine

Files

  • OEM
    F032113715, 27060-73020, 100211-9940, 100211-9941, 101211-7010, 101211-7011, 101211-9940, 119773-77200

  • Normalised article numbler
    a6005, a80084, an0059r, cal40142, f032113715, lra02144, 12355, 12355n, 20101, 553947ri, 1245801nd, 90295451, 195318080, 582116802, 1002119940, 1002119941, 1012117010, 1012117011, 1012119940, 2706073020, 11977377200
  • Description
    Voltage: 14
    Amp: 80
    Terminal: W
    Pulley dist.: 92.00
    Width/holder arm: 57.50
    Bracket hole: 10.10
    Belt. adjustment bracket hole position: 4
    Belt. adjustment bracket hole 1: M8
    Pulley diameter: 79.00
    Grooves/pulley: 2
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL128
    Total length mm: 167.00
    Pulley: DP
    Voltage regulator type: IR
    Production info: BN
    Servicing: Yanmar Marine

    Files

  • Suitable for these vehicles

    • OEM
      F032113715, 27060-73020, 100211-9940, 100211-9941, 101211-7010, 101211-7011, 101211-9940, 119773-77200

    • Normalised article numbler
      a6005, a80084, an0059r, cal40142, f032113715, lra02144, 12355, 12355n, 20101, 553947ri, 1245801nd, 90295451, 195318080, 582116802, 1002119940, 1002119941, 1012117010, 1012117011, 1012119940, 2706073020, 11977377200
