Article no.: F032113742

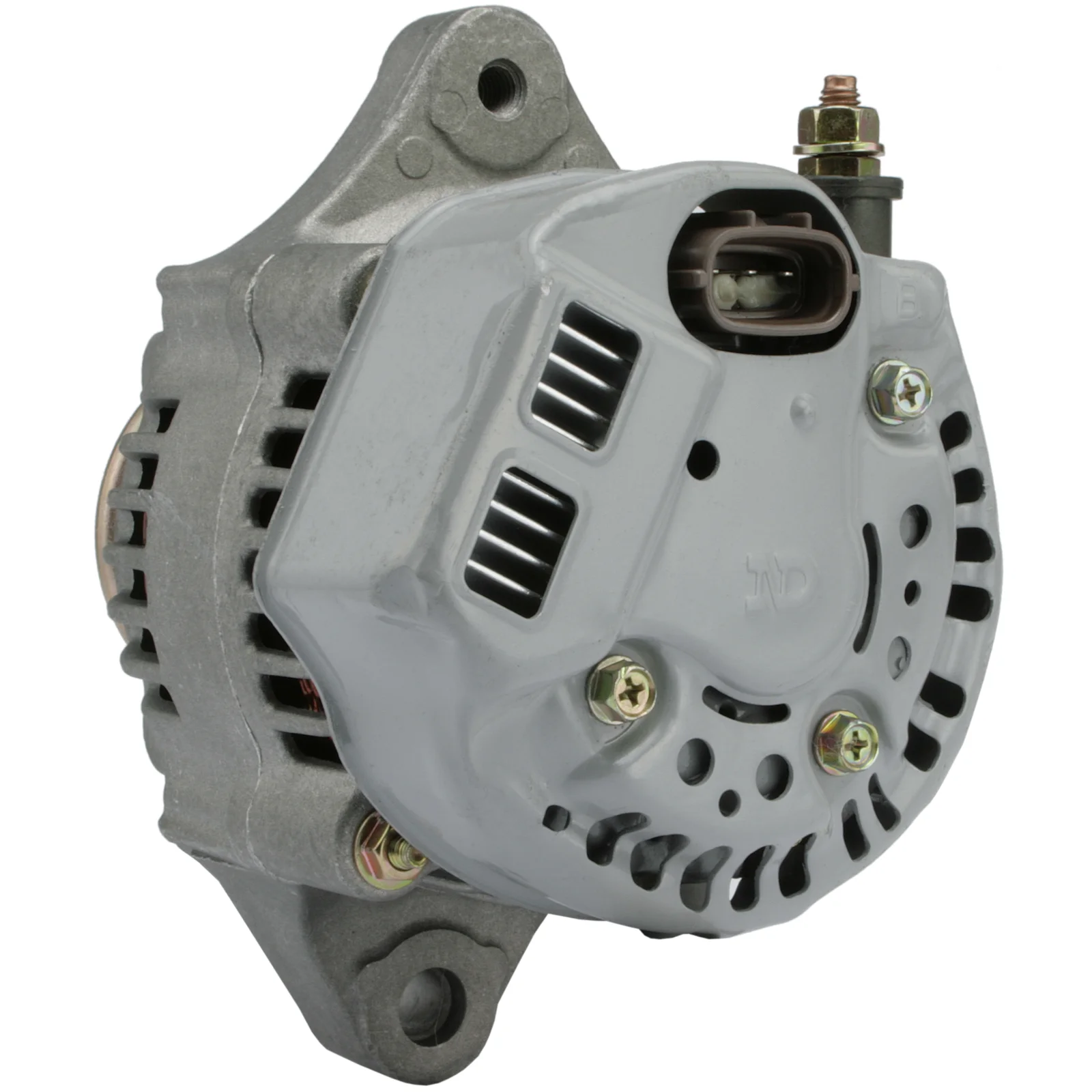

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 40, Rotation: CW, Pulley diameter: 69.60

Description

Voltage: 14
Amp: 40
Pulley dist.: 43.00
Width/holder arm: 21.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 69.60
Grooves/pulley: 1
Radius: 74.00
Radius 2: 74.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL128
Total length mm: 143.00
Pulley: P
Alternator type: IR
Prod. info: BN
Servicing: John Deere

Files

  • OEM
    am879909, F032113742, lva12357, ty25243, YM129240-77200, 101211-1170, 101211-1380, 102211-0010, 102211-0011, 129240-77200, 129423-77200, 129423-77210

  • Normalised article numbler
    a6213, a6213denso, am879909, cal40122, dan2028, dra0186, f032113742, lva12357, ty25243, ym12924077200, 8el015643391, 12356, 12356n, 12356r, 12772n, 210681, 210681a, 285670, 286657, 12090525, 695514040, 1012111170, 1012111380, 1022110010, 1022110011, 12924077200, 12942377200, 12942377210
  • Description
    Voltage: 14
    Amp: 40
    Pulley dist.: 43.00
    Width/holder arm: 21.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 69.60
    Grooves/pulley: 1
    Radius: 74.00
    Radius 2: 74.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL128
    Total length mm: 143.00
    Pulley: P
    Alternator type: IR
    Prod. info: BN
    Servicing: John Deere

    Files

  • Suitable for these vehicles

    • OEM
      am879909, F032113742, lva12357, ty25243, YM129240-77200, 101211-1170, 101211-1380, 102211-0010, 102211-0011, 129240-77200, 129423-77200, 129423-77210

    • Normalised article numbler
      a6213, a6213denso, am879909, cal40122, dan2028, dra0186, f032113742, lva12357, ty25243, ym12924077200, 8el015643391, 12356, 12356n, 12356r, 12772n, 210681, 210681a, 285670, 286657, 12090525, 695514040, 1012111170, 1012111380, 1022110010, 1022110011, 12924077200, 12942377200, 12942377210
