Article no.: F032113777

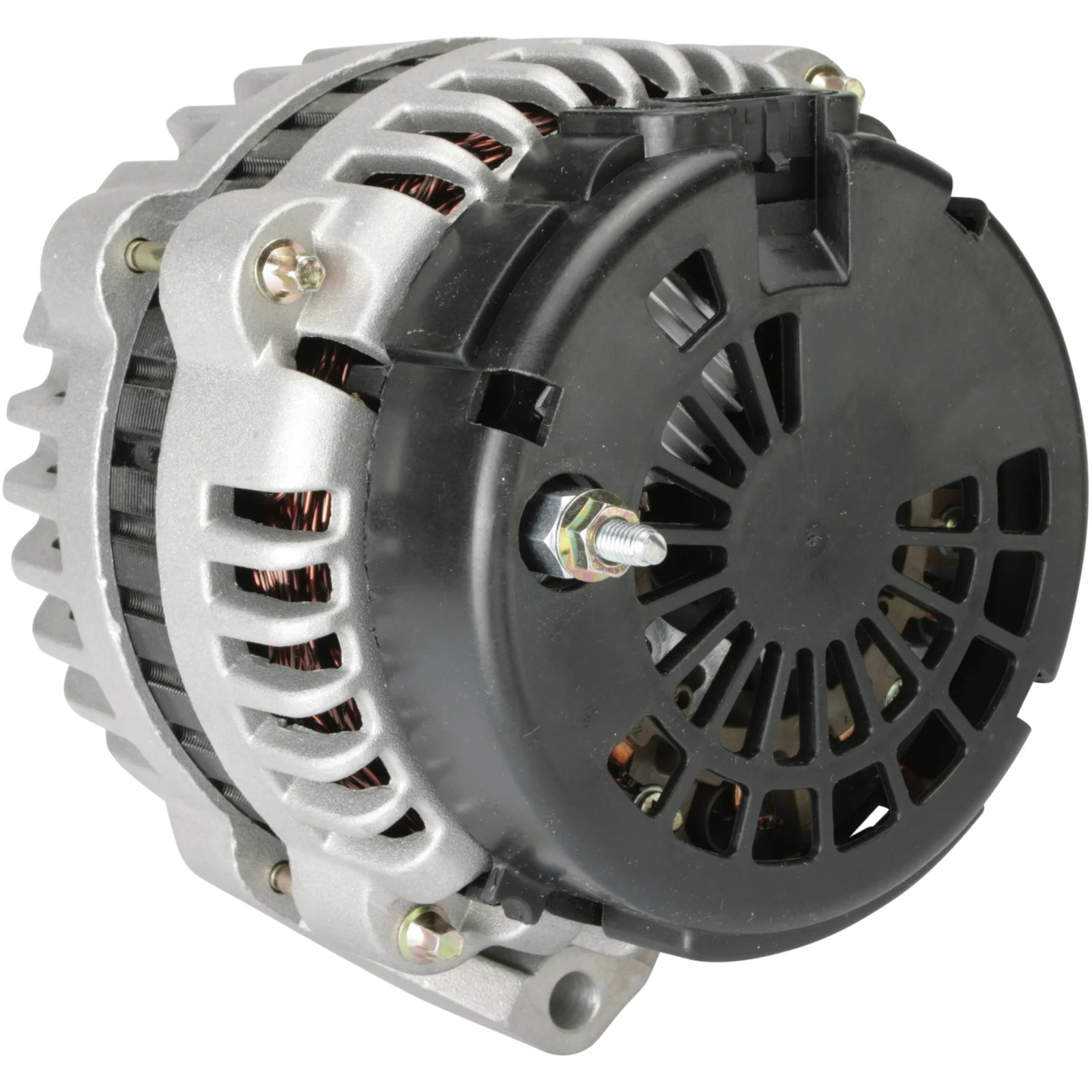

HC-Cargo Alternator

Technical info:

Voltage: 14, Current: 145, Rotation: CW, Pulley diameter: 56.50

Description

Voltage: 14
Amp: 145
Pulley dist.: 72.50
Width/holder arm: 51.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 13
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 56.50
Grooves/pulley: 6
Radius: 89.00
Radius 2: 89.00
B+: M6
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL187
Total length mm: 178.50
Pulley: SP
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032113777, 1986A01738, 10464476, 15226003, 15754097, 15754097M

  • Normalised article numbler
    a1645, adr290, alt1511, f032113777, f042200012, f042300181, f042a00181, 0986ur0746, 1986a01738, 8292, 8292n, 8292n253a, 8292ndr220a, 8292r, 8292r253a, 8292rdr220a, 287852, 908292, 1241921dr, 10464476, 15226003, 15754097, 15754097m, 90014415
  • Description
    Voltage: 14
    Amp: 145
    Pulley dist.: 72.50
    Width/holder arm: 51.00
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 13
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 56.50
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 89.00
    B+: M6
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL187
    Total length mm: 178.50
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032113777, 1986A01738, 10464476, 15226003, 15754097, 15754097M

    • Normalised article numbler
      a1645, adr290, alt1511, f032113777, f042200012, f042300181, f042a00181, 0986ur0746, 1986a01738, 8292, 8292n, 8292n253a, 8292ndr220a, 8292r, 8292r253a, 8292rdr220a, 287852, 908292, 1241921dr, 10464476, 15226003, 15754097, 15754097m, 90014415
