Article no.: F032113785

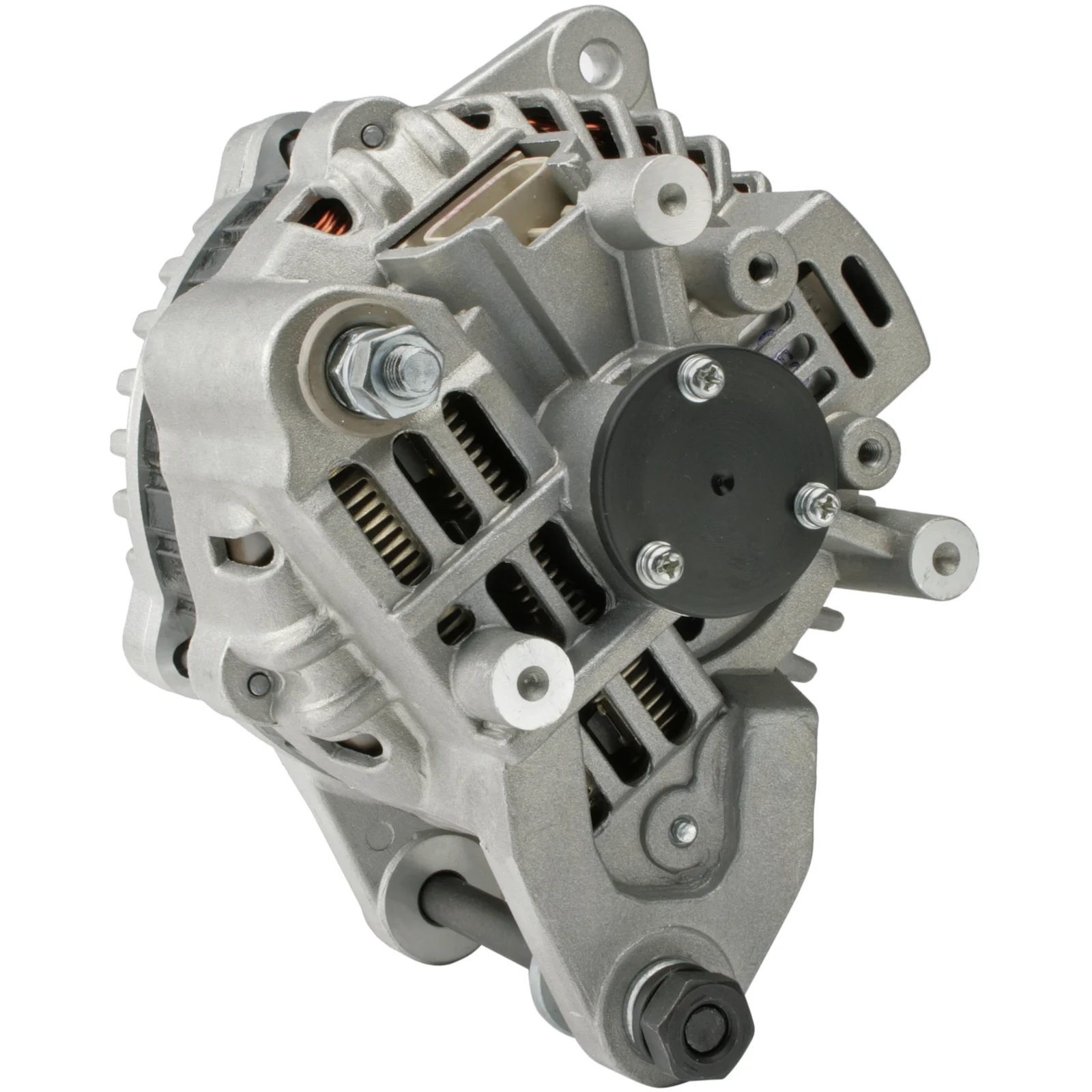

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 80, Rotation: CW, Mounting bracket distance: 64.00

Description

Voltage: 14
Amp: 80
Pulley dist.: 41.50
Width/holder arm: 12.80
Mounting bracket dist.: 64.00
Bracket hole: 10.50
Belt adjustment bracket hole position.: 57
Belt adjustment bracket hole 1: 8.30
Pulley dia.: 85.70
Grooves/pulley: 2
Radius: 90.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 182.00
Pulley: DP
Regulator type: IR
Product info: BN
Servicing: Mazda

Files

  • OEM
    A002TA1099, A002TA1099A, A002TB1298, A002TB1299, a2ta1099, a2ta1099a, a2tb1298, A2TB1299, F032113785, ja1513ir, lr190-731, lr190-731b, RF1S-18-300, rfis-18-300, WL01-18-300, WL11-18-300, WL11-18-300A

  • Normalised article numbler
    a002ta1099, a002ta1099a, a002tb1298, a002tb1299, a2ta1099, a2ta1099a, a2tb1298, a2tb1299, a5019, a5019er, a5019pr, a5019sr, a5021, a5391s, alth155, cal35107, dra3863, f032113785, f042a0h155, ja1513ir, lr190731, lr190731b, lra01633, lra01726, lra01850, rf1s18300, rfis18300, wl0118300, wl1118300, wl1118300a, 8el012426581, 9051, 22634r, 23064r, 111694, 210531, 210531a, 282812, 282998, 401513ri, 440120, 9212545, 12060759, 12060767, 12060987, 224142802, 224165802, 0986045521, 944390901240
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 41.50
    Width/holder arm: 12.80
    Mounting bracket dist.: 64.00
    Bracket hole: 10.50
    Belt adjustment bracket hole position.: 57
    Belt adjustment bracket hole 1: 8.30
    Pulley dia.: 85.70
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 50
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 182.00
    Pulley: DP
    Regulator type: IR
    Product info: BN
    Servicing: Mazda

    Files

  • Suitable for these vehicles

    • OEM
      A002TA1099, A002TA1099A, A002TB1298, A002TB1299, a2ta1099, a2ta1099a, a2tb1298, A2TB1299, F032113785, ja1513ir, lr190-731, lr190-731b, RF1S-18-300, rfis-18-300, WL01-18-300, WL11-18-300, WL11-18-300A

    • Normalised article numbler
      a002ta1099, a002ta1099a, a002tb1298, a002tb1299, a2ta1099, a2ta1099a, a2tb1298, a2tb1299, a5019, a5019er, a5019pr, a5019sr, a5021, a5391s, alth155, cal35107, dra3863, f032113785, f042a0h155, ja1513ir, lr190731, lr190731b, lra01633, lra01726, lra01850, rf1s18300, rfis18300, wl0118300, wl1118300, wl1118300a, 8el012426581, 9051, 22634r, 23064r, 111694, 210531, 210531a, 282812, 282998, 401513ri, 440120, 9212545, 12060759, 12060767, 12060987, 224142802, 224165802, 0986045521, 944390901240
