HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113793

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 55, Rotation: CW, Mount. bracket Alternator.: 80.00

Description

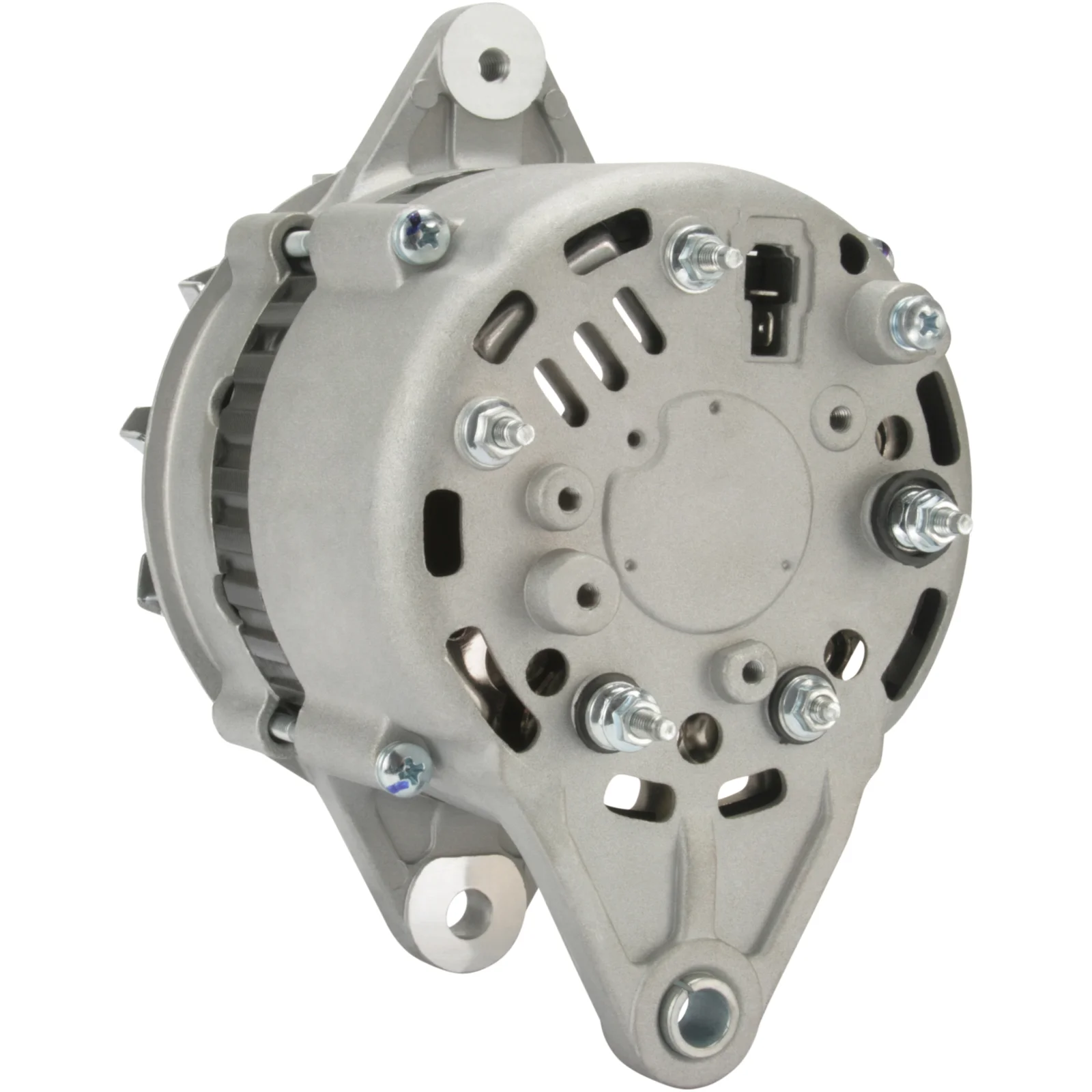

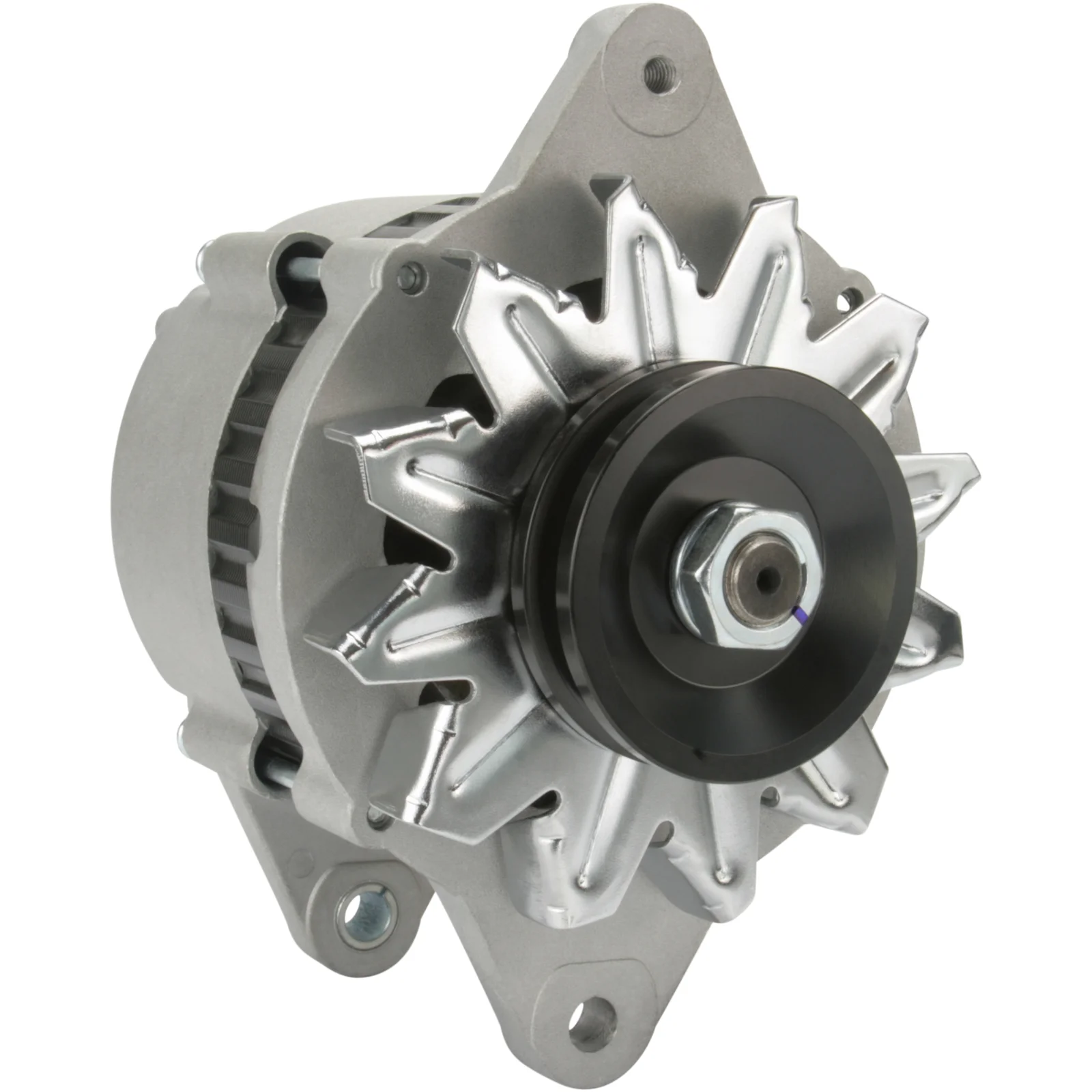

Yanmar Marine Alternator 12V-55A 12V - 55A, 1V, (R, L), insulated Fits Yanmar Marine 4JMTE, 4JH2E Engines For Yourex product order 90-678-5520

Voltage: 14
Amp: 55
Insulated return: Yes
Pulley diameter: 42.00
Width/holder arm: 13.00
Mounting bracket distance: 80.00
Bracket hole: 10.00
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 72.00
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M5
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug number: PL09
Total length mm: 184.00
Pulley: P
Regulator type: IR
Product info: BN
Servicing: Yanmar

Files

  • OEM
    F032113793, ja986ir, LR155-20, lr155-20, LR155-20B, lr155-20b, LR155-29, lr155-29, 129772-77200

  • Normalised article numbler
    a2126s, a8864, ahi0068, cal20161, f032113793, ja986ir, lr15520, lr15520b, lr15529, lra00348, lra01248, va225, 8el737061001, 5476, 12107n, 12275n, 119756, 280917, 281565, 553903ri, 90251061, 90251092, 135017055, 582105552, 985003055, 12977277200
  • Description
    Yanmar Marine Alternator 12V-55A 12V - 55A, 1V, (R, L), insulated Fits Yanmar Marine 4JMTE, 4JH2E Engines For Yourex product order 90-678-5520

    Voltage: 14
    Amp: 55
    Insulated return: Yes
    Pulley diameter: 42.00
    Width/holder arm: 13.00
    Mounting bracket distance: 80.00
    Bracket hole: 10.00
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 72.00
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M5
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug number: PL09
    Total length mm: 184.00
    Pulley: P
    Regulator type: IR
    Product info: BN
    Servicing: Yanmar

    Files

  • Suitable for these vehicles

    • OEM
      F032113793, ja986ir, LR155-20, lr155-20, LR155-20B, lr155-20b, LR155-29, lr155-29, 129772-77200

    • Normalised article numbler
      a2126s, a8864, ahi0068, cal20161, f032113793, ja986ir, lr15520, lr15520b, lr15529, lra00348, lra01248, va225, 8el737061001, 5476, 12107n, 12275n, 119756, 280917, 281565, 553903ri, 90251061, 90251092, 135017055, 582105552, 985003055, 12977277200
