HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113835

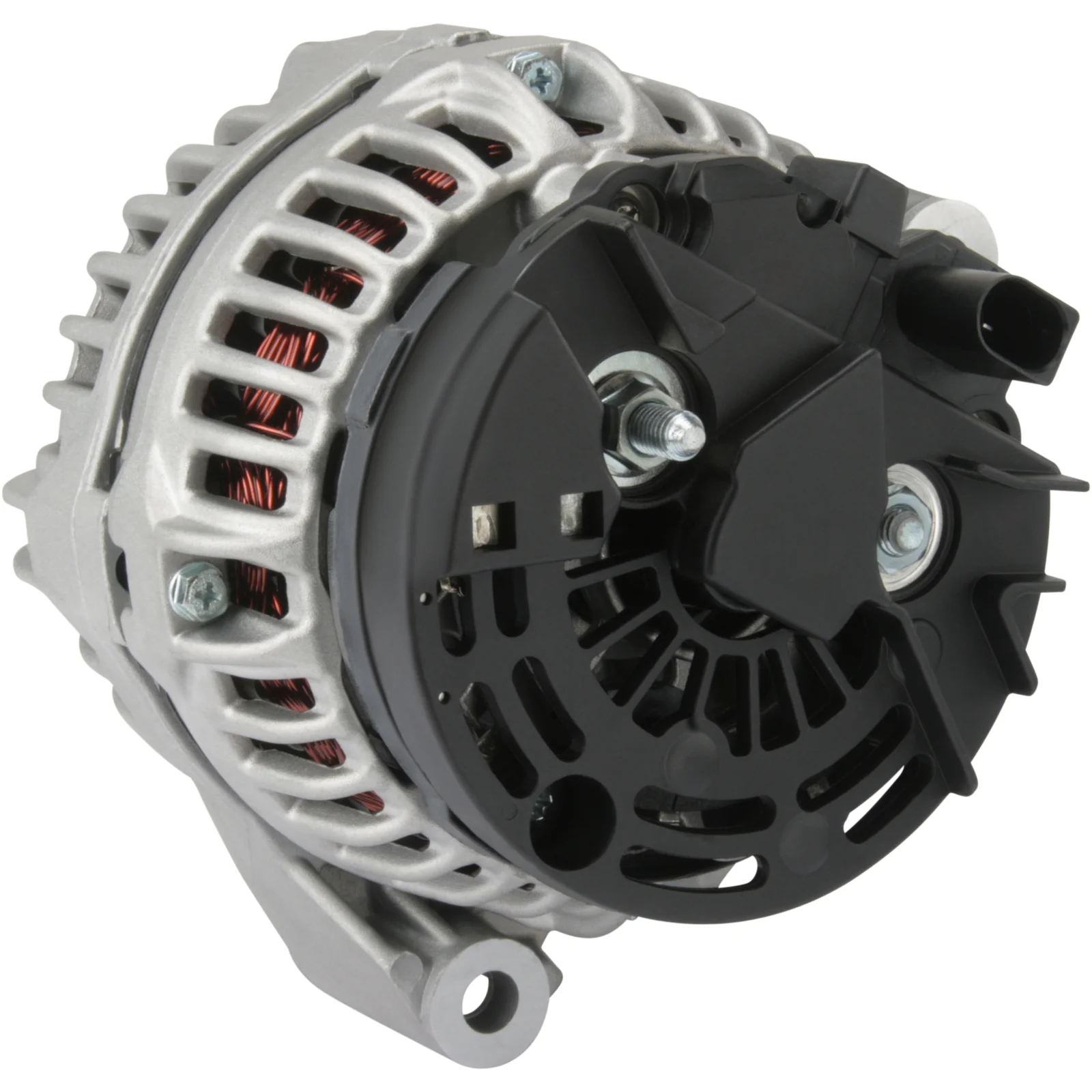

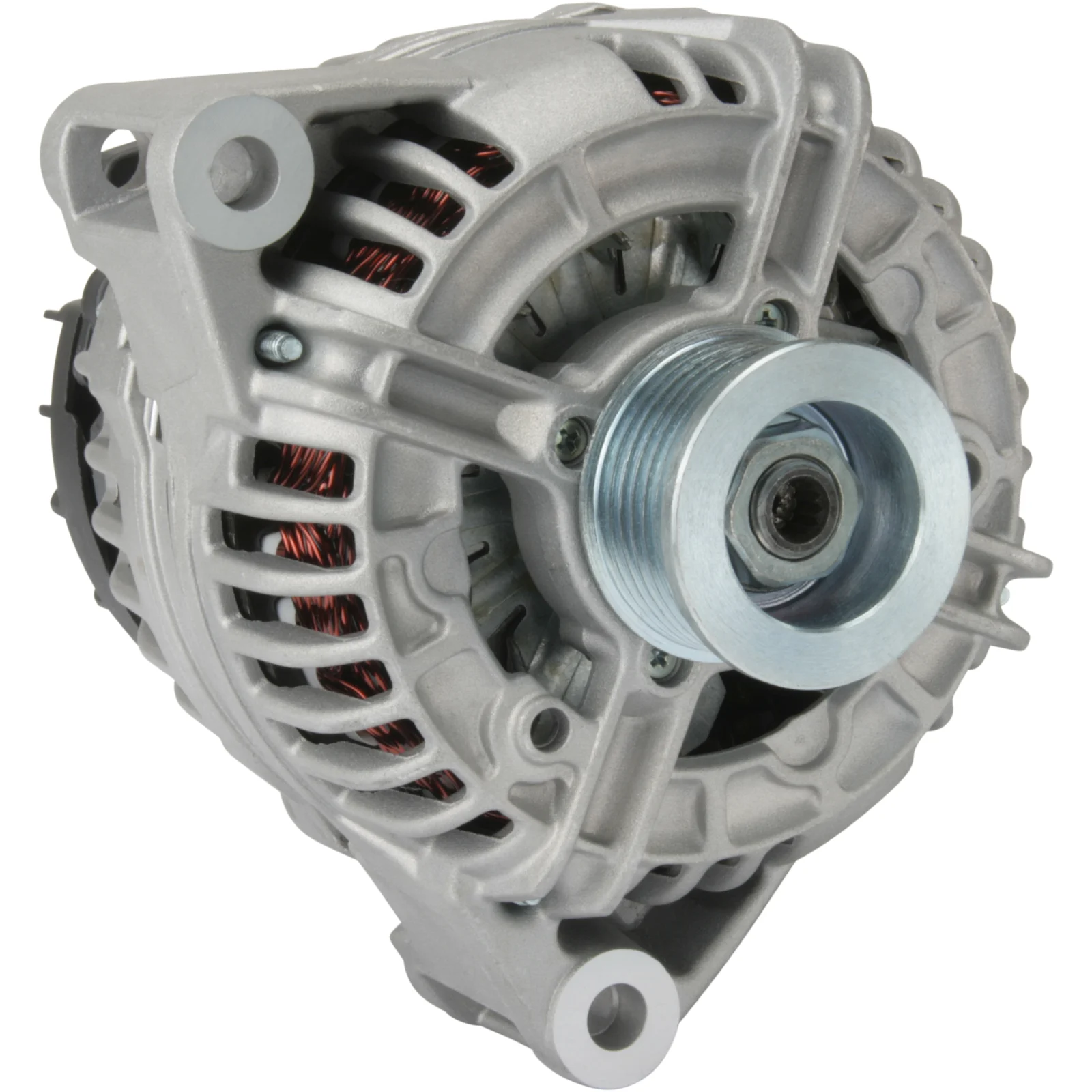

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 120, Rotation: CW, Pulley diameter: 50.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 82.40
Width/holder arm: 56.00
Bracket hole: 10.20
Belt. adj. bracket hole position: 50
Belt. adj. bracket hole 1: 10.20
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 10
Rotation: CW
Plug no.: PL61
Total length mm: 181.00
Pulley: SP
Voltage regulator type: IR
Prod. info: BN/OE
Servicing: Mercedes

Files

  • OEM
    a0111542602, A0111542702, A011154270280, A011154270283, A0111546202, A011154620280, A0131548002, A013154800280, A013154800283, F032113835, sg12b024, 1656ir, 1986A00855, 2542320, 2542320A, 2542320B, 2542320C, 0111542602, 0111542702, 0111546202, 0124515055, 0124515130, 0124515131, 0131548002, 011154270280, 011154270283, 011154620280, 013154800280, 013154800283

  • Normalised article numbler
    a0111542602, a0111542702, a011154270280, a011154270283, a0111546202, a011154620280, a0131548002, a013154800280, a013154800283, a0206, cal15012, dra0728, drb2570, drb7530, f032113835, lra02315, sg12b024, 8el012428721, 1656ir, 1986a00855, 11123r, 11124n, 11124r, 111845, 119903, 209213, 209213a, 284808, 301656ri, 437312, 439307, 2542320, 2542320a, 2542320b, 2542320c, 9047530, 12042560, 12047530, 32042560, 0111542602, 0111542702, 0111546202, 0124515055, 0124515130, 0124515131, 0131548002, 555936120, 0986042560, 0986042563, 0986047530, 0986047533, 0986047534, 0986047537, 2251421202, 011154270280, 011154270283, 011154620280, 013154800280, 013154800283, 944390425600
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 82.40
    Width/holder arm: 56.00
    Bracket hole: 10.20
    Belt. adj. bracket hole position: 50
    Belt. adj. bracket hole 1: 10.20
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 10
    Rotation: CW
    Plug no.: PL61
    Total length mm: 181.00
    Pulley: SP
    Voltage regulator type: IR
    Prod. info: BN/OE
    Servicing: Mercedes

    Files

  • Suitable for these vehicles

    • OEM
      a0111542602, A0111542702, A011154270280, A011154270283, A0111546202, A011154620280, A0131548002, A013154800280, A013154800283, F032113835, sg12b024, 1656ir, 1986A00855, 2542320, 2542320A, 2542320B, 2542320C, 0111542602, 0111542702, 0111546202, 0124515055, 0124515130, 0124515131, 0131548002, 011154270280, 011154270283, 011154620280, 013154800280, 013154800283

    • Normalised article numbler
      a0111542602, a0111542702, a011154270280, a011154270283, a0111546202, a011154620280, a0131548002, a013154800280, a013154800283, a0206, cal15012, dra0728, drb2570, drb7530, f032113835, lra02315, sg12b024, 8el012428721, 1656ir, 1986a00855, 11123r, 11124n, 11124r, 111845, 119903, 209213, 209213a, 284808, 301656ri, 437312, 439307, 2542320, 2542320a, 2542320b, 2542320c, 9047530, 12042560, 12047530, 32042560, 0111542602, 0111542702, 0111546202, 0124515055, 0124515130, 0124515131, 0131548002, 555936120, 0986042560, 0986042563, 0986047530, 0986047533, 0986047534, 0986047537, 2251421202, 011154270280, 011154270283, 011154620280, 013154800280, 013154800283, 944390425600
