Article no.: F032113856

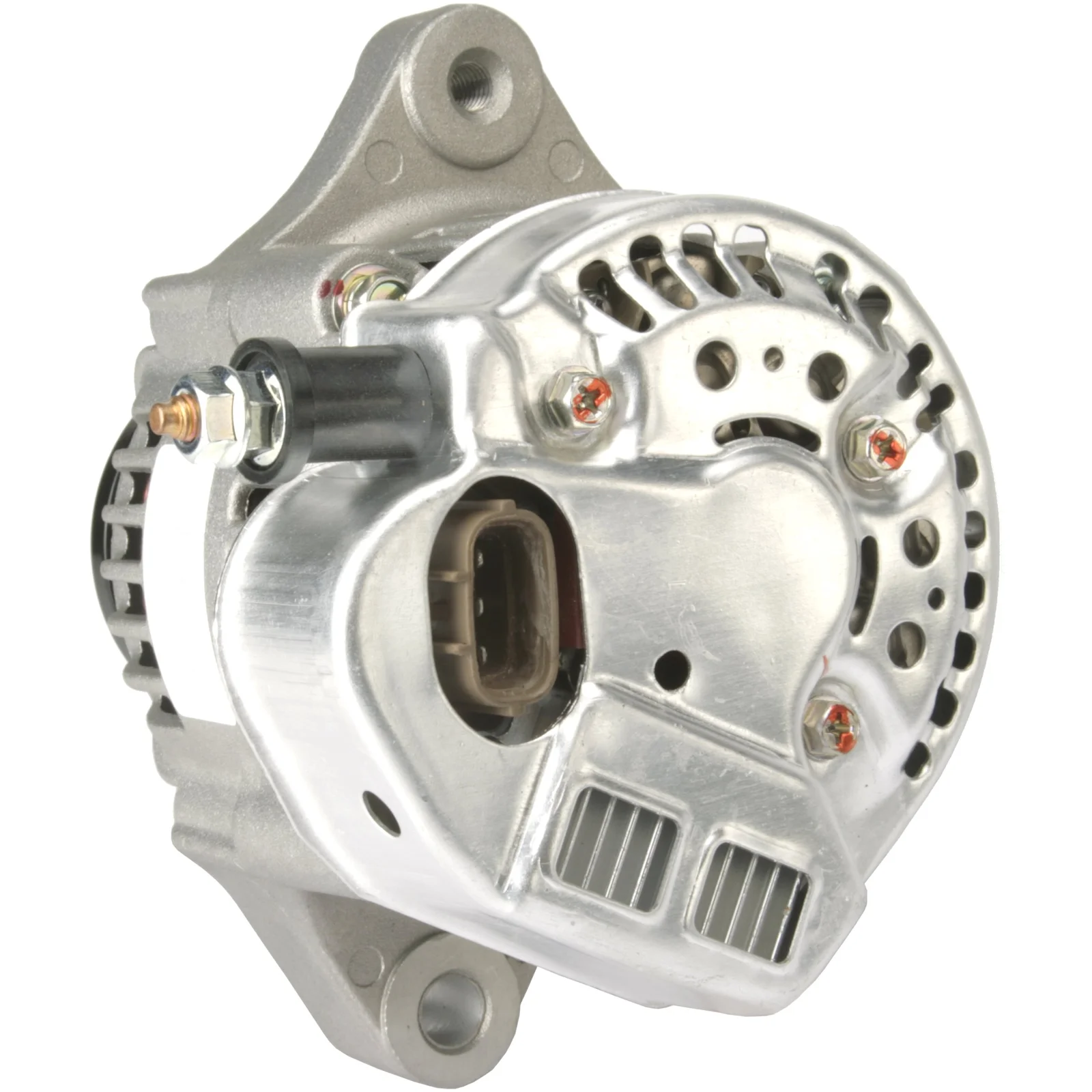

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 40, Rotation: CW, Radius: 70.00

Description

Kubota Alternator 12V-40A 12V - 40A, 1V , (P, IG, L) Clutch/End cover 138mm For Yourex product order 90-293-4730 Voltage: 14 Amp: 40 Width/holder arm: 24.20 Bracket hole: 10.50 Belt. adj. brackethole pos.: 60 Belt. adj. bracket hole 1: M8 Radius: 70.00 Radius 2: 67.50 B+: M6 Position/B+ in min.: 48 D+ Size: Plug Rotation: CW Plug no.: PL128 Total length mm: 143.50 Pulley: without Alternator regulator type: IR Product info: BN Servicing: Kubota

Files

  • OEM
    F032113856, 1G012-64011, 1G090-64010, 16678-64011, 16678-64012, 16678-64013, 100211-4730, 100211-4731, 100211-4732, 100211-4733

  • Normalised article numbler
    a6212, a6212denso, a80086, act30007, and0237, cal40125, dan2027, dra0347, f032113856, lra02208, lra2208, 1g01264011, 1g09064010, 8el015643361, 9711, 12202n, 119902, 284677, 553025ri, 90295295, 1002114730, 1002114731, 1002114732, 1002114733, 1667864011, 1667864012, 1667864013
  • Description
    Kubota Alternator 12V-40A 12V - 40A, 1V , (P, IG, L) Clutch/End cover 138mm For Yourex product order 90-293-4730 Voltage: 14 Amp: 40 Width/holder arm: 24.20 Bracket hole: 10.50 Belt. adj. brackethole pos.: 60 Belt. adj. bracket hole 1: M8 Radius: 70.00 Radius 2: 67.50 B+: M6 Position/B+ in min.: 48 D+ Size: Plug Rotation: CW Plug no.: PL128 Total length mm: 143.50 Pulley: without Alternator regulator type: IR Product info: BN Servicing: Kubota

    Files

  • Suitable for these vehicles

    • OEM
      F032113856, 1G012-64011, 1G090-64010, 16678-64011, 16678-64012, 16678-64013, 100211-4730, 100211-4731, 100211-4732, 100211-4733

    • Normalised article numbler
      a6212, a6212denso, a80086, act30007, and0237, cal40125, dan2027, dra0347, f032113856, lra02208, lra2208, 1g01264011, 1g09064010, 8el015643361, 9711, 12202n, 119902, 284677, 553025ri, 90295295, 1002114730, 1002114731, 1002114732, 1002114733, 1667864011, 1667864012, 1667864013
