HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113898

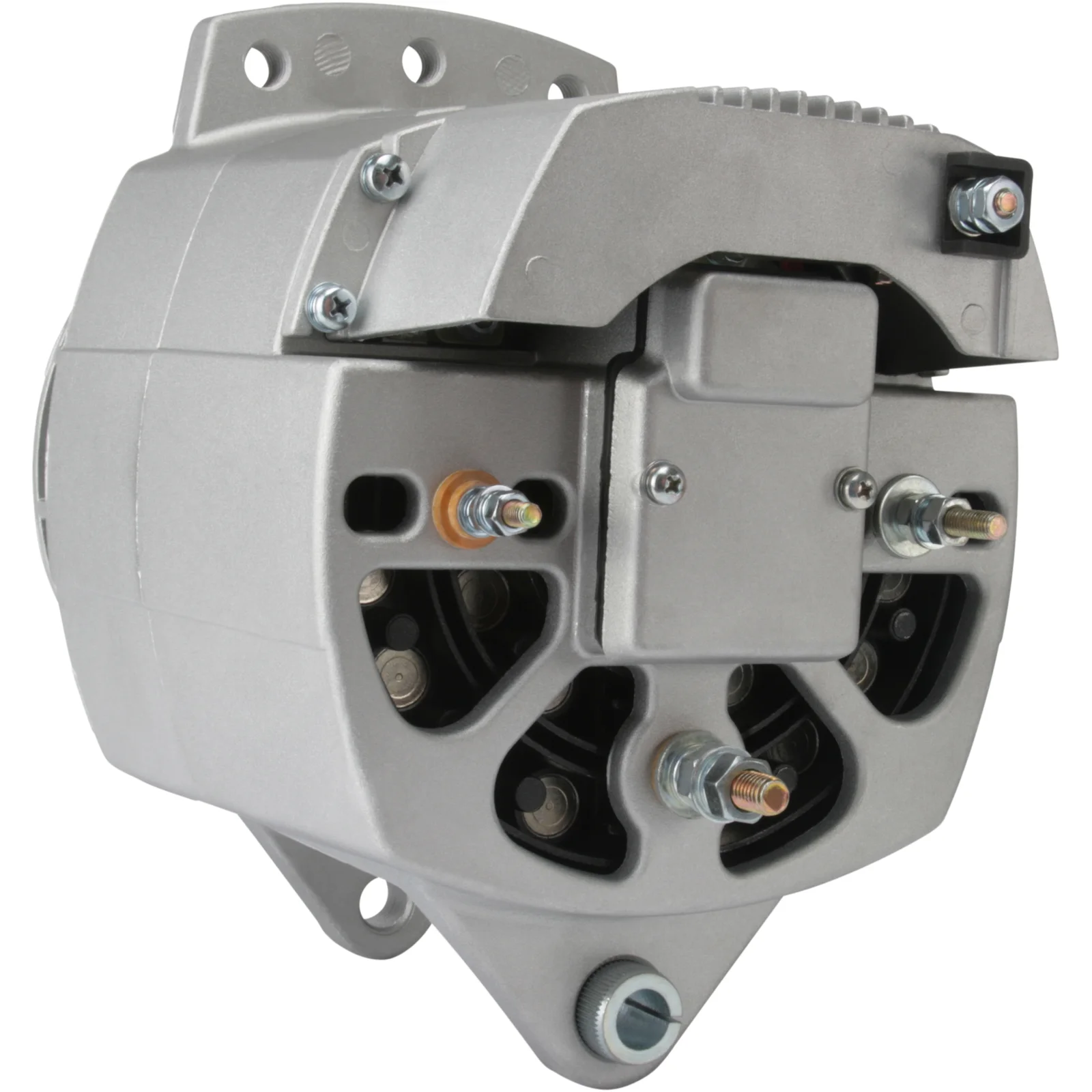

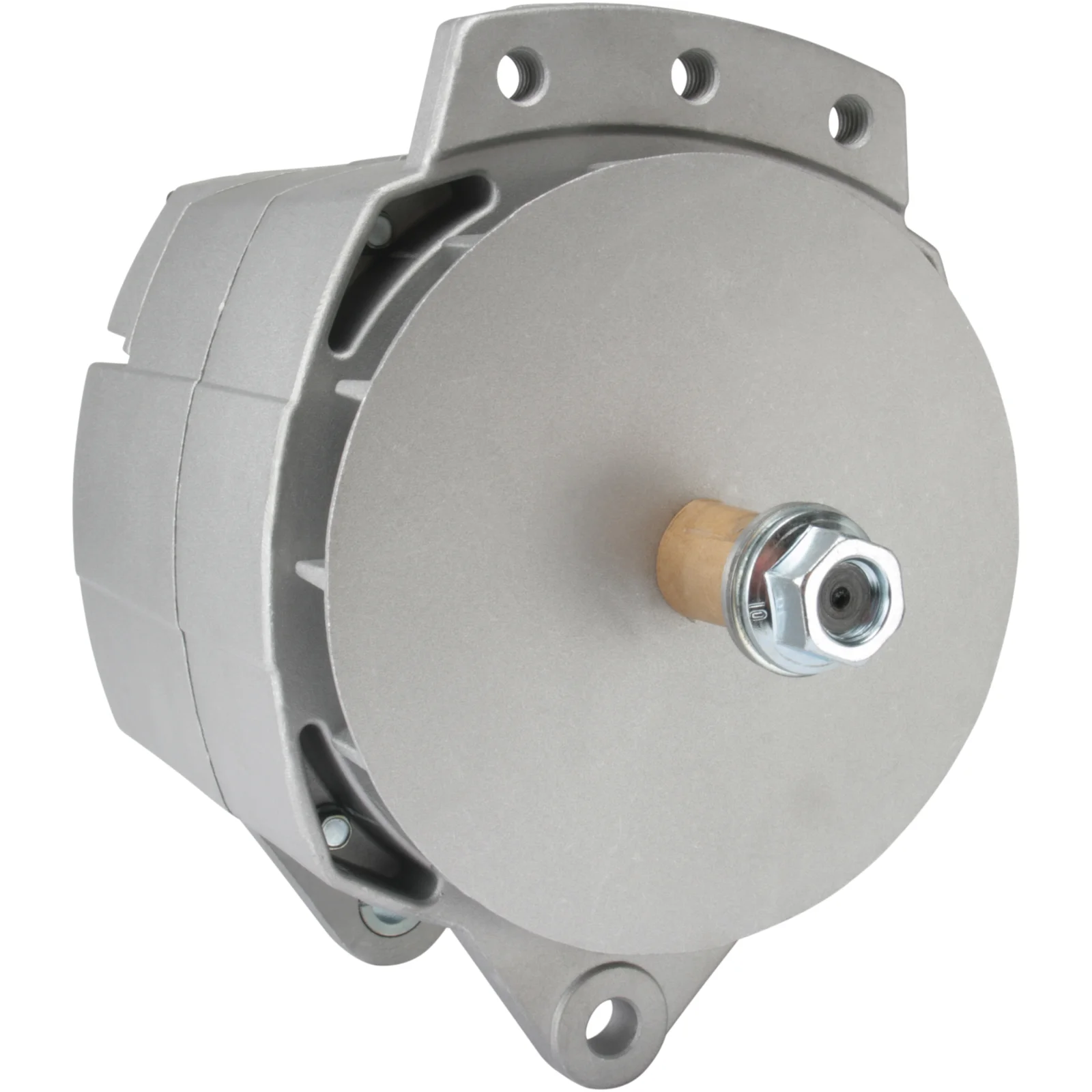

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 185, Rotation: CW, Mounting bracket dist.: 103.00

Description

Voltage: 14
Amp: 185
Insulated return: Yes
Terminal: W
Width/holder arm: 14.00
Mounting bracket distance: 103.00
Bracket hole: 13.00
Belt adjustment bracket hole position: 56
Belt adjustment bracket hole position 3: 4
Belt adjustment bracket hole position 2: 60
Belt adjustment bracket hole 1: M12
Belt adjustment bracket hole 2: M12
Belt adjustment bracket hole 3: M12
Radius: 107.50
Radius 2: 103.00
Radius 3: 106.50
Radius 4: 106.50
B+: M8
Position/B+ in min.: 30
D+ Size: M5
Rotation: CW
W plug type: M6
Total length mm: 263.00
Pulley: w/o
Regulator type: IR
Prod. info: BN

Files

  • OEM
    F032113898, 8SC2023, 8SC2023Z, 8SC2282V, 8sc2282VG, 110-565, 86529327, 86975726, 87592254

  • Normalised article numbler
    a9194, alt42004, cal11118, cal11123, f032113898, lra03011, 8sc2023, 8sc2023z, 8sc2282v, 8sc2282vg, 8636n, 20498n, 110565, 285624, 553350ri, 86529327, 86975726, 87592254, 645047220, 705018220, 50012218520
  • Description
    Voltage: 14
    Amp: 185
    Insulated return: Yes
    Terminal: W
    Width/holder arm: 14.00
    Mounting bracket distance: 103.00
    Bracket hole: 13.00
    Belt adjustment bracket hole position: 56
    Belt adjustment bracket hole position 3: 4
    Belt adjustment bracket hole position 2: 60
    Belt adjustment bracket hole 1: M12
    Belt adjustment bracket hole 2: M12
    Belt adjustment bracket hole 3: M12
    Radius: 107.50
    Radius 2: 103.00
    Radius 3: 106.50
    Radius 4: 106.50
    B+: M8
    Position/B+ in min.: 30
    D+ Size: M5
    Rotation: CW
    W plug type: M6
    Total length mm: 263.00
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032113898, 8SC2023, 8SC2023Z, 8SC2282V, 8sc2282VG, 110-565, 86529327, 86975726, 87592254

    • Normalised article numbler
      a9194, alt42004, cal11118, cal11123, f032113898, lra03011, 8sc2023, 8sc2023z, 8sc2282v, 8sc2282vg, 8636n, 20498n, 110565, 285624, 553350ri, 86529327, 86975726, 87592254, 645047220, 705018220, 50012218520
