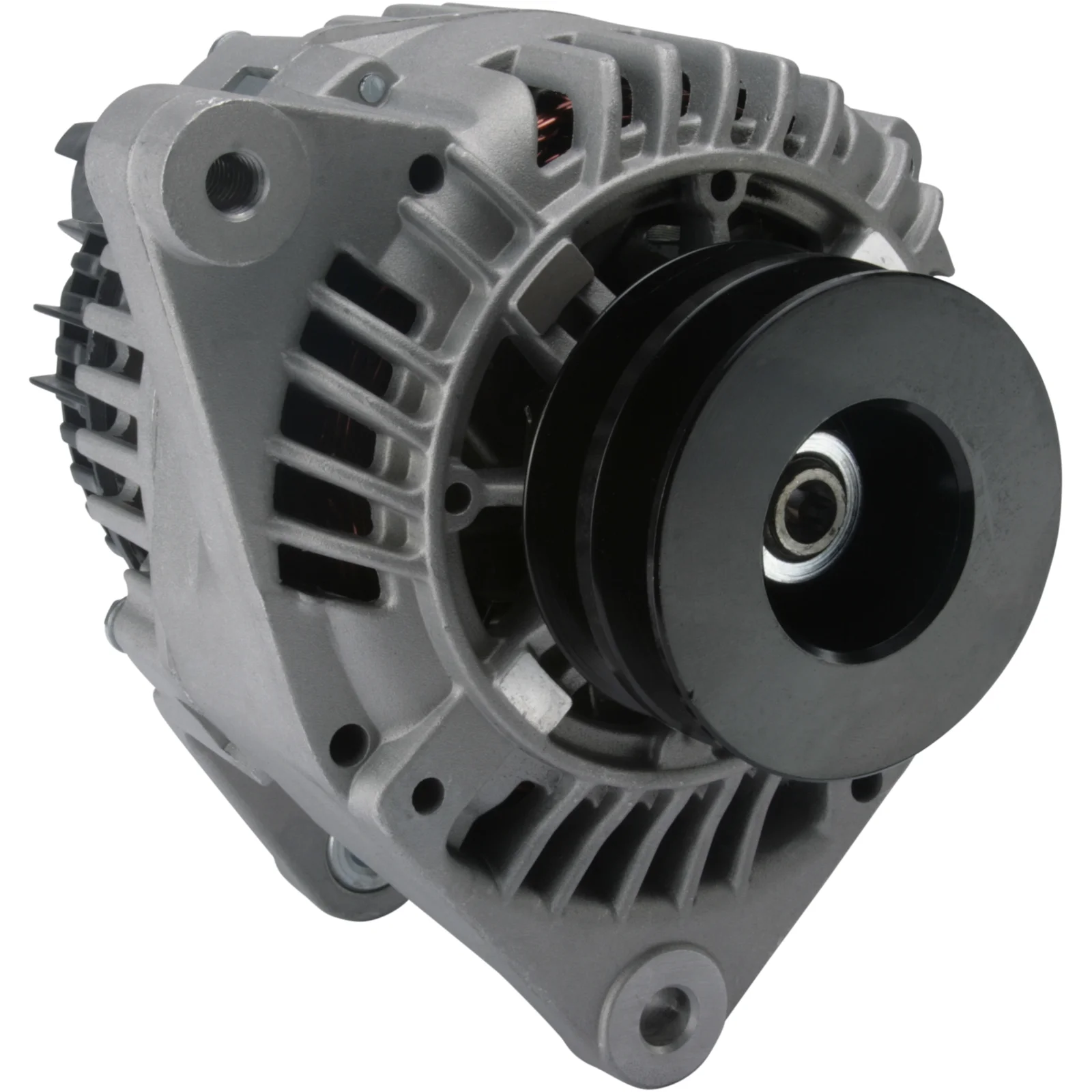

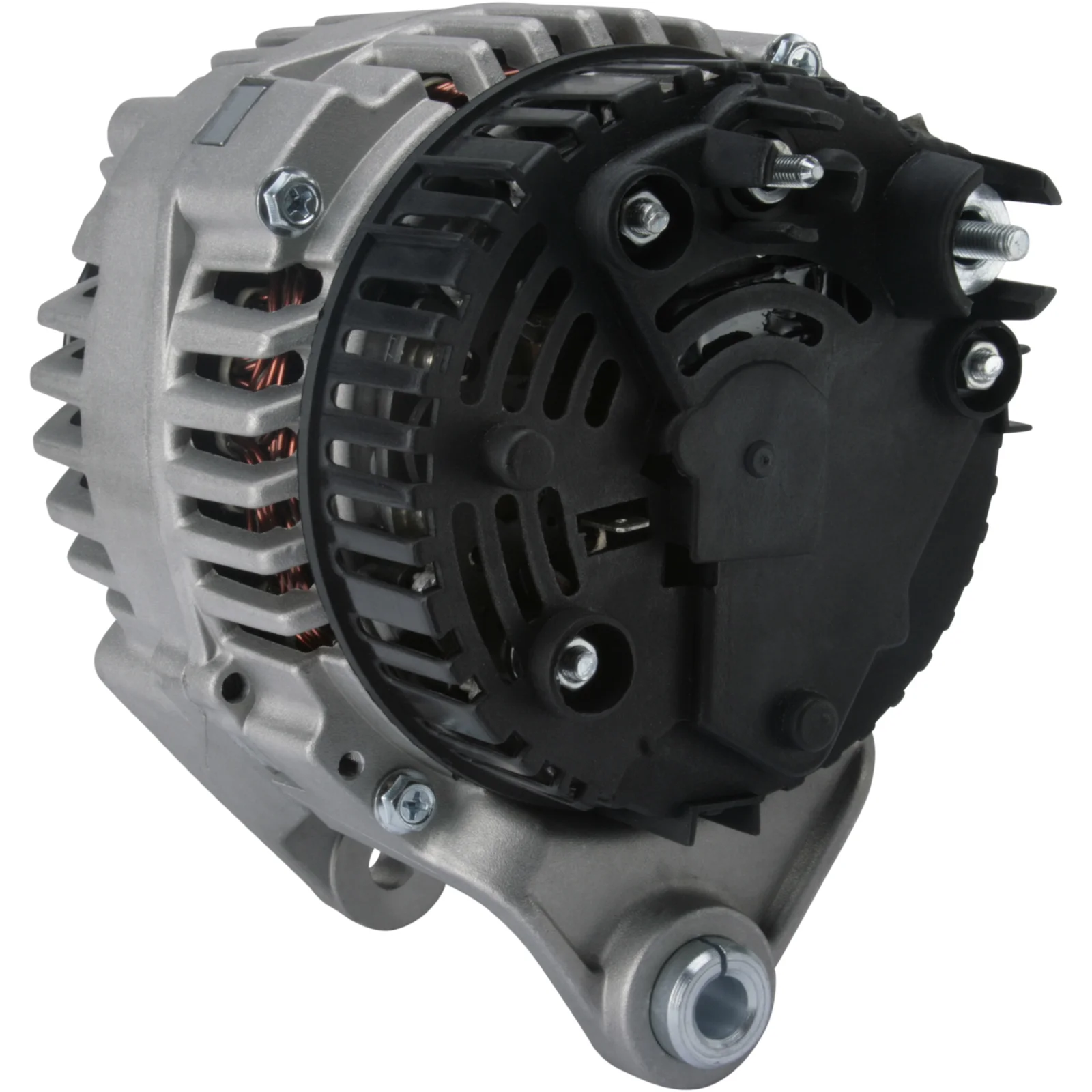

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113961

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 83.00

Description

Voltage: 14
Amp: 120
Terminal: W
Pulley dist.: 29.00
Width/holder arm: 14.30
Mount. bracket dist.: 83.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 50
Belt. adj. bracket hole 1: M10
Pulley dia.: 76.20
Grooves/pulley: 2
Radius: 95.00
Radius 2: 92.00
B+: M6
Position/B+ in min.: 10
D+ Size: M5
Rotation: CW
W plug type: M5
Total length mm: 188.00
Pulley: DP
Alternator type: IR
Prod. info: BN

Files

  • OEM
    a13vi243, F032113961, 2542300, 2542300A, 3780634M1

  • Normalised article numbler
    a13vi243, a3110, a9056, a9056letrika, cal15305, dra0263, f032113961, lea0736, lra02192, 12421n, 553338ri, 2542300, 2542300a, 3780634m1, 12090293
  • Description
    Voltage: 14
    Amp: 120
    Terminal: W
    Pulley dist.: 29.00
    Width/holder arm: 14.30
    Mount. bracket dist.: 83.00
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 50
    Belt. adj. bracket hole 1: M10
    Pulley dia.: 76.20
    Grooves/pulley: 2
    Radius: 95.00
    Radius 2: 92.00
    B+: M6
    Position/B+ in min.: 10
    D+ Size: M5
    Rotation: CW
    W plug type: M5
    Total length mm: 188.00
    Pulley: DP
    Alternator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      a13vi243, F032113961, 2542300, 2542300A, 3780634M1

    • Normalised article numbler
      a13vi243, a3110, a9056, a9056letrika, cal15305, dra0263, f032113961, lea0736, lra02192, 12421n, 553338ri, 2542300, 2542300a, 3780634m1, 12090293
