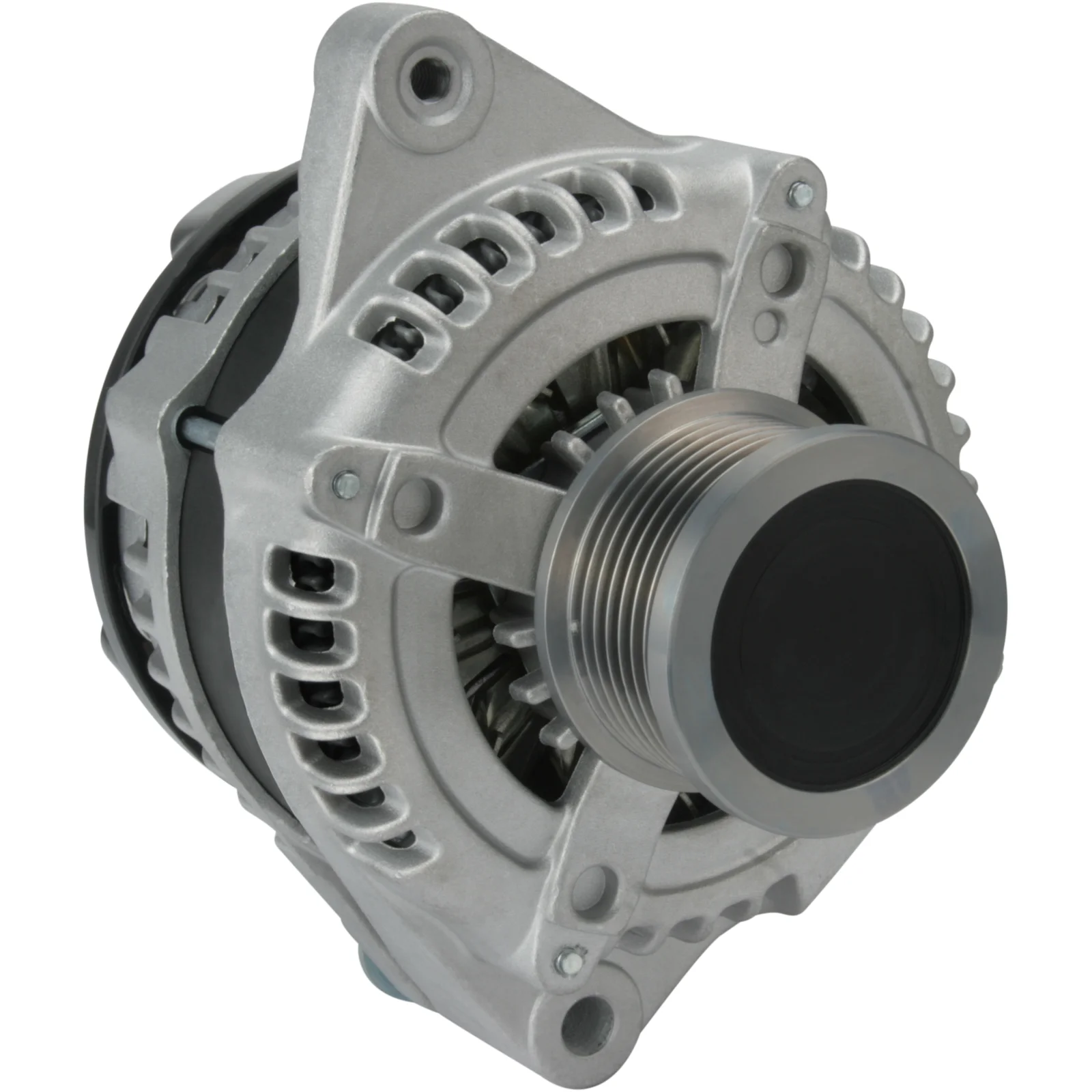

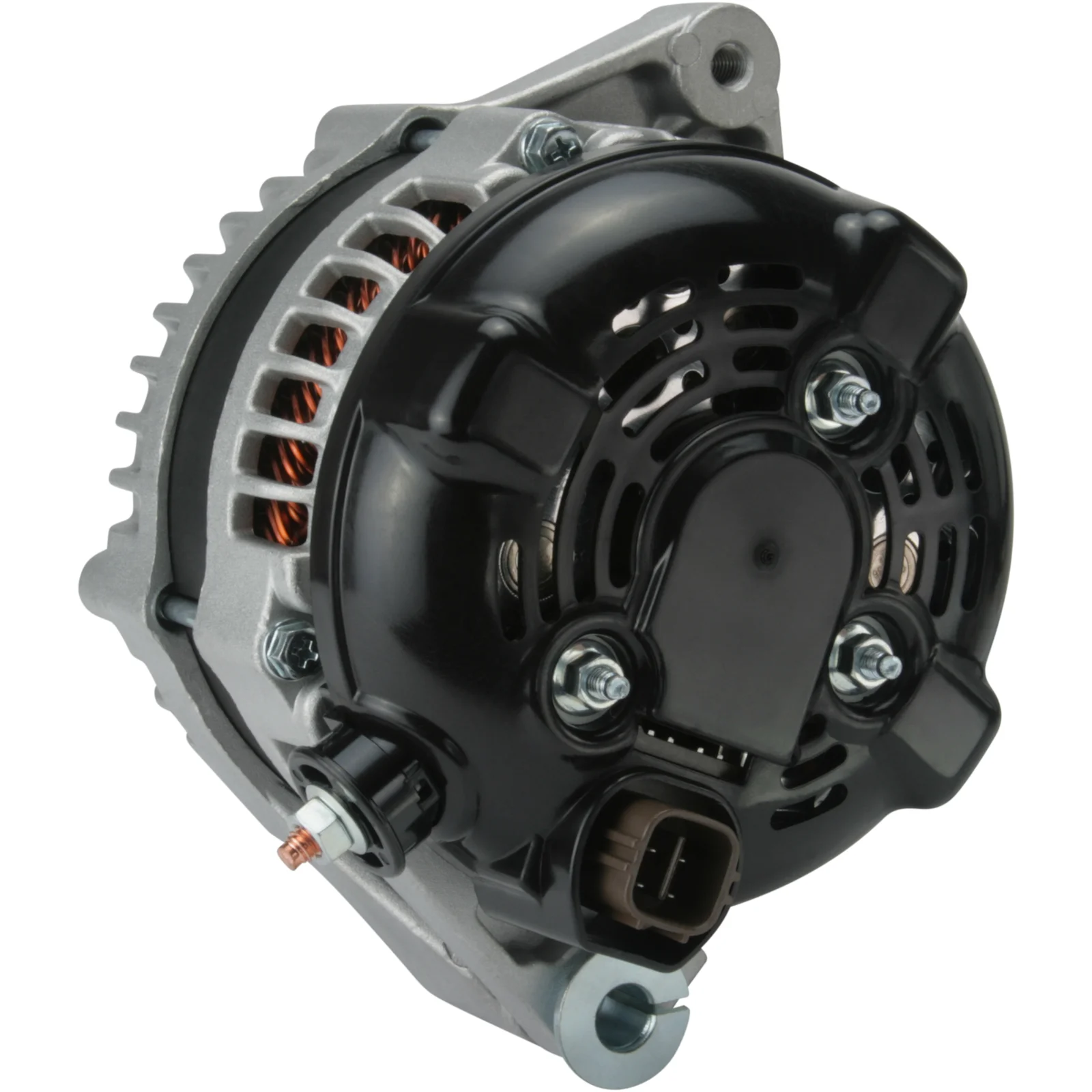

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032113969

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 100, Rotation: CW, Pulley diameter: 58.00

Description

Voltage: 14
Amp: 100
Pulley dist.: 95.00
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. bracket hole pos.: 56
Belt. adj. bracket hole 1: M8
Pulley dia.: 58.00
Grooves/pulley: 7
Radius: 83.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Terminal type: S-IG-L-DF/DFM
Pulley: SP/FW
Fan: IF
Regulator type: IR

Files

  • OEM
    F032113969, 2069ir, 27060-30060, 27060-30130, 27060-30131, 27060-30210, 104210-3410, 104210-3411, 104210-5440, 104210-5441, 104210-5442

  • Normalised article numbler
    a6041, a6527s, cal40225, cal40293, dan1070, dra0246, f032113969, f042205238, lra03067, 8el011713121, 2069ir, 24056r, 112673, 112787, 210775, 210775a, 285679, 440516, 553219ri, 9090514, 12060863, 0986082010, 1042103410, 1042103411, 1042105440, 1042105441, 1042105442, 2351871002, 2706030060, 2706030130, 2706030131, 2706030210
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 95.00
    Width/holder arm: 58.00
    Bracket hole: 10.50
    Belt. adj. bracket hole pos.: 56
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 58.00
    Grooves/pulley: 7
    Radius: 83.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL78
    Terminal type: S-IG-L-DF/DFM
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032113969, 2069ir, 27060-30060, 27060-30130, 27060-30131, 27060-30210, 104210-3410, 104210-3411, 104210-5440, 104210-5441, 104210-5442

    • Normalised article numbler
      a6041, a6527s, cal40225, cal40293, dan1070, dra0246, f032113969, f042205238, lra03067, 8el011713121, 2069ir, 24056r, 112673, 112787, 210775, 210775a, 285679, 440516, 553219ri, 9090514, 12060863, 0986082010, 1042103410, 1042103411, 1042105440, 1042105441, 1042105442, 2351871002, 2706030060, 2706030130, 2706030131, 2706030210
