HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114188

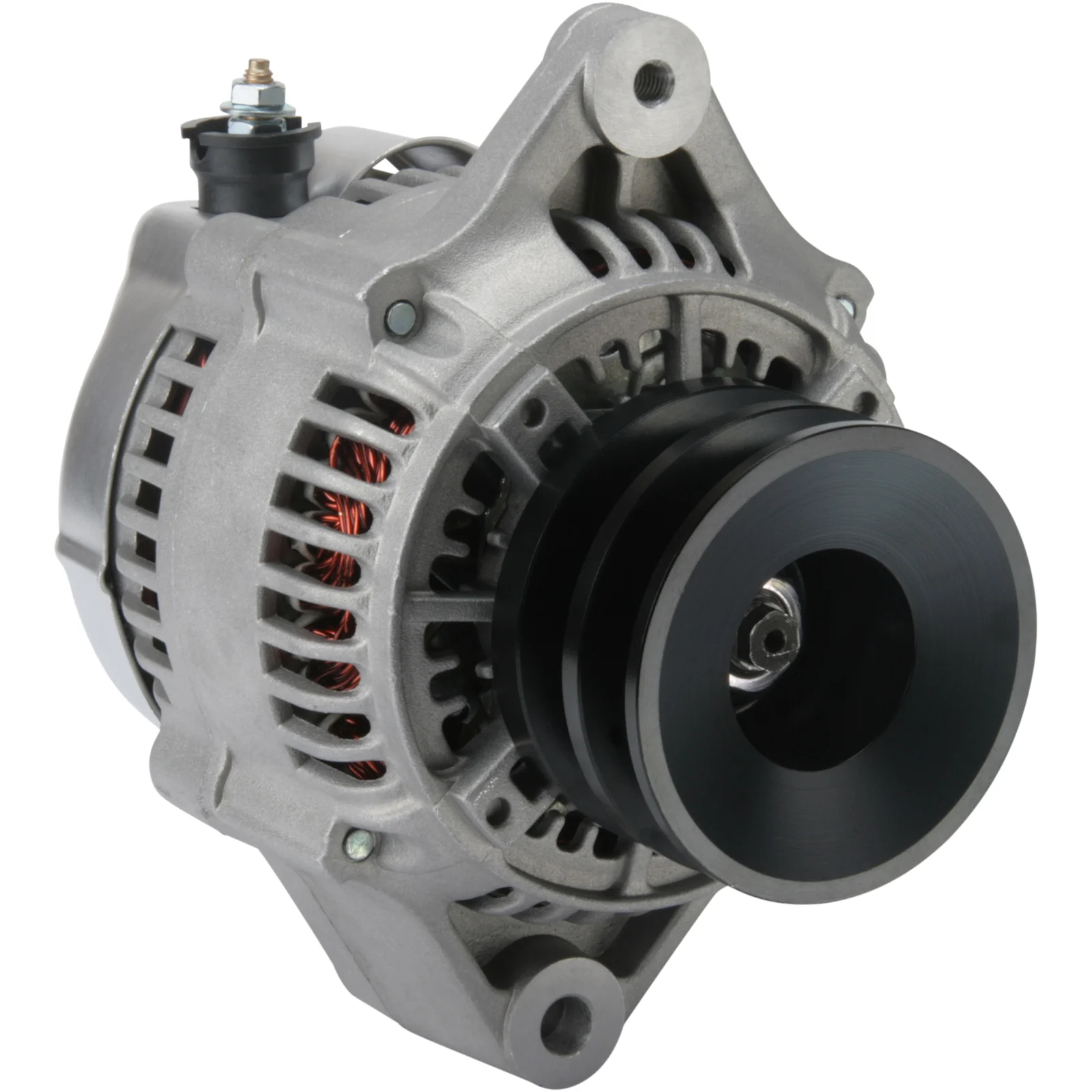

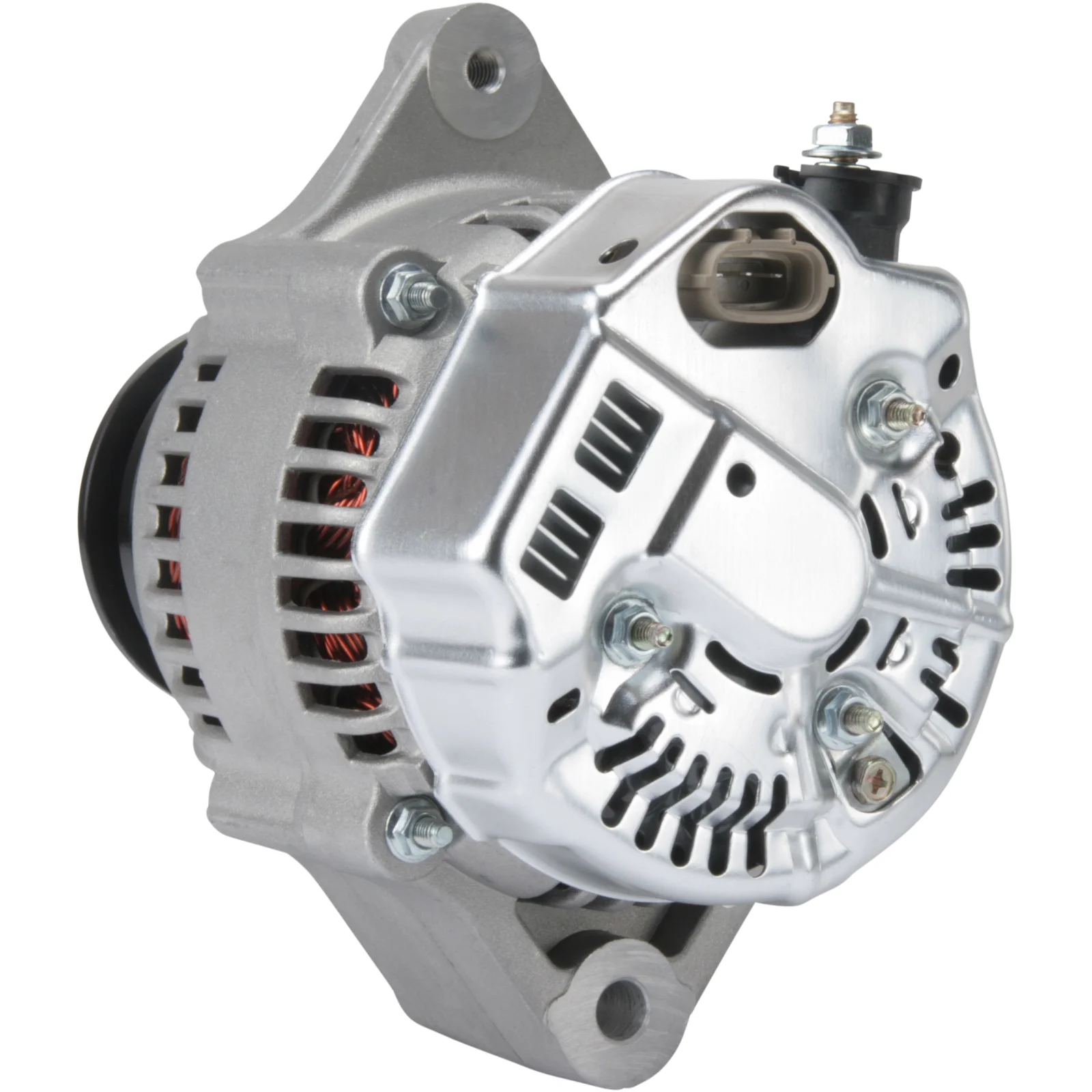

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 90, Rotation: CW, Pulley diameter: 78.30

Description

Voltage: 14
Amp: 90
Pulley dist.: 97.00
Width/holder arm: 58.00
Bracket hole: 10.30
Belt. adj. bracket hole position: 60
Belt. adj. bracket hole 1: M8
Pulley diameter: 78.30
Grooves/pulley: 2
Radius: 78.50
Radius 2: 84.00
B+: M6
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL128
Total length mm: 177.00
Pulley: DP
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    F032114188, 105-2813, 105-2814, 101211-9010, 101211-9020

  • Normalised article numbler
    a6679denso, a6695s, cal40141, cal40588, dan2033, f032114188, 2450, 12192, 12192n, 12192r, 287666, 1052813, 1052814, 1012119010, 1012119020
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 97.00
    Width/holder arm: 58.00
    Bracket hole: 10.30
    Belt. adj. bracket hole position: 60
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 78.30
    Grooves/pulley: 2
    Radius: 78.50
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL128
    Total length mm: 177.00
    Pulley: DP
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114188, 105-2813, 105-2814, 101211-9010, 101211-9020

    • Normalised article numbler
      a6679denso, a6695s, cal40141, cal40588, dan2033, f032114188, 2450, 12192, 12192n, 12192r, 287666, 1052813, 1052814, 1012119010, 1012119020
