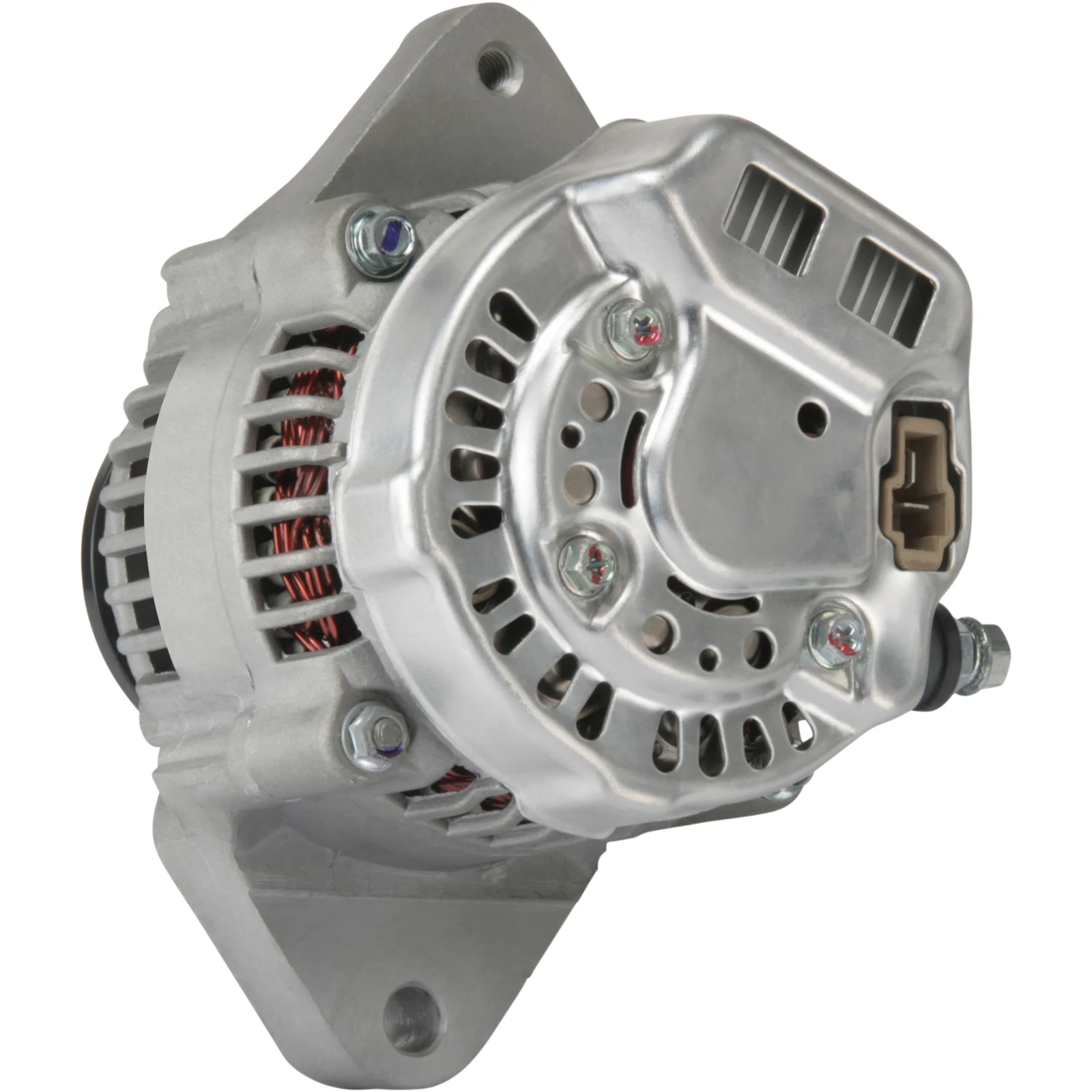

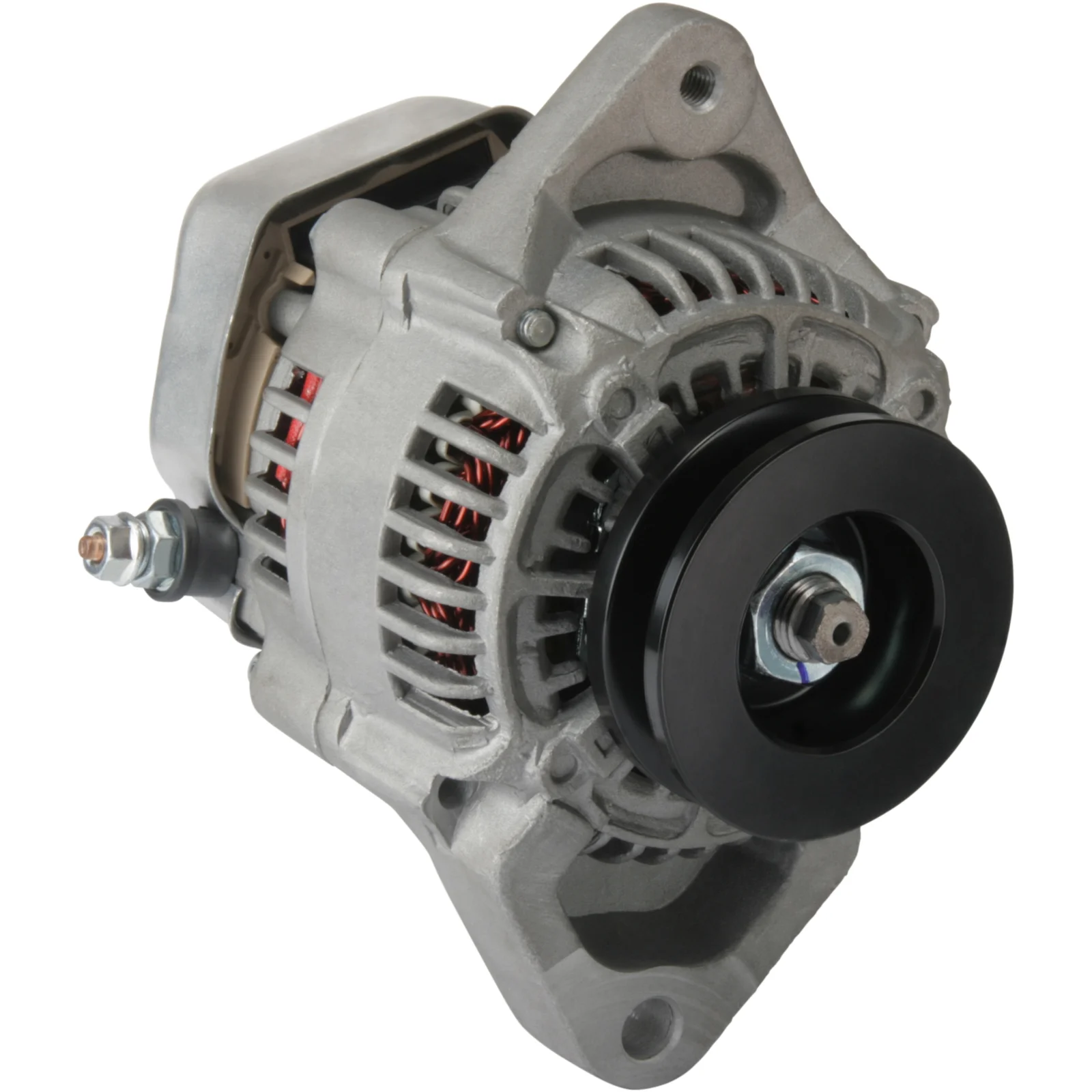

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114190

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 60, Rotation: CW, Pulley diameter: 69.50

Description

Voltage: 14
Amp: 60
Pulley dist.: 43.50
Width/holder arm: 21.50
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 69.50
Grooves/pulley: 1
Radius: 78.00
Radius 2: 75.00
B+: M6
Position/B+ in min.: 48
Rotation: CW
Plug no.: PL10
Pulley: P
Alternator type: IR
Prod. info: BN

Files

  • Description
    Voltage: 14
    Amp: 60
    Pulley dist.: 43.50
    Width/holder arm: 21.50
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 69.50
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 75.00
    B+: M6
    Position/B+ in min.: 48
    Rotation: CW
    Plug no.: PL10
    Pulley: P
    Alternator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles
