HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114200

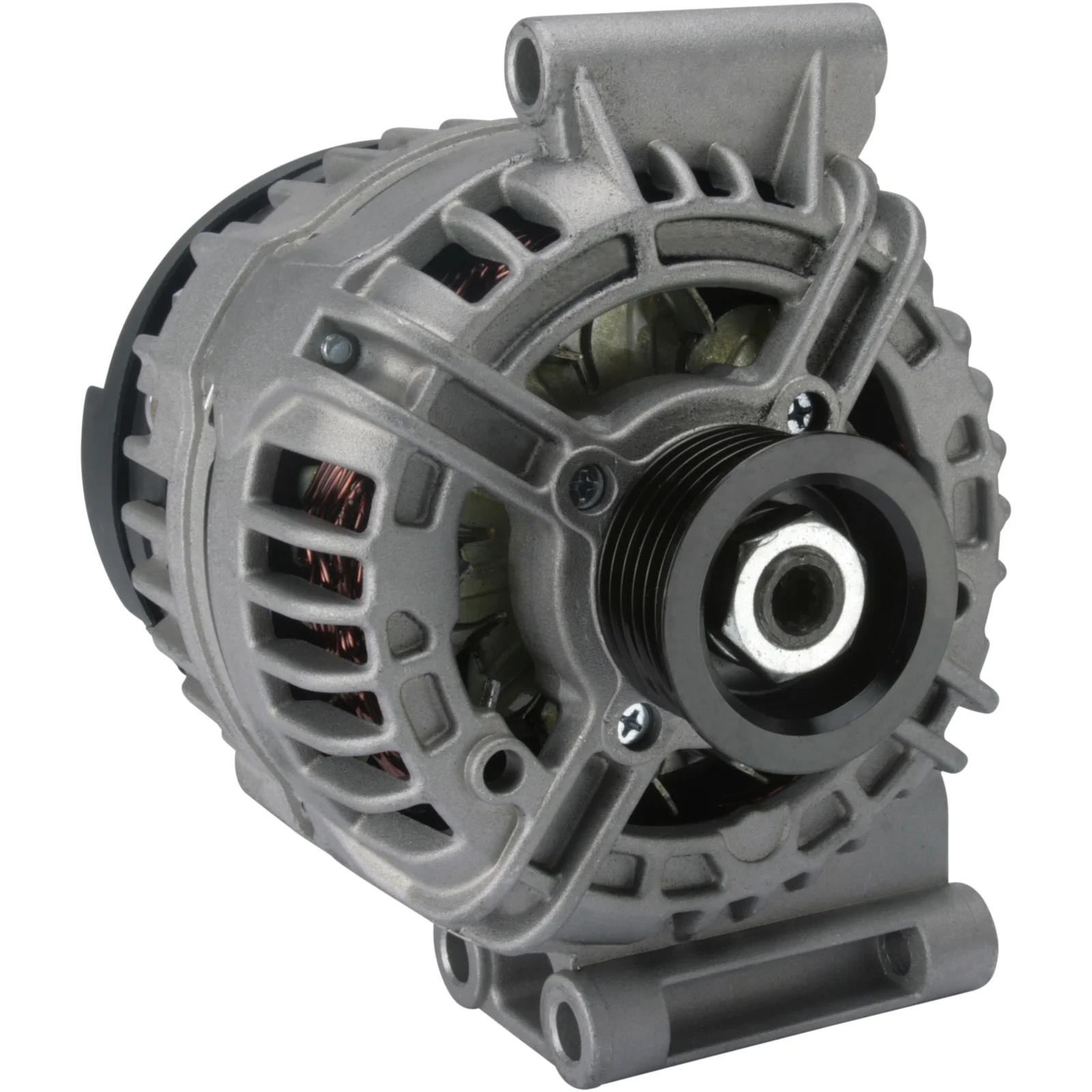

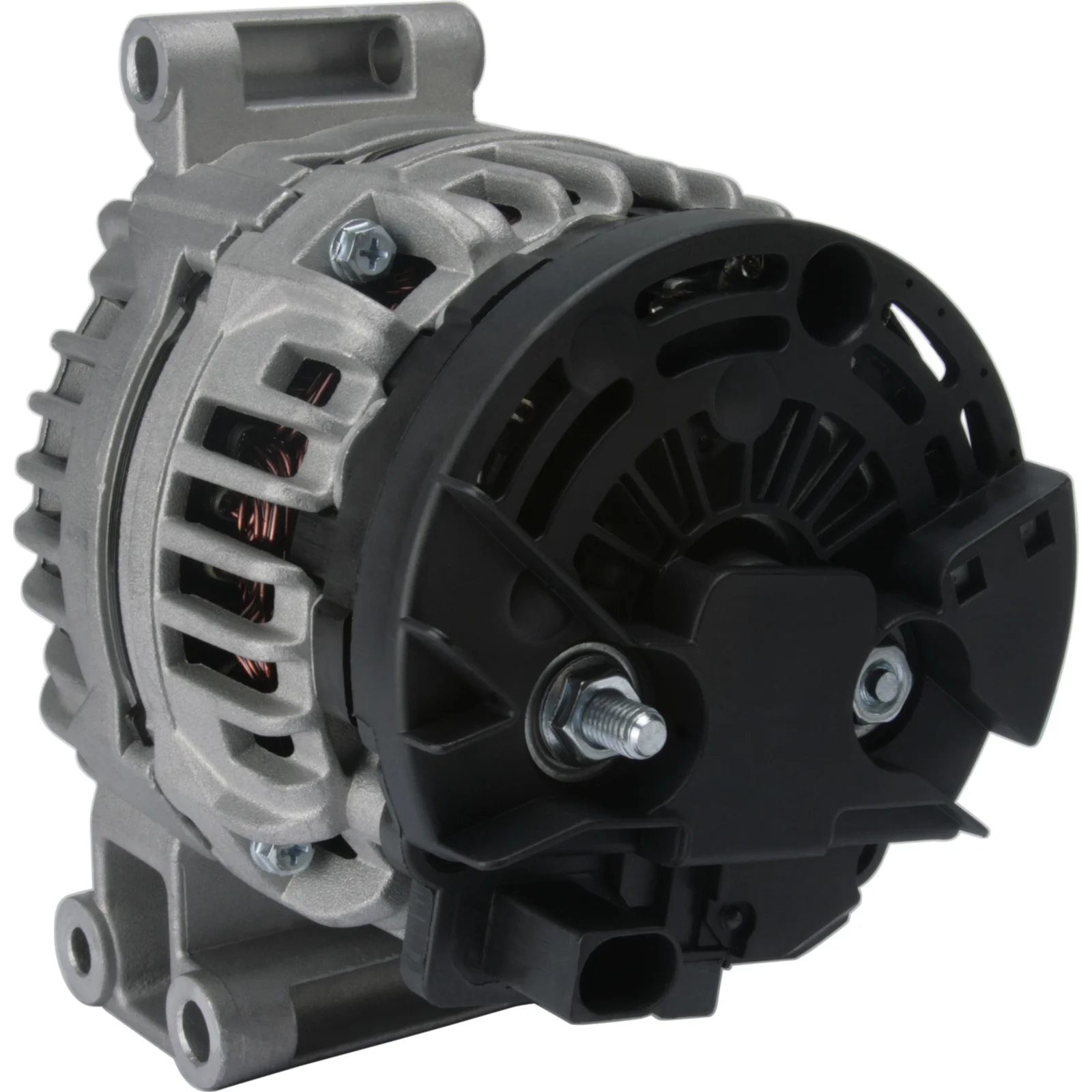

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 100, Rotation: CW, Pulley diameter: 47.00

Description

Voltage: 14
Amp: 100
Pulley dist.: 18.50
Width/holder arm: 81.00
Bracket hole: 10.00
Belt. adj. bracket hole 1: 10.00
Pulley dia.: 47.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL103
Total length mm: 169.00
Pulley: Alternator

Files

  • OEM
    F032114200, 1867ir, 7523897, 0124325108, 12317523897

  • Normalised article numbler
    a0159, a0159pr, alth202, cal10251, drb7220, f032114200, f042a0h202, 8el012428411, 1867ir, 11332r, 11333n, 111796, 210887, 210887a, 285554, 301867ri, 440917, 443263, 443304, 444221, 7523897, 12047220, 0124325108, 0986047220, 0986047227, 2151521002, 12317523897
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 18.50
    Width/holder arm: 81.00
    Bracket hole: 10.00
    Belt. adj. bracket hole 1: 10.00
    Pulley dia.: 47.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL103
    Total length mm: 169.00
    Pulley: Alternator

    Files

  • Suitable for these vehicles

    • OEM
      F032114200, 1867ir, 7523897, 0124325108, 12317523897

    • Normalised article numbler
      a0159, a0159pr, alth202, cal10251, drb7220, f032114200, f042a0h202, 8el012428411, 1867ir, 11332r, 11333n, 111796, 210887, 210887a, 285554, 301867ri, 440917, 443263, 443304, 444221, 7523897, 12047220, 0124325108, 0986047220, 0986047227, 2151521002, 12317523897
