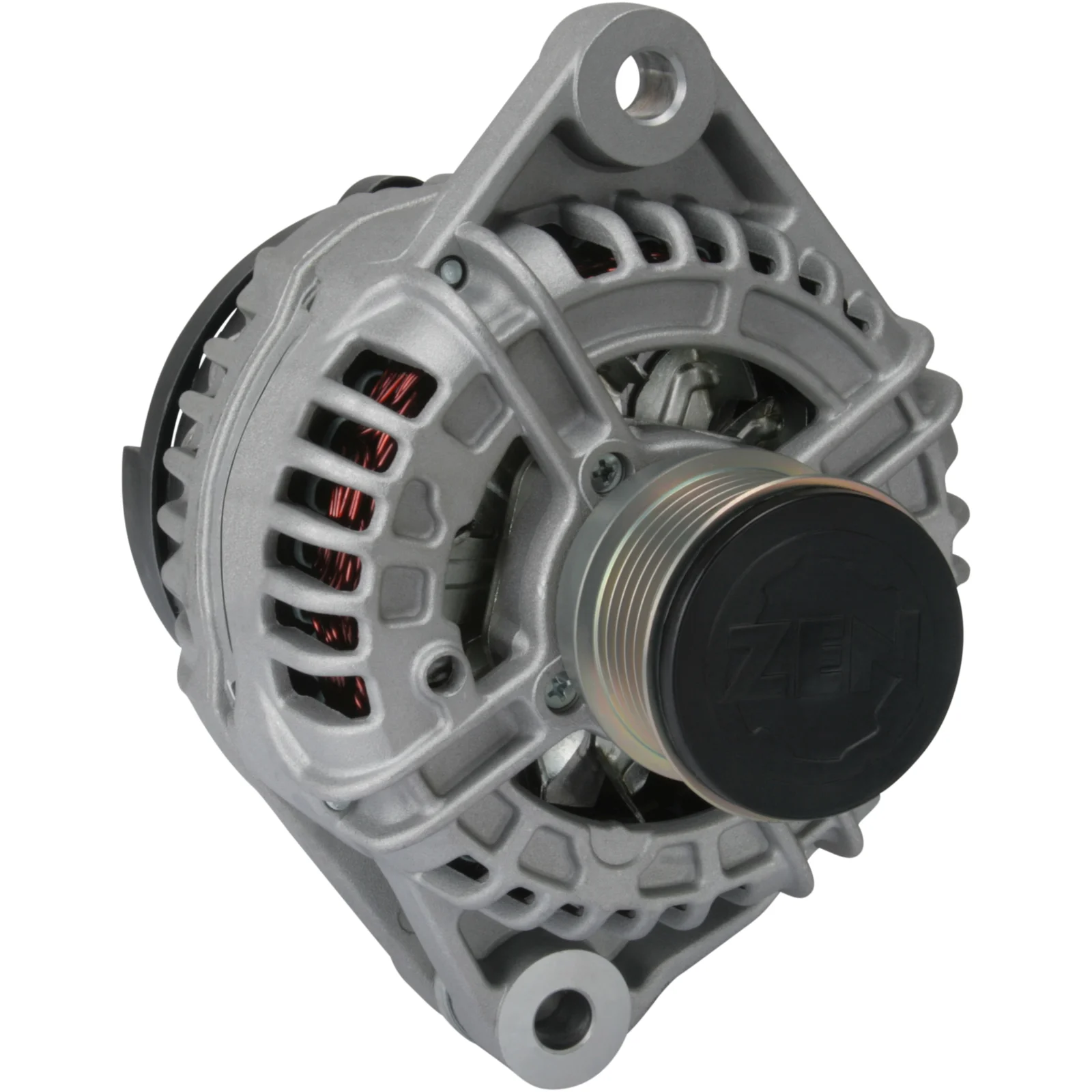

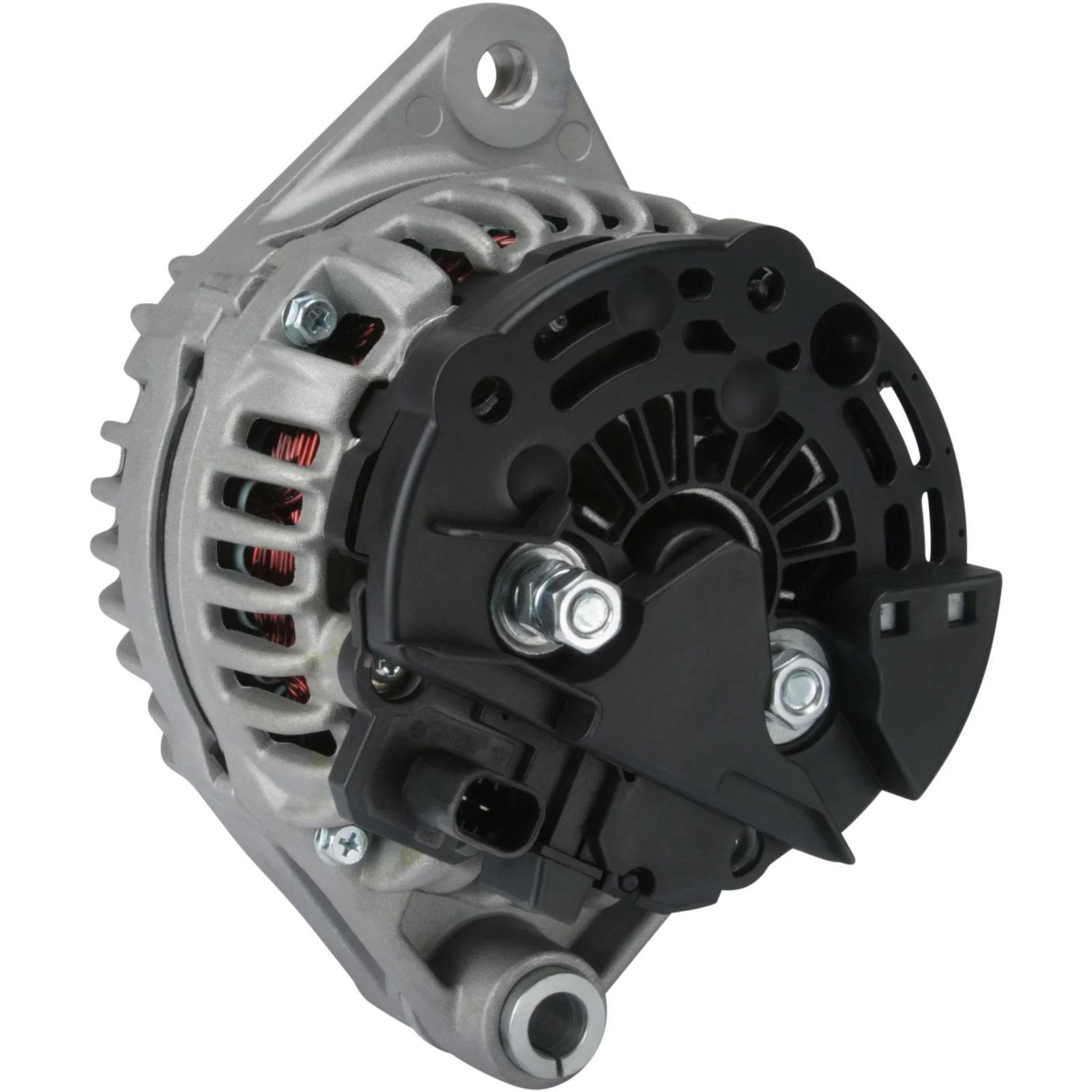

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114202

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 100, Pulley diameter: 54.00, Radius: 90.00

Description

Voltage: 14
Amp: 100
Pulley dist.: 113.00
Width/holder arm: 61.00
Bracket hole: 12.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 12.50
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 40
Plug no.: PL75
Total length mm: 191.00
Terminal type: L-DFM
Pulley: SP/FW
Regulator type: IR

Files

  • OEM
    F032114202, 1986A00528, 2005ir, 13229990, 13308506, 13308506CW, 0124325172, 0124325221

  • Normalised article numbler
    a0252, a0252pr, a0252sr, a1029, cal10439, dra0441, dra0441n, dra0441x, f032114202, 8el738212621, 1986a00528, 2005ir, 20007r, 20079n, 112891, 210826, 210826a, 285885, 439999, 440795, 440796, 553270ri, 12090304, 13229990, 13308506, 13308506cw, 0124325172, 0124325221, 0986081410, 2281751002
  • Description
    Voltage: 14
    Amp: 100
    Pulley dist.: 113.00
    Width/holder arm: 61.00
    Bracket hole: 12.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 12.50
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 40
    Plug no.: PL75
    Total length mm: 191.00
    Terminal type: L-DFM
    Pulley: SP/FW
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114202, 1986A00528, 2005ir, 13229990, 13308506, 13308506CW, 0124325172, 0124325221

    • Normalised article numbler
      a0252, a0252pr, a0252sr, a1029, cal10439, dra0441, dra0441n, dra0441x, f032114202, 8el738212621, 1986a00528, 2005ir, 20007r, 20079n, 112891, 210826, 210826a, 285885, 439999, 440795, 440796, 553270ri, 12090304, 13229990, 13308506, 13308506cw, 0124325172, 0124325221, 0986081410, 2281751002
