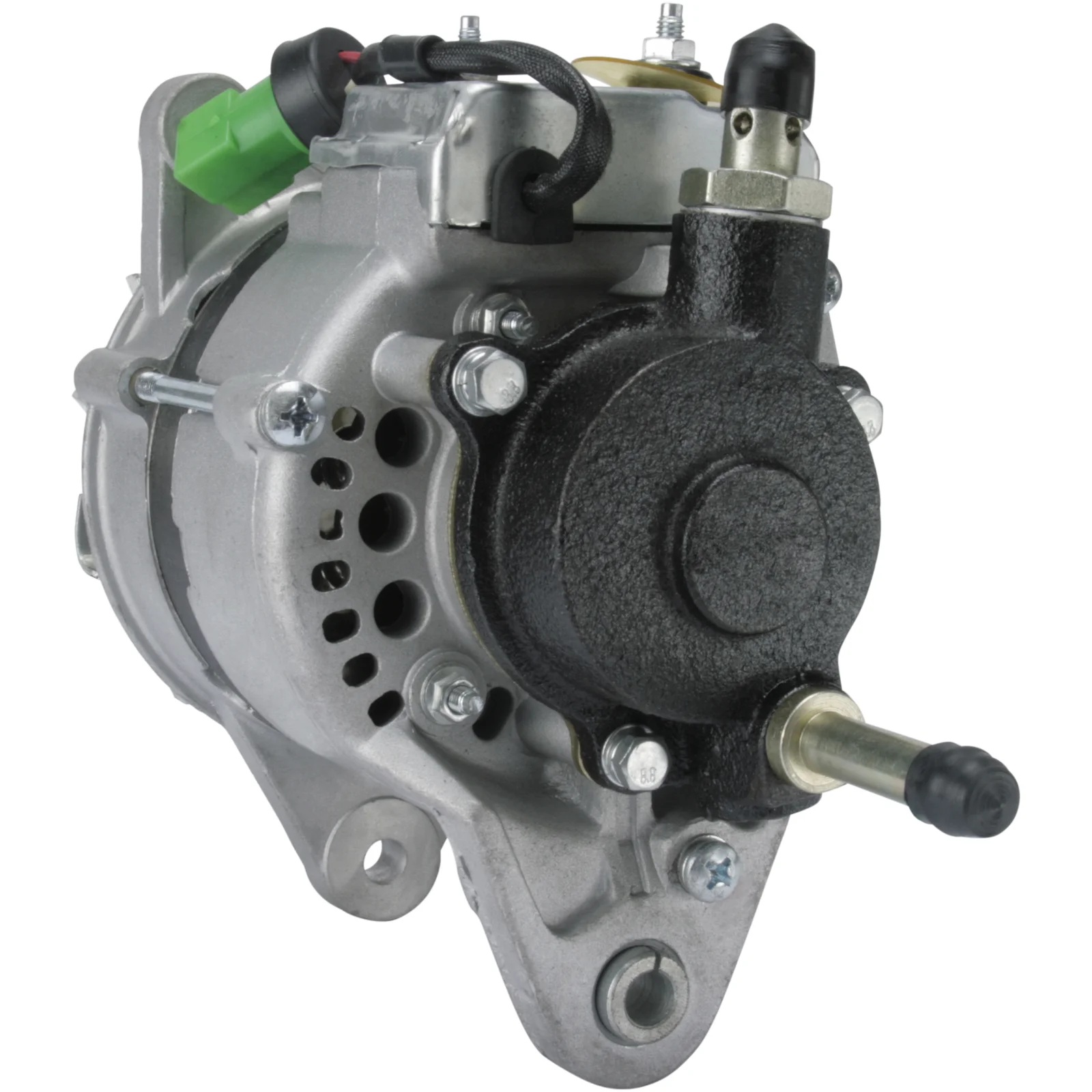

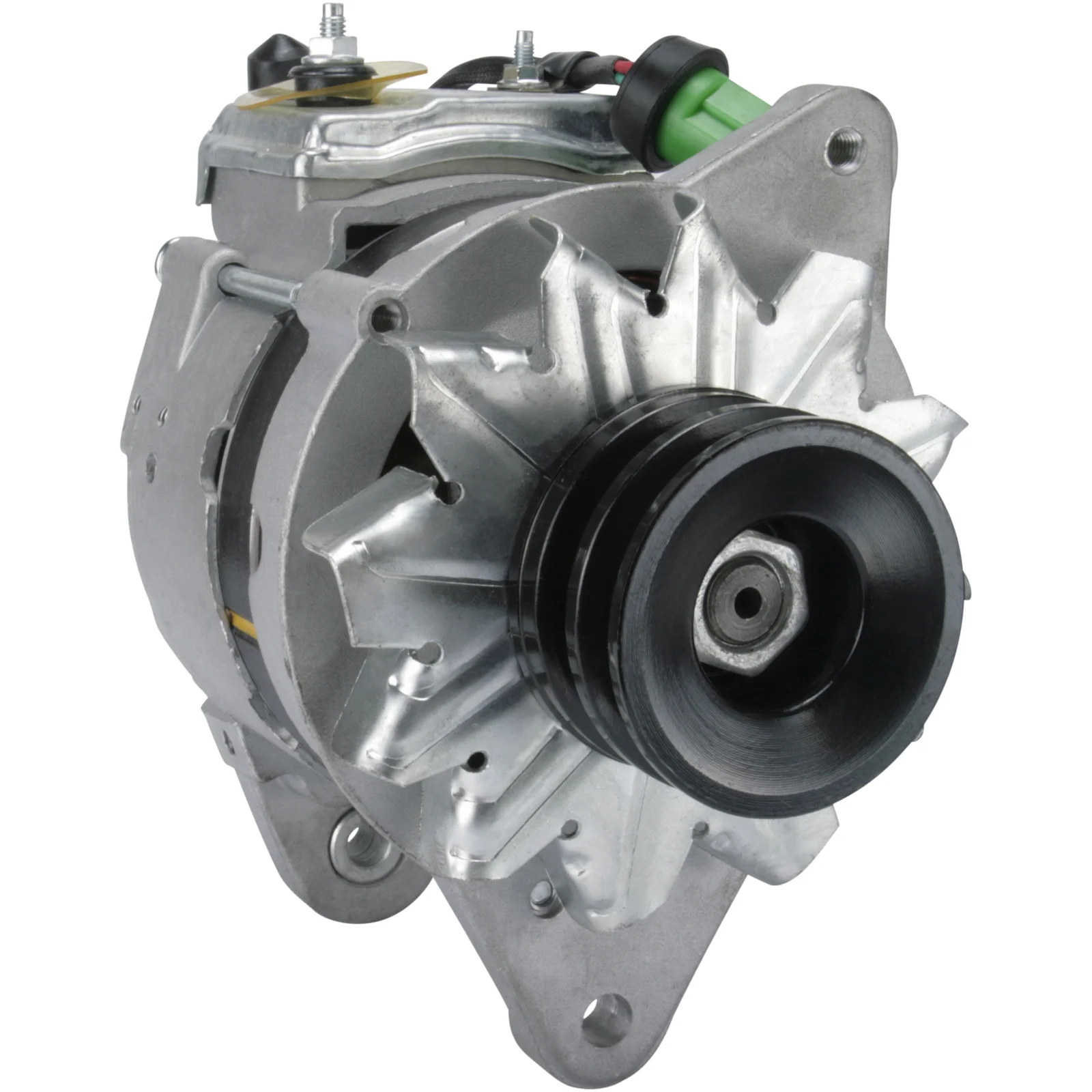

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114203

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 60, Rotation: CW, Mounting bracket distance: 99.00

Description

Voltage: 14
Amp: 60
Pulley dist.: 46.00
Width/holder arm: 13.00
Mount. bracket dist.: 99.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.00
Grooves/pulley: 2
Radius: 84.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 2
Rotation: CW
Plug no.: PL19
Total length mm: 268.00
Pulley: DP
Voltage regulator type: IR
Vacuum pump: Yes

Files

  • OEM
    F032114203, ja799ir, 27020-54150, 27020-54180, 27020-54220, 27020-54542, 27040-54030, 27040-54040, 27040-54050, 27040-54060, 27040-54080, 27040-54100, 27040-54151, 27040-54270, 27040-54271, 27040-54272, 27040-64010, 100213-0220, 100213-0230, 100213-0231, 100213-0250, 100213-0290, 100213-0291, 100213-0770, 100213-0790, 100213-1180, 100213-1300, 100213-1520, 100213-1700, 121000-0730, 121000-0731, 121000-0940, 121000-2730

  • Normalised article numbler
    a6688s, cal44104, dra3049, dra3064, dra3505, f032114203, ja799ir, lra00552, 8el731740001, 5428, 22227, 40799ri, 56078, 119988, 280842, 3951247, 3951296, 12060341, 12060382, 195808060, 235012552, 235121602, 1002130220, 1002130230, 1002130231, 1002130250, 1002130290, 1002130291, 1002130770, 1002130790, 1002131180, 1002131300, 1002131520, 1002131700, 1210000730, 1210000731, 1210000940, 1210002730, 2702054150, 2702054180, 2702054220, 2702054542, 2704054030, 2704054040, 2704054050, 2704054060, 2704054080, 2704054100, 2704054151, 2704054270, 2704054271, 2704054272, 2704064010
  • Description
    Voltage: 14
    Amp: 60
    Pulley dist.: 46.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 99.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 67.00
    Grooves/pulley: 2
    Radius: 84.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 2
    Rotation: CW
    Plug no.: PL19
    Total length mm: 268.00
    Pulley: DP
    Voltage regulator type: IR
    Vacuum pump: Yes

    Files

  • Suitable for these vehicles

    • OEM
      F032114203, ja799ir, 27020-54150, 27020-54180, 27020-54220, 27020-54542, 27040-54030, 27040-54040, 27040-54050, 27040-54060, 27040-54080, 27040-54100, 27040-54151, 27040-54270, 27040-54271, 27040-54272, 27040-64010, 100213-0220, 100213-0230, 100213-0231, 100213-0250, 100213-0290, 100213-0291, 100213-0770, 100213-0790, 100213-1180, 100213-1300, 100213-1520, 100213-1700, 121000-0730, 121000-0731, 121000-0940, 121000-2730

    • Normalised article numbler
      a6688s, cal44104, dra3049, dra3064, dra3505, f032114203, ja799ir, lra00552, 8el731740001, 5428, 22227, 40799ri, 56078, 119988, 280842, 3951247, 3951296, 12060341, 12060382, 195808060, 235012552, 235121602, 1002130220, 1002130230, 1002130231, 1002130250, 1002130290, 1002130291, 1002130770, 1002130790, 1002131180, 1002131300, 1002131520, 1002131700, 1210000730, 1210000731, 1210000940, 1210002730, 2702054150, 2702054180, 2702054220, 2702054542, 2704054030, 2704054040, 2704054050, 2704054060, 2704054080, 2704054100, 2704054151, 2704054270, 2704054271, 2704054272, 2704064010
