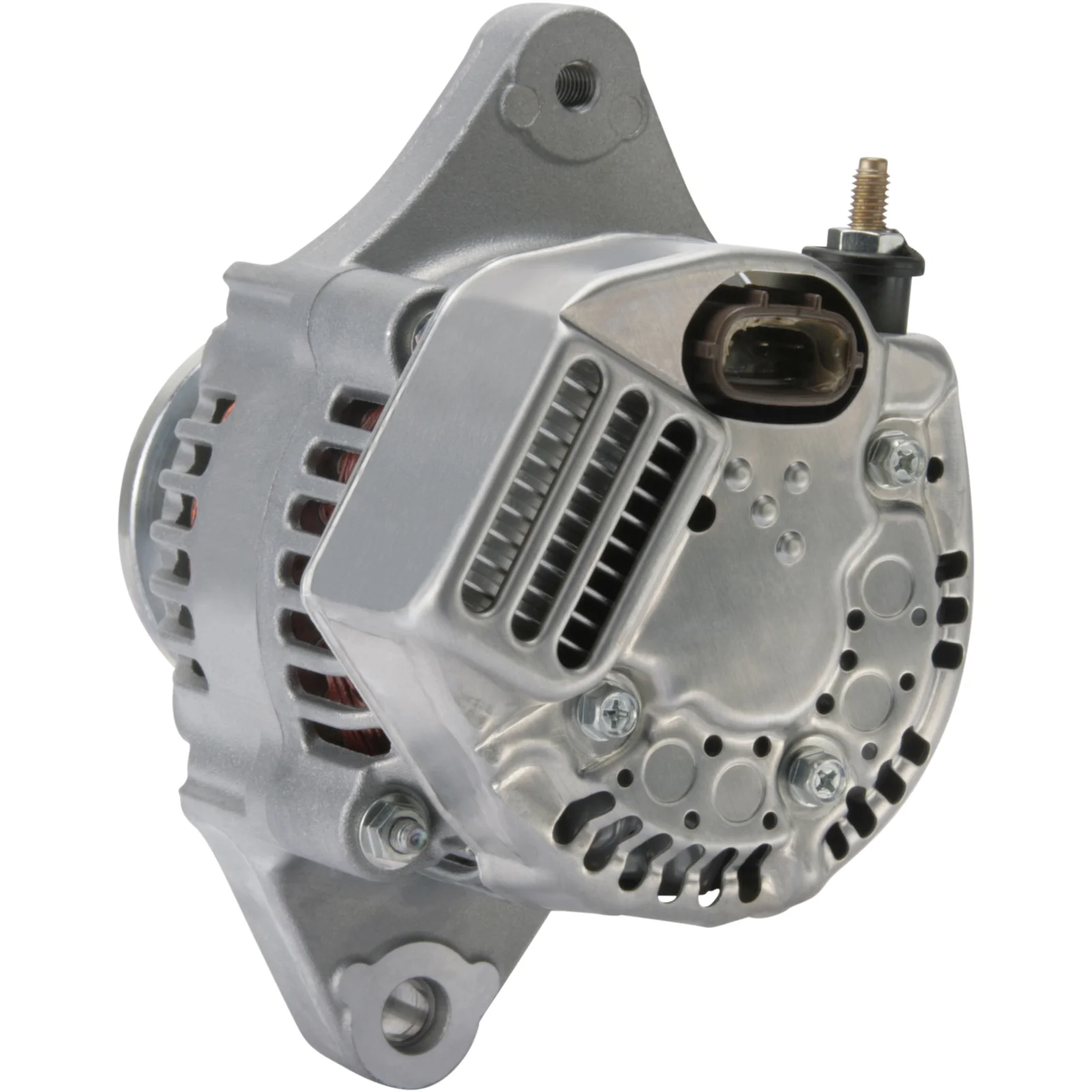

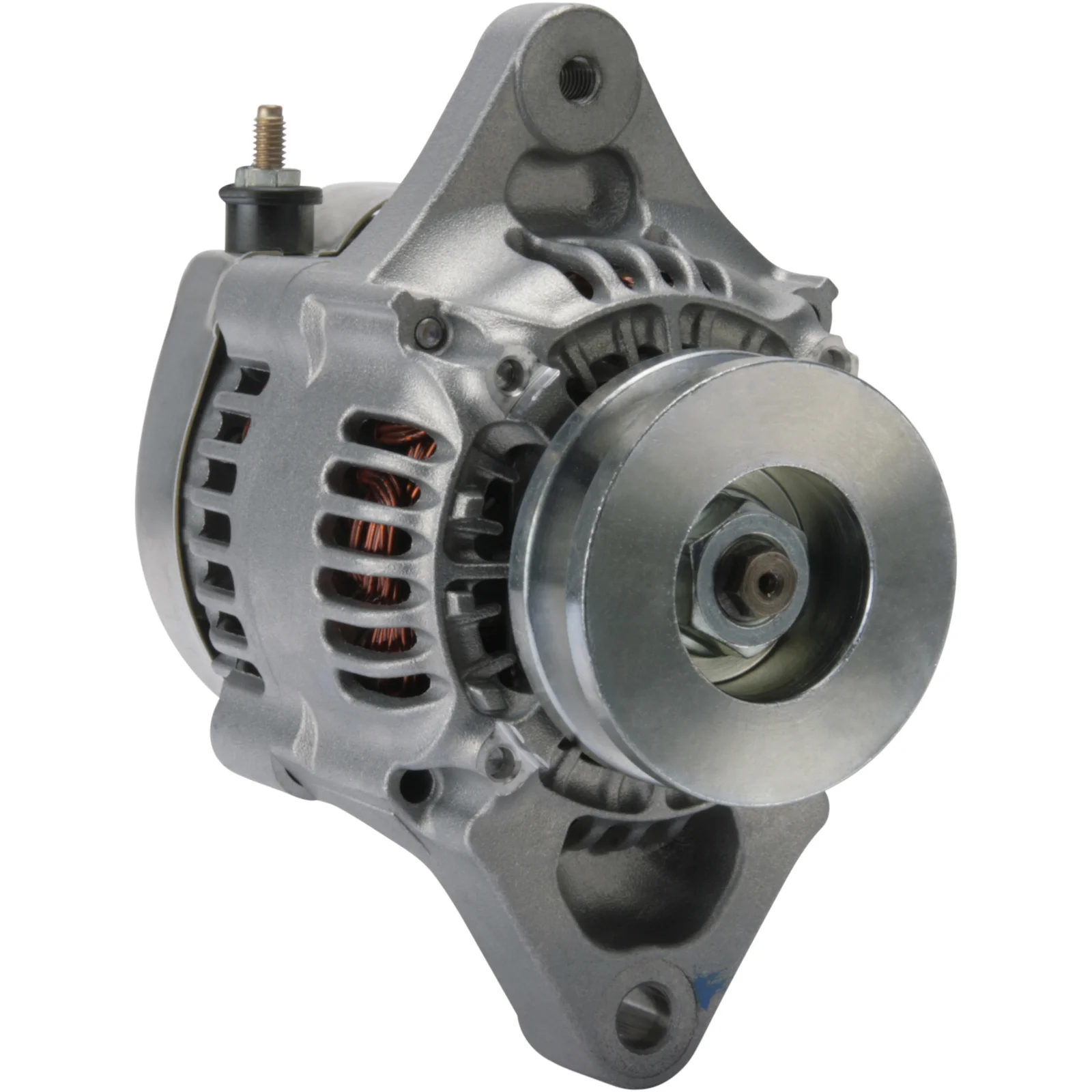

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114205

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 40, Rotation: CW, Pulley diameter: 69.00

Description

Voltage: 14
Amp: 40
Pulley distributor: 41.50
Width/holder arm: 21.00
Bracket hole: 10.20
Belt. adjustment bracket hole position: 60
Belt. adjustment bracket hole 1: M8
Pulley diameter: 69.00
Grooves/pulley: 1
Radius: 74.00
Radius 2: 74.00
B+: M6
Position/B+ in min.: 5
Rotation: Clockwise
Plug number: PL58
Total length mm: 141.00
Pulley: P
Fan: IF
Voltage regulator type: IR
Product information: BN

Files

  • OEM
    F032114205, 021080-0810, 101211-1100, 6669618

  • Normalised article numbler
    a6212denso, cal40408, dan2025, dra1386, f032114205, 12337n, 554072ri, 6669618, 0210800810, 583107402, 695536040, 1012111100
  • Description
    Voltage: 14
    Amp: 40
    Pulley distributor: 41.50
    Width/holder arm: 21.00
    Bracket hole: 10.20
    Belt. adjustment bracket hole position: 60
    Belt. adjustment bracket hole 1: M8
    Pulley diameter: 69.00
    Grooves/pulley: 1
    Radius: 74.00
    Radius 2: 74.00
    B+: M6
    Position/B+ in min.: 5
    Rotation: Clockwise
    Plug number: PL58
    Total length mm: 141.00
    Pulley: P
    Fan: IF
    Voltage regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114205, 021080-0810, 101211-1100, 6669618

    • Normalised article numbler
      a6212denso, cal40408, dan2025, dra1386, f032114205, 12337n, 554072ri, 6669618, 0210800810, 583107402, 695536040, 1012111100
