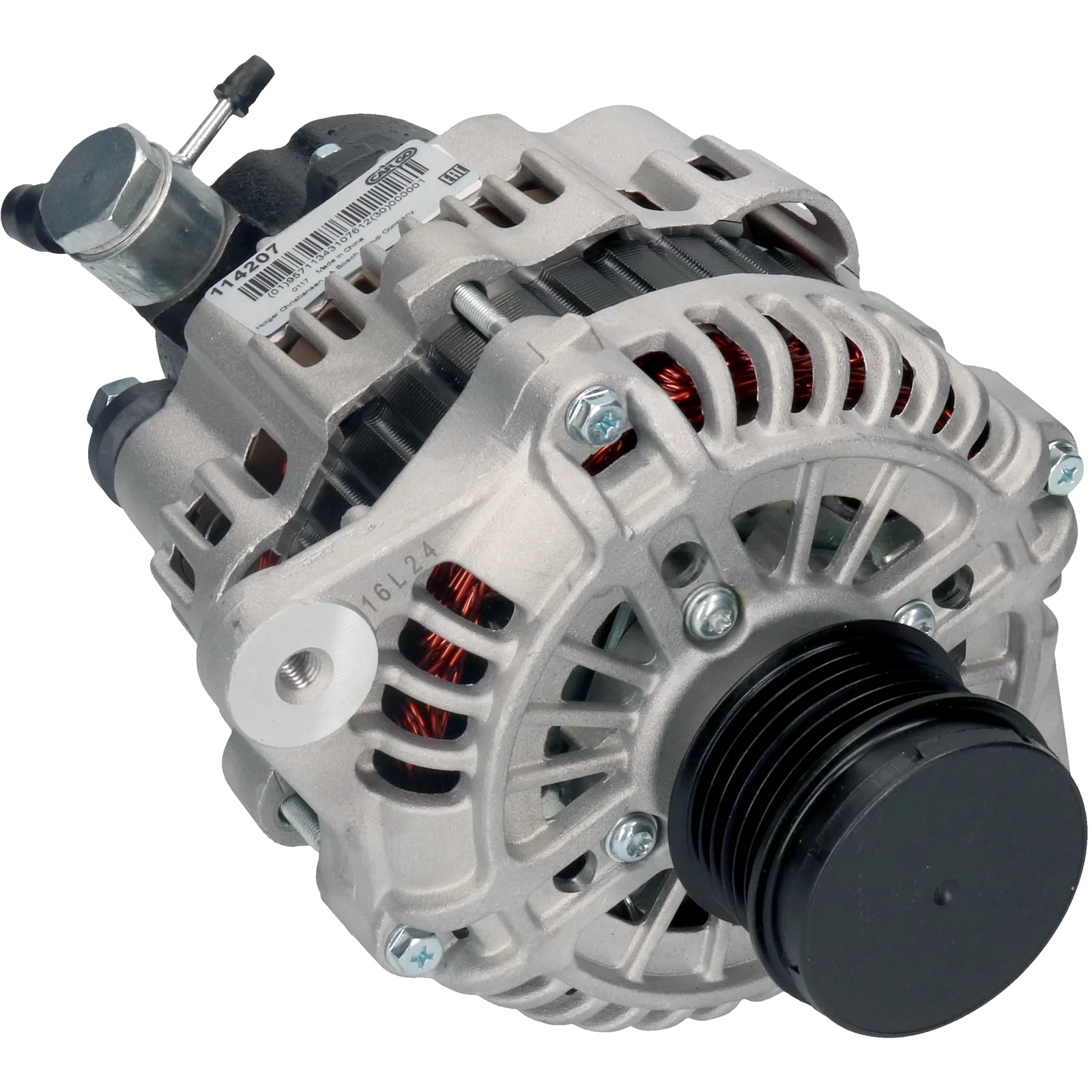

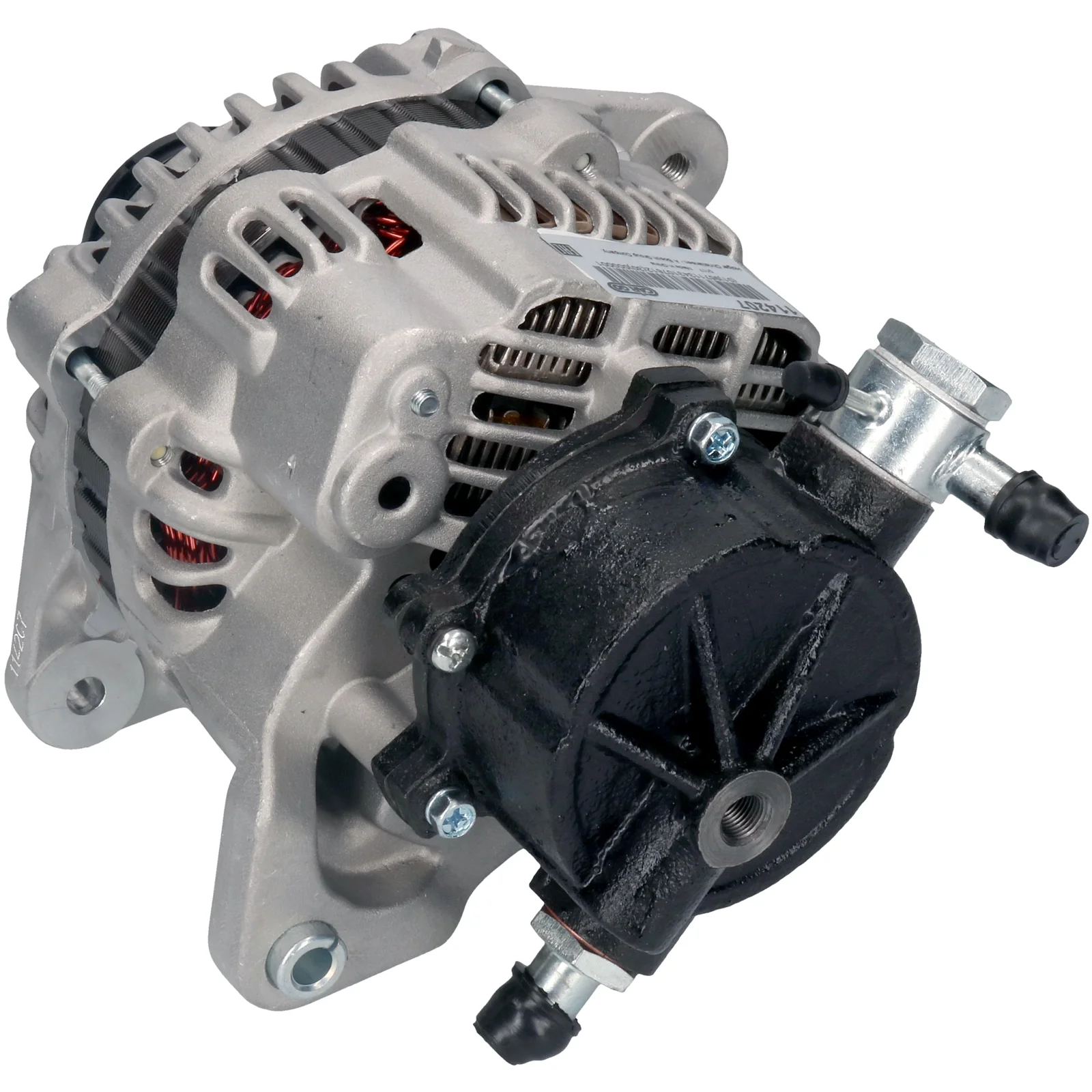

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114207

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 100, Rotation: clockwise, Mounting bracket distributor: 82.00

Description

Voltage: 14
Amp: 100
Pulley diameter: 45.00
Width/holder arm: 13.00
Mounting bracket distance: 82.00
Bracket hole: 8.50
Belt adjustment bracket hole position: 57
Belt adjustment bracket hole 1: M8
Pulley diameter: 54.00
Grooves/pulley: 6
Radius: 86.00
Radius 2: 86.00
B+: M8
Position/B+ in minutes: 5
D+ Size: Plug
Rotation: CW
Plug number: PL56
Total length mm: 224.00
Pulley: SP/FW
Voltage regulator type: IR
Vacuum pump: Yes
Product info: BN

Files

  • OEM
    A003TN2581, A003TN2582, a3tn2581, A3TN2582, F032114207, 31400-84A00, 31400-84A01

  • Normalised article numbler
    a003tn2581, a003tn2582, a3tn2581, a3tn2582, a5073, cal35280, dra0839, f032114207, 20780n, 210906, 210906a, 285860, 553170ri, 3140084a00, 3140084a01, 12060878, 185603100
  • Description
    Voltage: 14
    Amp: 100
    Pulley diameter: 45.00
    Width/holder arm: 13.00
    Mounting bracket distance: 82.00
    Bracket hole: 8.50
    Belt adjustment bracket hole position: 57
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 54.00
    Grooves/pulley: 6
    Radius: 86.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in minutes: 5
    D+ Size: Plug
    Rotation: CW
    Plug number: PL56
    Total length mm: 224.00
    Pulley: SP/FW
    Voltage regulator type: IR
    Vacuum pump: Yes
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      A003TN2581, A003TN2582, a3tn2581, A3TN2582, F032114207, 31400-84A00, 31400-84A01

    • Normalised article numbler
      a003tn2581, a003tn2582, a3tn2581, a3tn2582, a5073, cal35280, dra0839, f032114207, 20780n, 210906, 210906a, 285860, 553170ri, 3140084a00, 3140084a01, 12060878, 185603100
