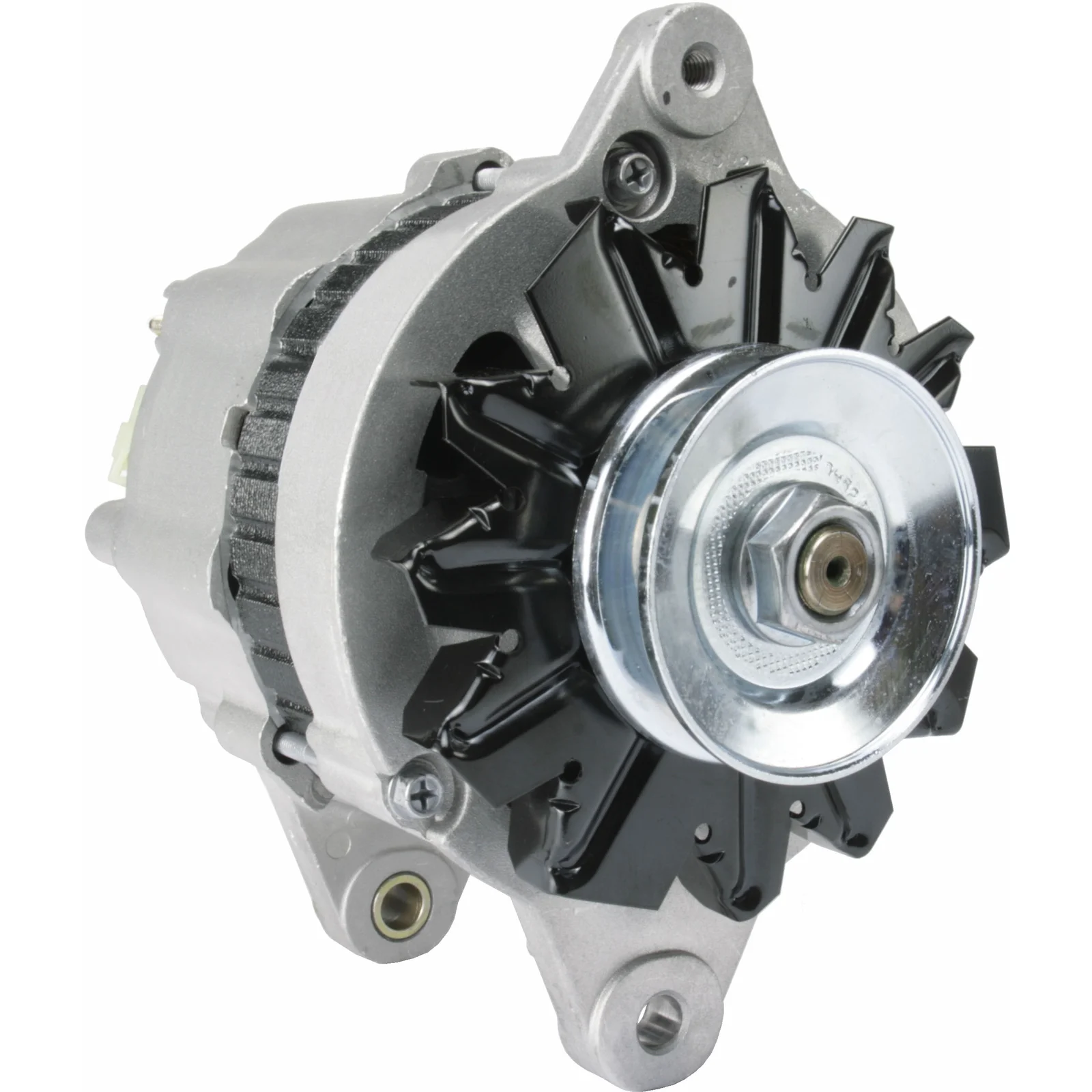

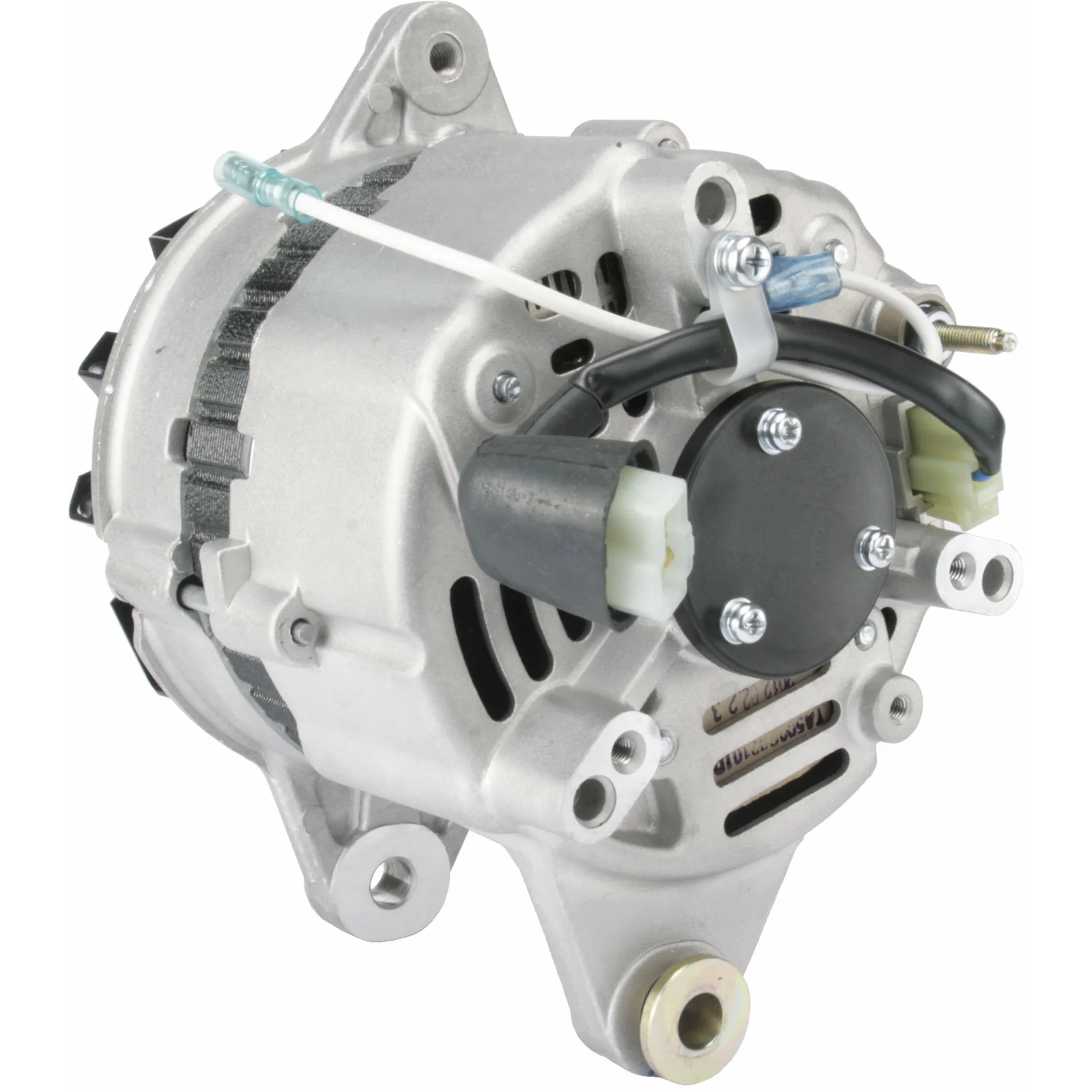

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114209

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 60, Rotation: CW, Mounting bracket distance: 80.70

Description

Voltage: 14
Amp: 60
Terminal: W
Pulley dist.: 42.00
Width/holder arm: 13.20
Mounting bracket dist.: 80.70
Bracket hole: 10.50
Belt adjustment bracket hole position.: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 74.00
Grooves/pulley: 1
Radius: 86.00
Radius 2: 90.00
B+: M5
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL10
W plug type: Plug
Total length mm: 167.50
Pulley: P
Regulator type: IR
Prod. info: BN

Files

  • Description
    Voltage: 14
    Amp: 60
    Terminal: W
    Pulley dist.: 42.00
    Width/holder arm: 13.20
    Mounting bracket dist.: 80.70
    Bracket hole: 10.50
    Belt adjustment bracket hole position.: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 74.00
    Grooves/pulley: 1
    Radius: 86.00
    Radius 2: 90.00
    B+: M5
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL10
    W plug type: Plug
    Total length mm: 167.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles
