HC-Cargo Alternator

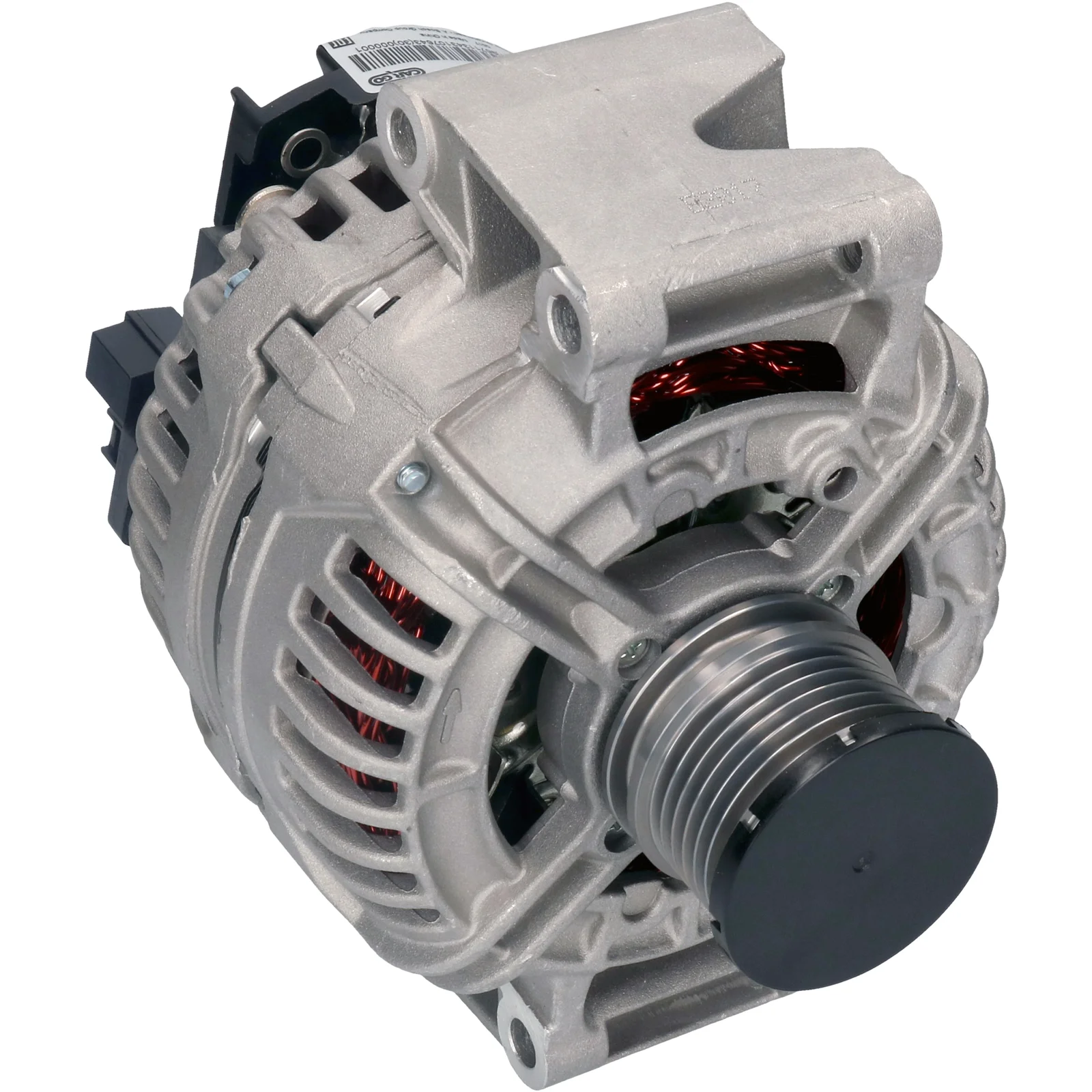

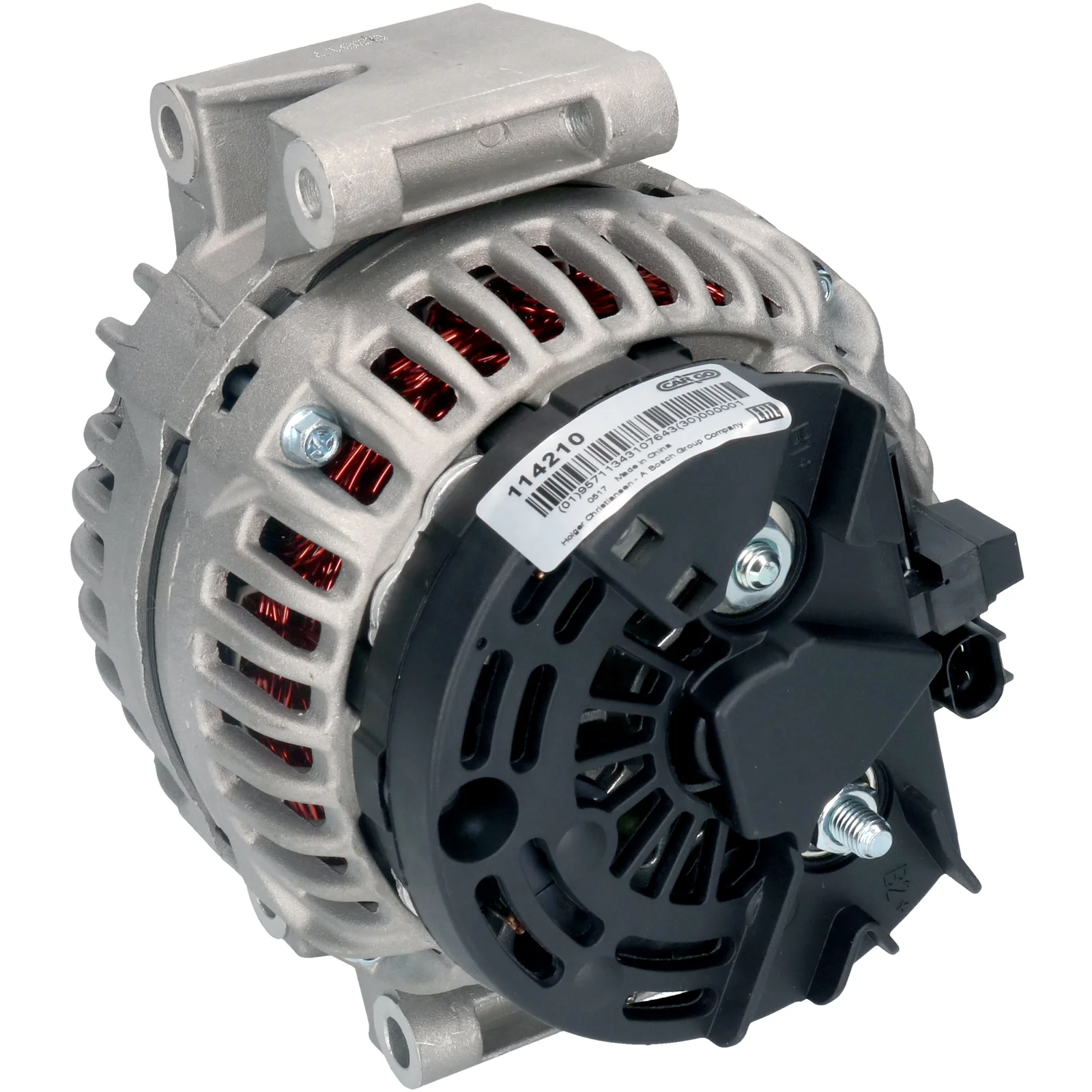

HC-Cargo Alternator
Article no.: F032114210

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 120, Rotation: CW, Mounting bracket distributor: 56.00

Description

Voltage: 14
Amp: 120
Pulley dist.: 29.00
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Bracket hole 2: 9.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Belt. adj. bracket hole 2: 8.50
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 43
D+ Size: Plug
Rotation: CW
Plug no.: PL135
Alternator: SP/FW

Files

  • OEM
    A0121544802, A012154480280, a0131540802, A013154080280, F032114210, 05073920AA, 05073920AB, 05073920AC, 5073920aa, 5073920AB, 5073920ac, 0121544802, 0124515084, 0124515115, 0131540802, 012154480280, 013154080280

  • Normalised article numbler
    a0121544802, a012154480280, a0131540802, a013154080280, a0684s, cal10297, dra0149, f032114210, lra01156, 209101, 209101a, 274720, 440842, 553138ri, 05073920aa, 05073920ab, 05073920ac, 5073920aa, 5073920ab, 5073920ac, 12047660, 12090127, 0121544802, 0124515084, 0124515115, 0131540802, 0986047660, 0986047663, 2250561202, 012154480280, 013154080280
  • Description
    Voltage: 14
    Amp: 120
    Pulley dist.: 29.00
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Bracket hole 2: 9.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.50
    Belt. adj. bracket hole 2: 8.50
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 43
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL135
    Alternator: SP/FW

    Files

  • Suitable for these vehicles

    • OEM
      A0121544802, A012154480280, a0131540802, A013154080280, F032114210, 05073920AA, 05073920AB, 05073920AC, 5073920aa, 5073920AB, 5073920ac, 0121544802, 0124515084, 0124515115, 0131540802, 012154480280, 013154080280

    • Normalised article numbler
      a0121544802, a012154480280, a0131540802, a013154080280, a0684s, cal10297, dra0149, f032114210, lra01156, 209101, 209101a, 274720, 440842, 553138ri, 05073920aa, 05073920ab, 05073920ac, 5073920aa, 5073920ab, 5073920ac, 12047660, 12090127, 0121544802, 0124515084, 0124515115, 0131540802, 0986047660, 0986047663, 2250561202, 012154480280, 013154080280
