HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114219

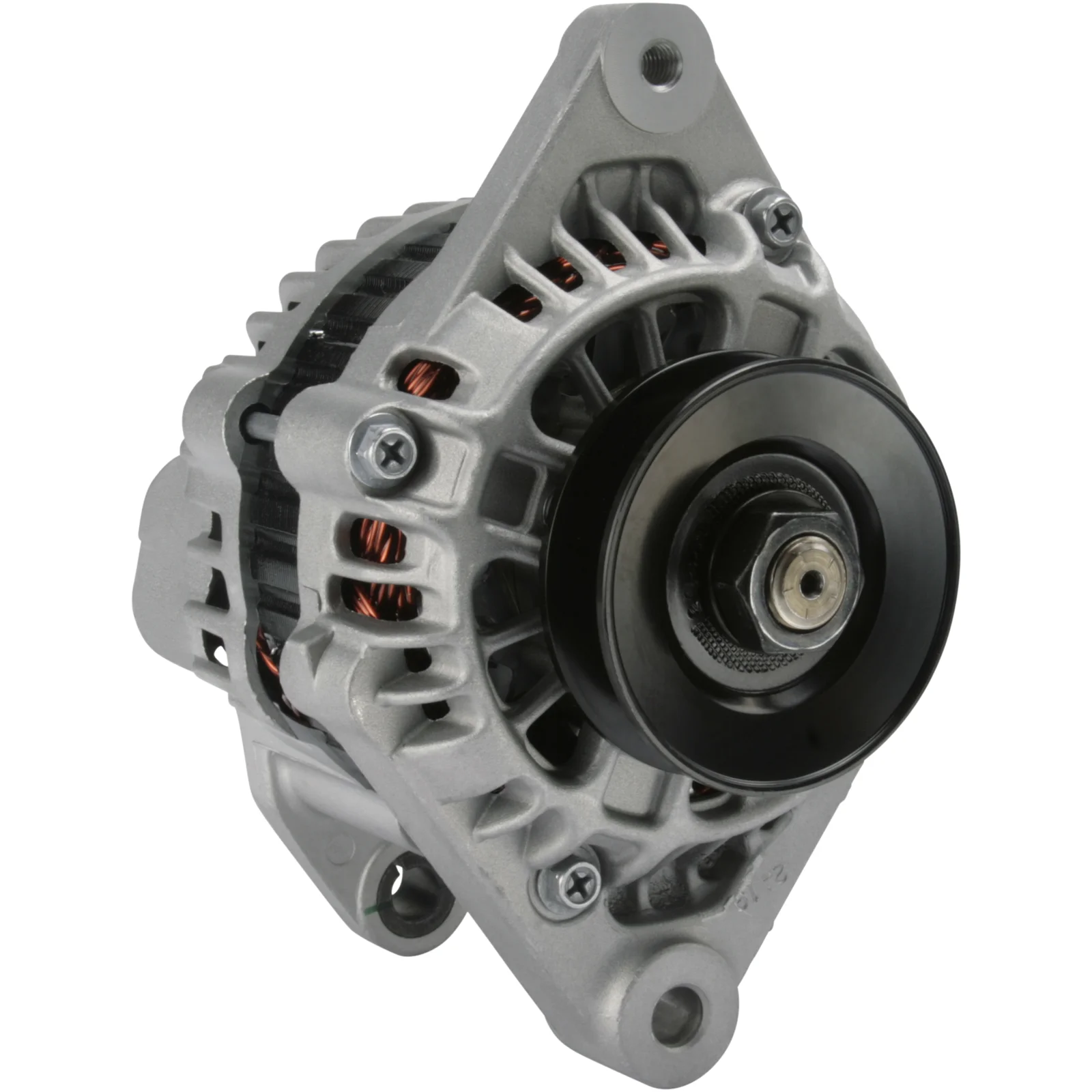

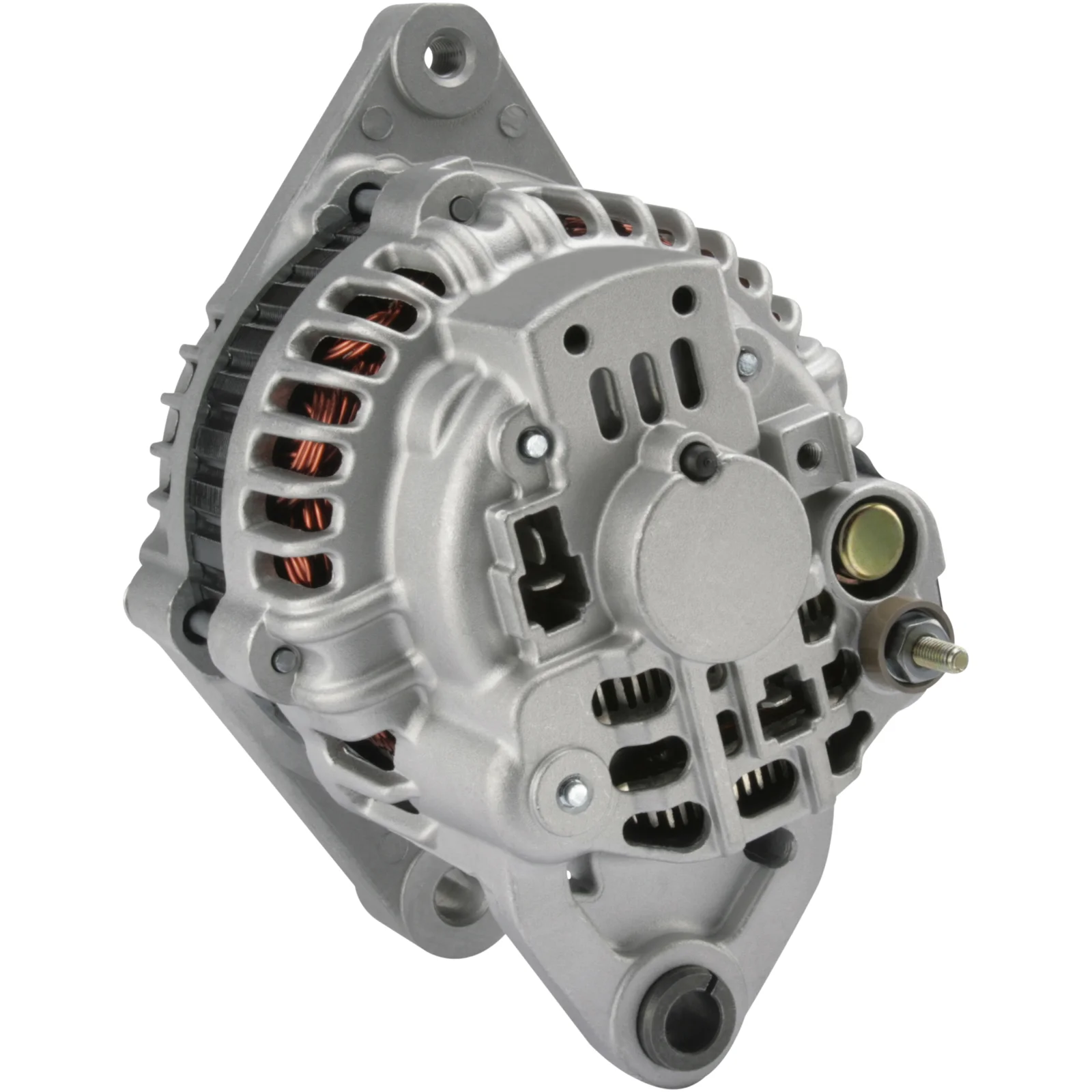

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperage: 50, Rotation: CW, Mounting bracket dist.: 66.00

Description

Voltage: 14
Amps: 50
Terminal: W
Pulley diameter: 43.00
Width/holder arm: 15.00
Mounting bracket distance: 66.00
Bracket hole: 10.00
Belt adjustment bracket hole position: 60
Belt adjustment bracket hole 1: M8
Pulley diameter: 66.00
Grooves/pulleys: 1
Radius: 77.00
Radius 2: 77.00
B+: M6
Position/B+ in minutes: 20
Rotation: CW
W plug type: Plug
Total length mm: 151.00
Pulley: P
Regulator type: IR
Product information: BN

Files

  • Description
    Voltage: 14
    Amps: 50
    Terminal: W
    Pulley diameter: 43.00
    Width/holder arm: 15.00
    Mounting bracket distance: 66.00
    Bracket hole: 10.00
    Belt adjustment bracket hole position: 60
    Belt adjustment bracket hole 1: M8
    Pulley diameter: 66.00
    Grooves/pulleys: 1
    Radius: 77.00
    Radius 2: 77.00
    B+: M6
    Position/B+ in minutes: 20
    Rotation: CW
    W plug type: Plug
    Total length mm: 151.00
    Pulley: P
    Regulator type: IR
    Product information: BN

    Files

  • Suitable for these vehicles
