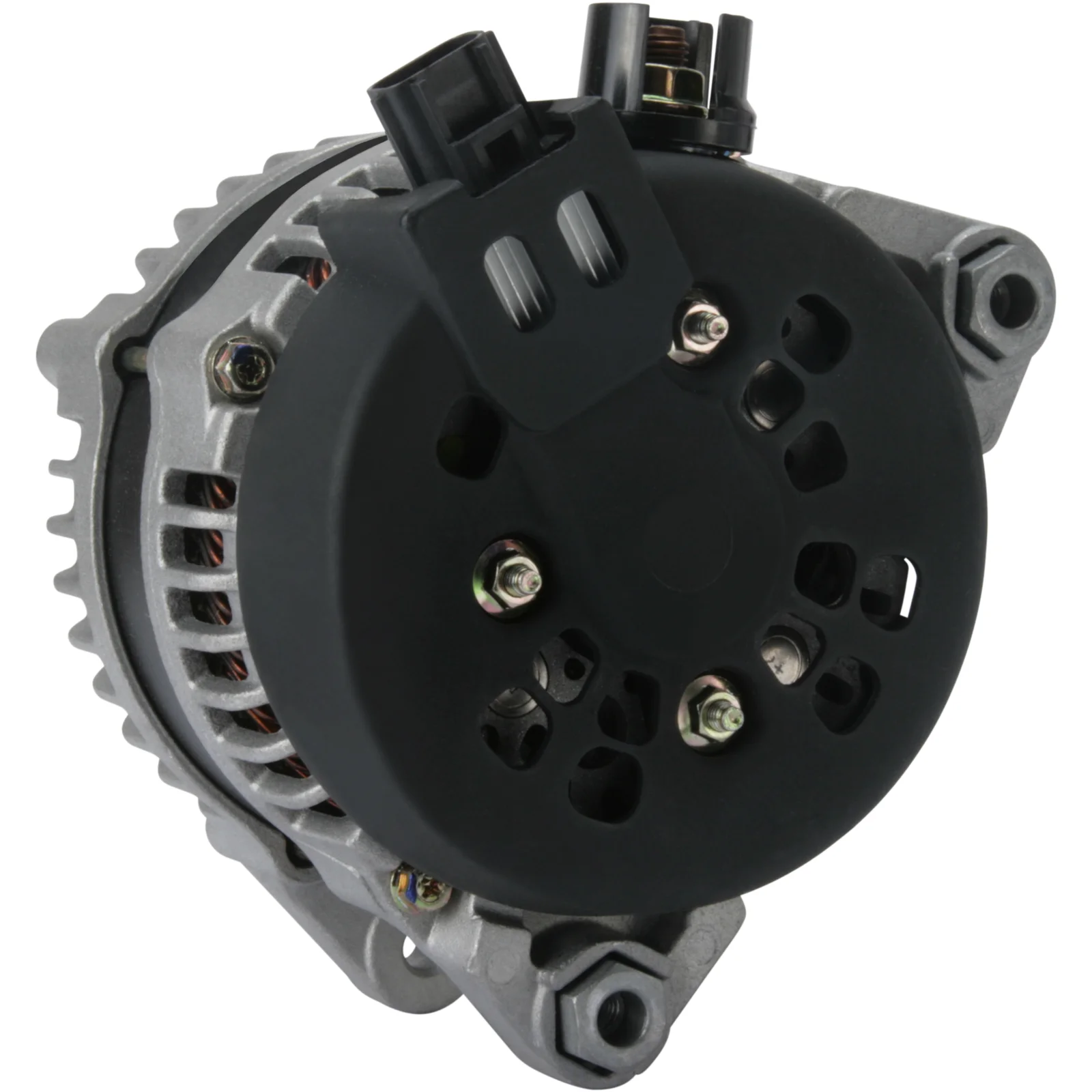

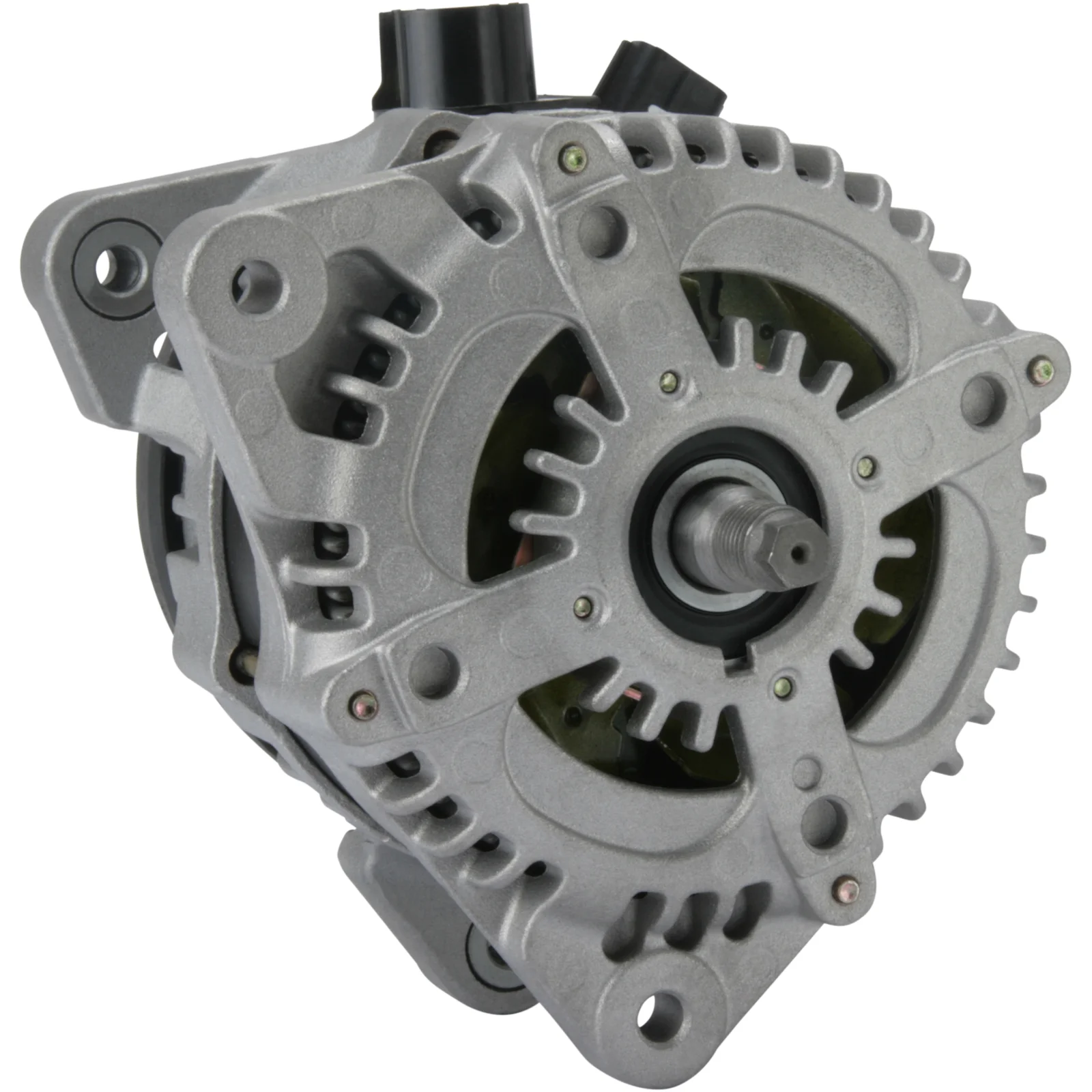

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114250

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 120, Rotation: CW, Mounting bracket distributor: 52.20

Description

Voltage: 14
Amp: 120
Width/holder arm: 17.20
Mounting bracket dist.: 52.20
Bracket hole: 8.00
Belt. adjustment bracket hole position: 10
Belt. adjustment bracket hole 1: 8.00
Radius: 82.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Total length mm: 155.00
Terminal type: FR-SIG-A
Pulley: without
Voltage regulator type: IR
Prod. info: BN

Files

  • OEM
    F032114250, RM4M5T10300KB, 4M5T10300KA, 4M5T10300KB, 1941ir, 104210-3630, 1302007, 1677167, 1757293

  • Normalised article numbler
    a6026denso, a6535s, cal40216, dra0098, dra0098x, f032114250, lea0795, lra02912, rm4m5t10300kb, 4m5t10300ka, 4m5t10300kb, 8el012426451, 8el738212811, 1941ir, 4723, 23912r, 112668, 209419, 209419a, 275526, 301941ri, 1302007, 1677167, 1757293, 0986083080, 1042103630, 2191671202
  • Description
    Voltage: 14
    Amp: 120
    Width/holder arm: 17.20
    Mounting bracket dist.: 52.20
    Bracket hole: 8.00
    Belt. adjustment bracket hole position: 10
    Belt. adjustment bracket hole 1: 8.00
    Radius: 82.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL57
    Total length mm: 155.00
    Terminal type: FR-SIG-A
    Pulley: without
    Voltage regulator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114250, RM4M5T10300KB, 4M5T10300KA, 4M5T10300KB, 1941ir, 104210-3630, 1302007, 1677167, 1757293

    • Normalised article numbler
      a6026denso, a6535s, cal40216, dra0098, dra0098x, f032114250, lea0795, lra02912, rm4m5t10300kb, 4m5t10300ka, 4m5t10300kb, 8el012426451, 8el738212811, 1941ir, 4723, 23912r, 112668, 209419, 209419a, 275526, 301941ri, 1302007, 1677167, 1757293, 0986083080, 1042103630, 2191671202
