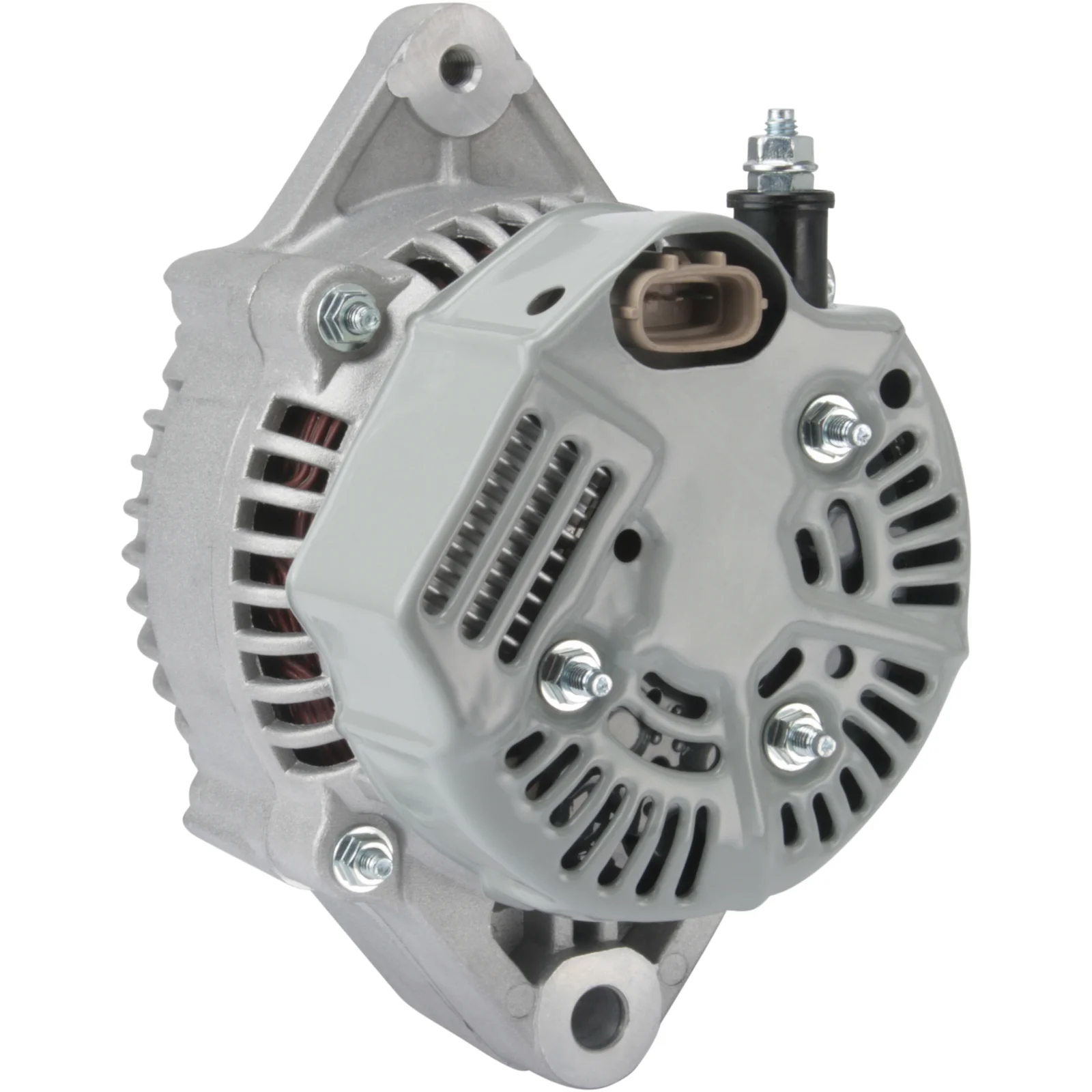

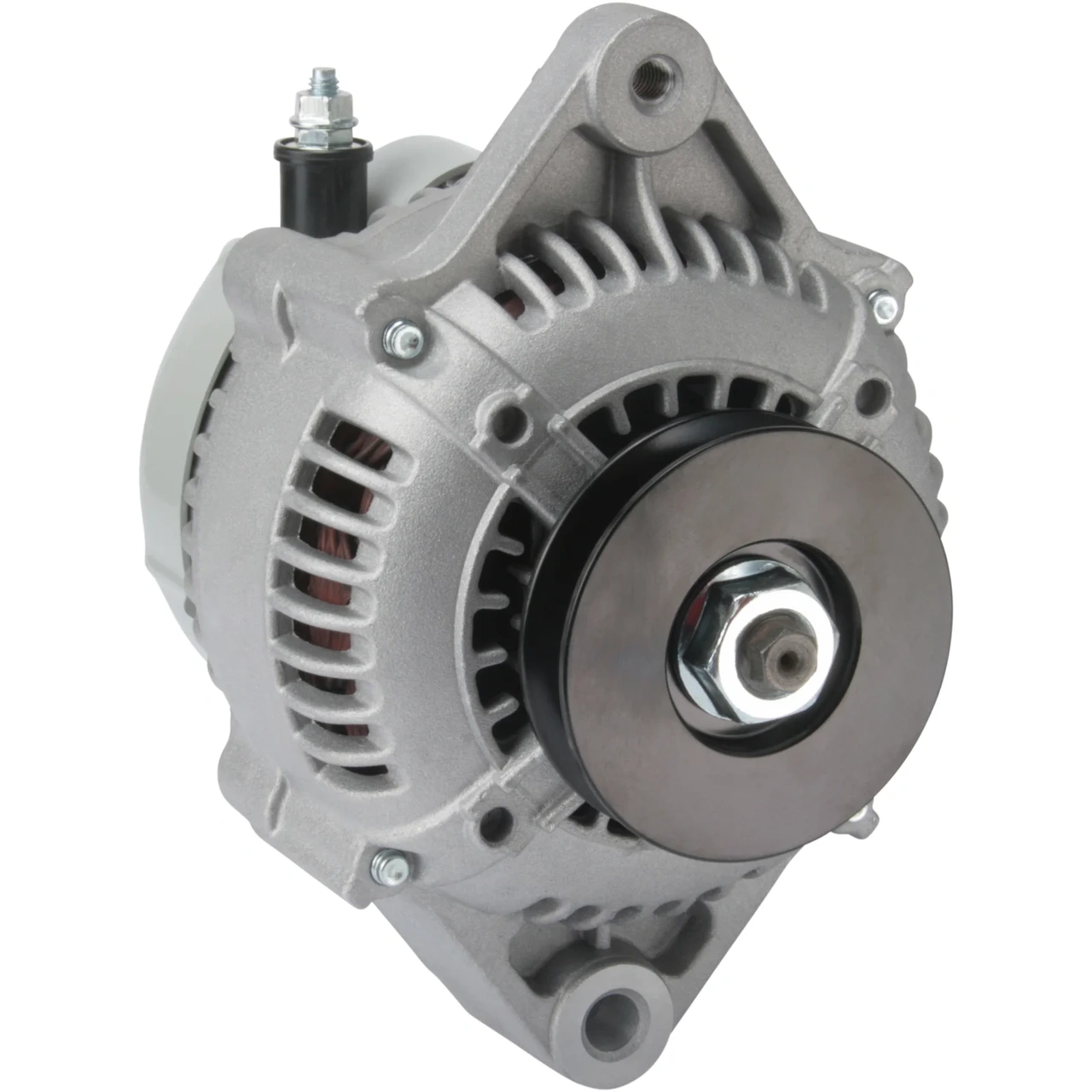

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114256

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 90, Rotation: CCW, Pulley diameter: 67.80

Description

Voltage: 14
Amp: 90
Pulley dist.: 92.60
Width/holder arm: 58.30
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 67.80
Grooves/pulley: 1
Radius: 79.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 2
D+ Size: Plug
Rotation: CCW
Plug no.: PL128
Total length mm: 155.00
Pulley: P
Regulator type: IR
Prod. info: Remanufacturered

Files

  • OEM
    F032114256, 19260-64010, 19260-64012, 19260-64013, 19260-64014, 19279-64011, 19279-64012, 19279-64013, 101211-0690, 101211-4280, 102211-1440, 102211-1441, 102211-1442, 102211-5700, 102211-5702

  • Normalised article numbler
    a6521s, cal40379, f032114256, lra04429, 12777n, 12777nto, 12777r, 288538, 553129ri, 12061206, 695524090, 1012110690, 1012114280, 1022111440, 1022111441, 1022111442, 1022115700, 1022115702, 1926064010, 1926064012, 1926064013, 1926064014, 1927964011, 1927964012, 1927964013
  • Description
    Voltage: 14
    Amp: 90
    Pulley dist.: 92.60
    Width/holder arm: 58.30
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 67.80
    Grooves/pulley: 1
    Radius: 79.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 2
    D+ Size: Plug
    Rotation: CCW
    Plug no.: PL128
    Total length mm: 155.00
    Pulley: P
    Regulator type: IR
    Prod. info: Remanufacturered

    Files

  • Suitable for these vehicles

    • OEM
      F032114256, 19260-64010, 19260-64012, 19260-64013, 19260-64014, 19279-64011, 19279-64012, 19279-64013, 101211-0690, 101211-4280, 102211-1440, 102211-1441, 102211-1442, 102211-5700, 102211-5702

    • Normalised article numbler
      a6521s, cal40379, f032114256, lra04429, 12777n, 12777nto, 12777r, 288538, 553129ri, 12061206, 695524090, 1012110690, 1012114280, 1022111440, 1022111441, 1022111442, 1022115700, 1022115702, 1926064010, 1926064012, 1926064013, 1926064014, 1927964011, 1927964012, 1927964013
