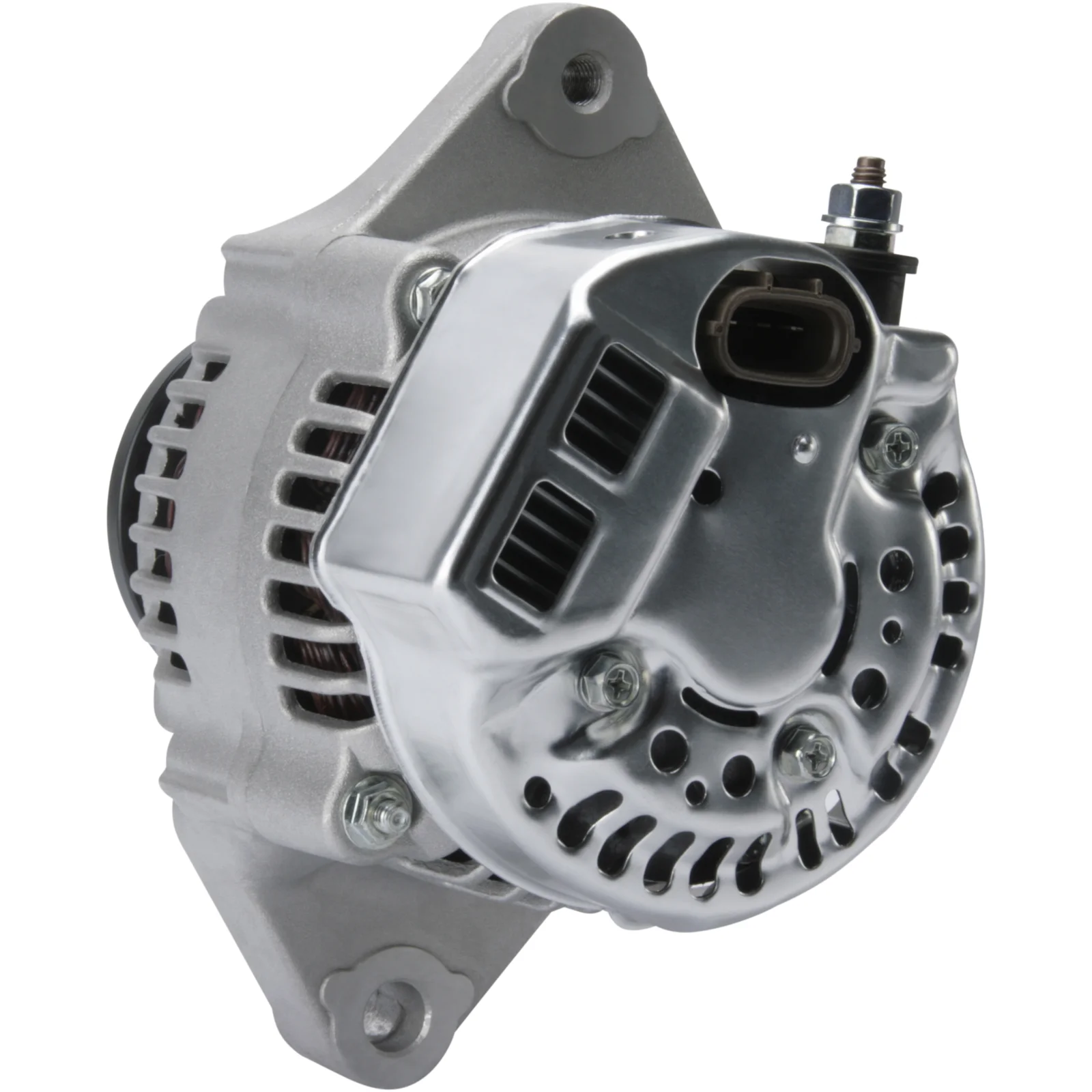

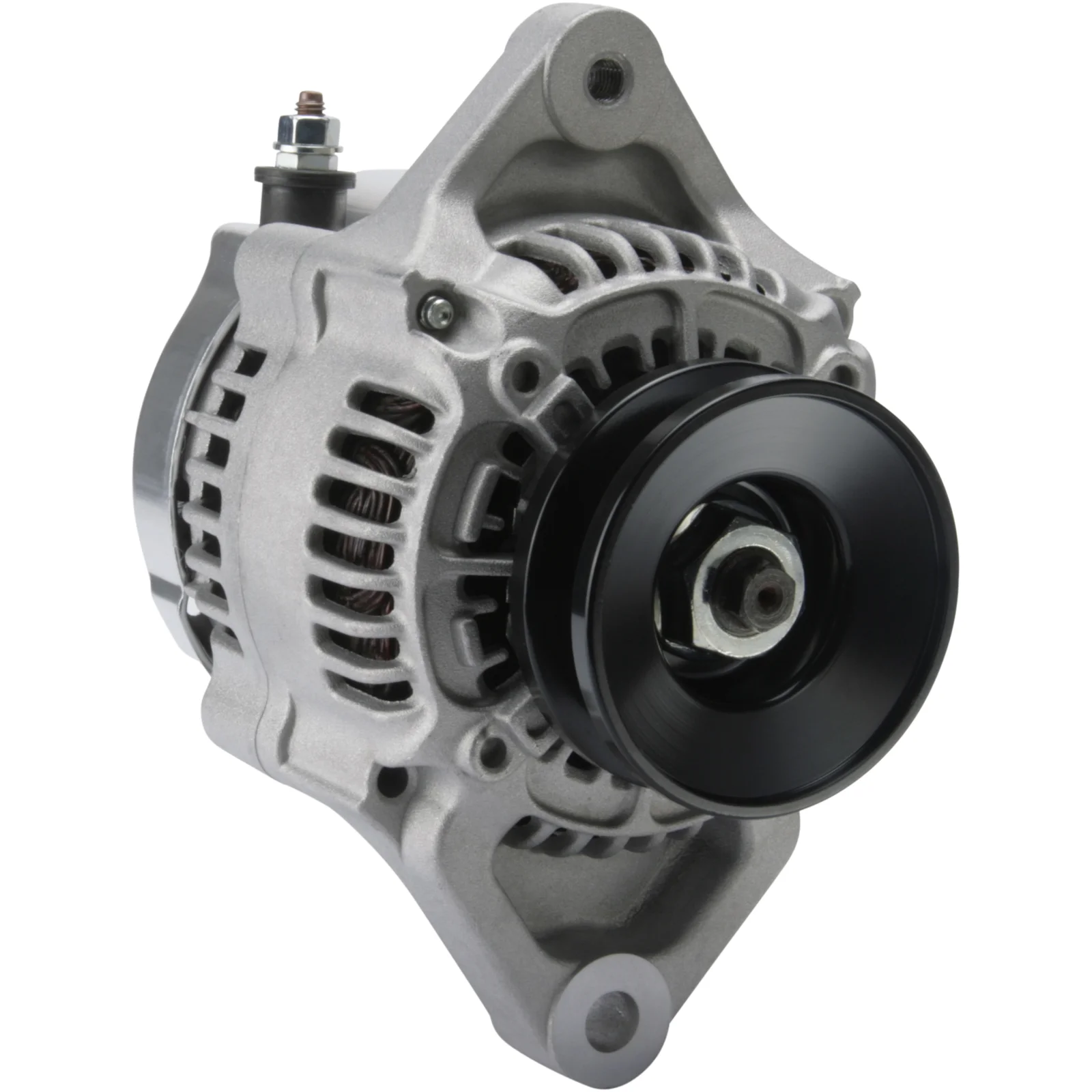

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114263

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 50, Rotation: CW, Pulley dia.: 69.50

Description

Voltage: 14
Amp: 50
Pulley dist.: 44.00
Width/holder arm: 21.00
Bracket hole: 10.70
Belt. adj. bracket hole position.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 69.50
Grooves/pulley: 1
Radius: 77.00
Radius 2: 75.50
B+: M6
Position/B+ in min.: 5
Rotation: CW
Plug no.: PL128
Total length mm: 145.00
Pulley: P
Alternator type: IR
Prod. info: BN

Files

  • OEM
    F032114263, 17490-64010, 17490-64011, 17490-64012, 17490-64013, 17490-64014, 17490-64015, 101211-3410, 101211-3411, 05741435

  • Normalised article numbler
    a6635s, cal40548, f032114263, 13633n, 111282, 553287ri, 553400ri, 05741435, 695517050, 1012113410, 1012113411, 1749064010, 1749064011, 1749064012, 1749064013, 1749064014, 1749064015
  • Description
    Voltage: 14
    Amp: 50
    Pulley dist.: 44.00
    Width/holder arm: 21.00
    Bracket hole: 10.70
    Belt. adj. bracket hole position.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 69.50
    Grooves/pulley: 1
    Radius: 77.00
    Radius 2: 75.50
    B+: M6
    Position/B+ in min.: 5
    Rotation: CW
    Plug no.: PL128
    Total length mm: 145.00
    Pulley: P
    Alternator type: IR
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114263, 17490-64010, 17490-64011, 17490-64012, 17490-64013, 17490-64014, 17490-64015, 101211-3410, 101211-3411, 05741435

    • Normalised article numbler
      a6635s, cal40548, f032114263, 13633n, 111282, 553287ri, 553400ri, 05741435, 695517050, 1012113410, 1012113411, 1749064010, 1749064011, 1749064012, 1749064013, 1749064014, 1749064015
