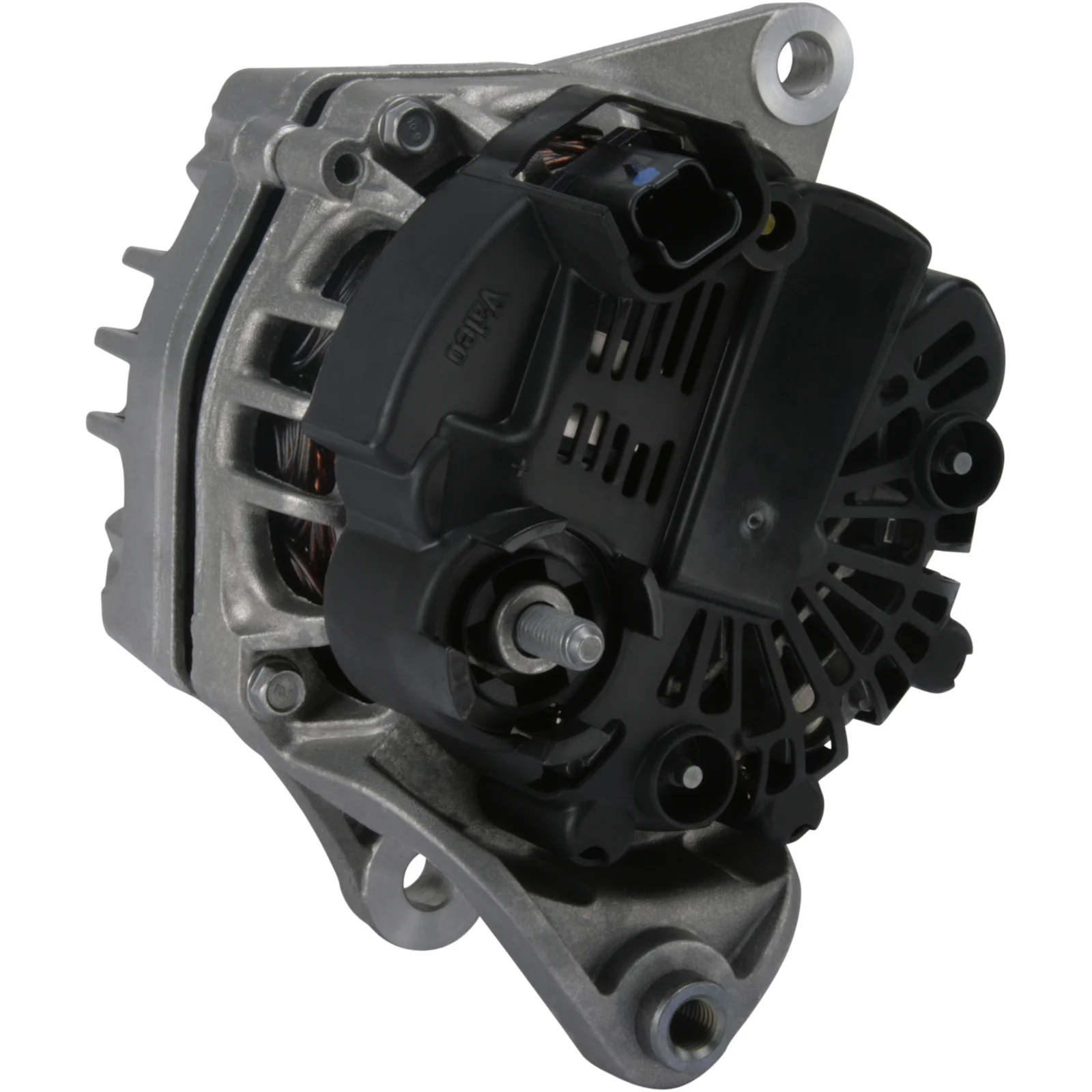

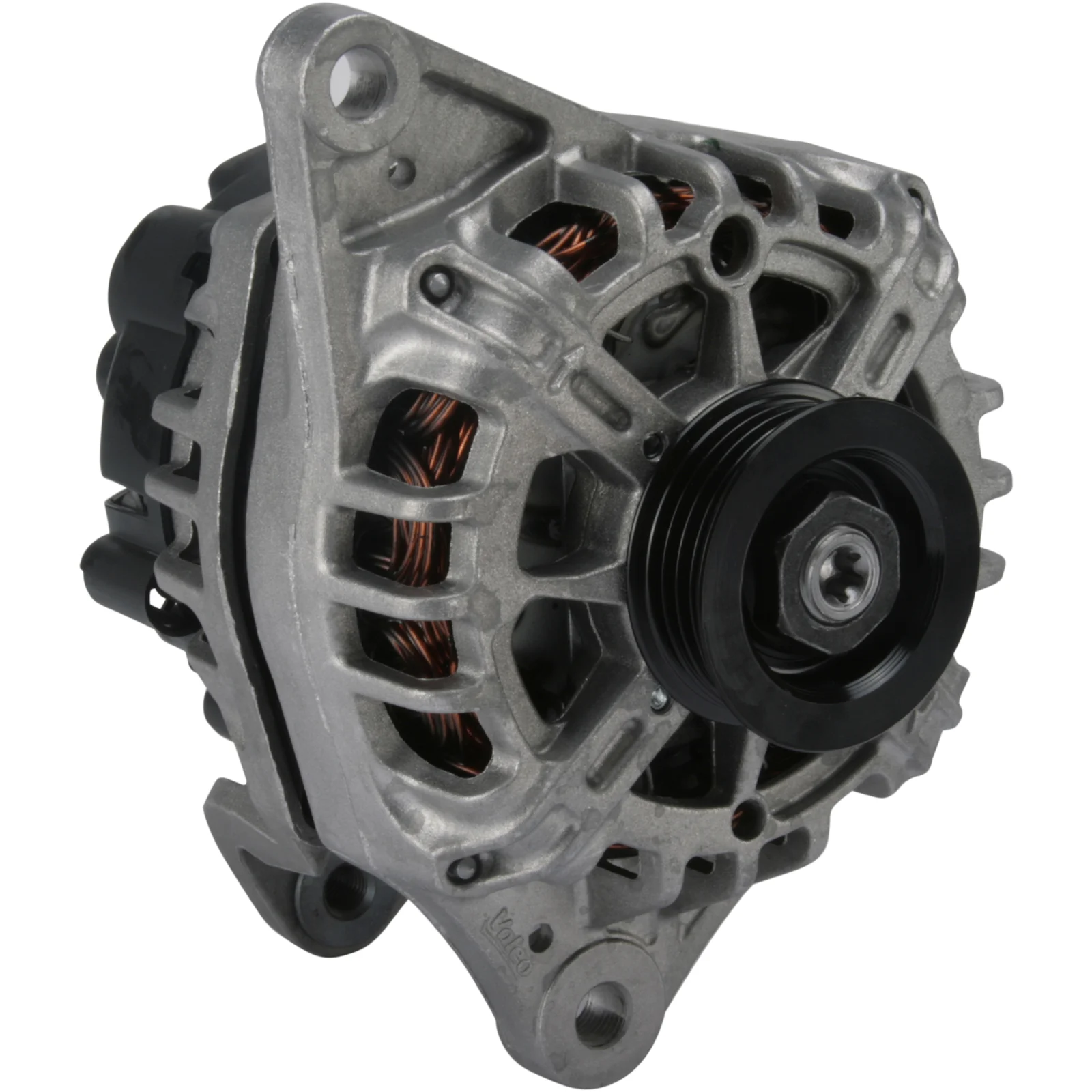

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114293

HC-Cargo Alternator

Technical info:

Voltage: 14, Amperes: 80, Rotation: CW, Mounting bracket distributor: 67.00

Description

Voltage: 14
Amp: 80
Pulley dist.: 45.50
Width/holder arm: 13.00
Mount. bracket dist.: 67.00
Bracket hole: 10.00
Belt. adjustment bracket hole position.: 53
Belt. adjustment bracket hole 1: 10.00
Pulley diameter: 50.00
Grooves/pulley: 4
Radius: 84.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 40
Rotation: CW
Plug no.: PL55
Total length mm: 151.00
Pulley: SP
Voltage regulator type: IR

Files

  • OEM
    F032114293, tg8s024, 1977ir, 23100-ax62b, 2543488, 2543488A, 2543488B

  • Normalised article numbler
    a3395pr, a3395s, dra0458, f032114293, lra03099, tg8s024, 8el012430171, 8el738211911, 1977ir, 23100ax62b, 23560r, 210516, 210516a, 285711, 301977ri, 439595, 440074, 2543488, 2543488a, 2543488b, 12060912, 227315802, 0986080720
  • Description
    Voltage: 14
    Amp: 80
    Pulley dist.: 45.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 67.00
    Bracket hole: 10.00
    Belt. adjustment bracket hole position.: 53
    Belt. adjustment bracket hole 1: 10.00
    Pulley diameter: 50.00
    Grooves/pulley: 4
    Radius: 84.00
    Radius 2: 92.00
    B+: M8
    Position/B+ in min.: 40
    Rotation: CW
    Plug no.: PL55
    Total length mm: 151.00
    Pulley: SP
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114293, tg8s024, 1977ir, 23100-ax62b, 2543488, 2543488A, 2543488B

    • Normalised article numbler
      a3395pr, a3395s, dra0458, f032114293, lra03099, tg8s024, 8el012430171, 8el738211911, 1977ir, 23100ax62b, 23560r, 210516, 210516a, 285711, 301977ri, 439595, 440074, 2543488, 2543488a, 2543488b, 12060912, 227315802, 0986080720
