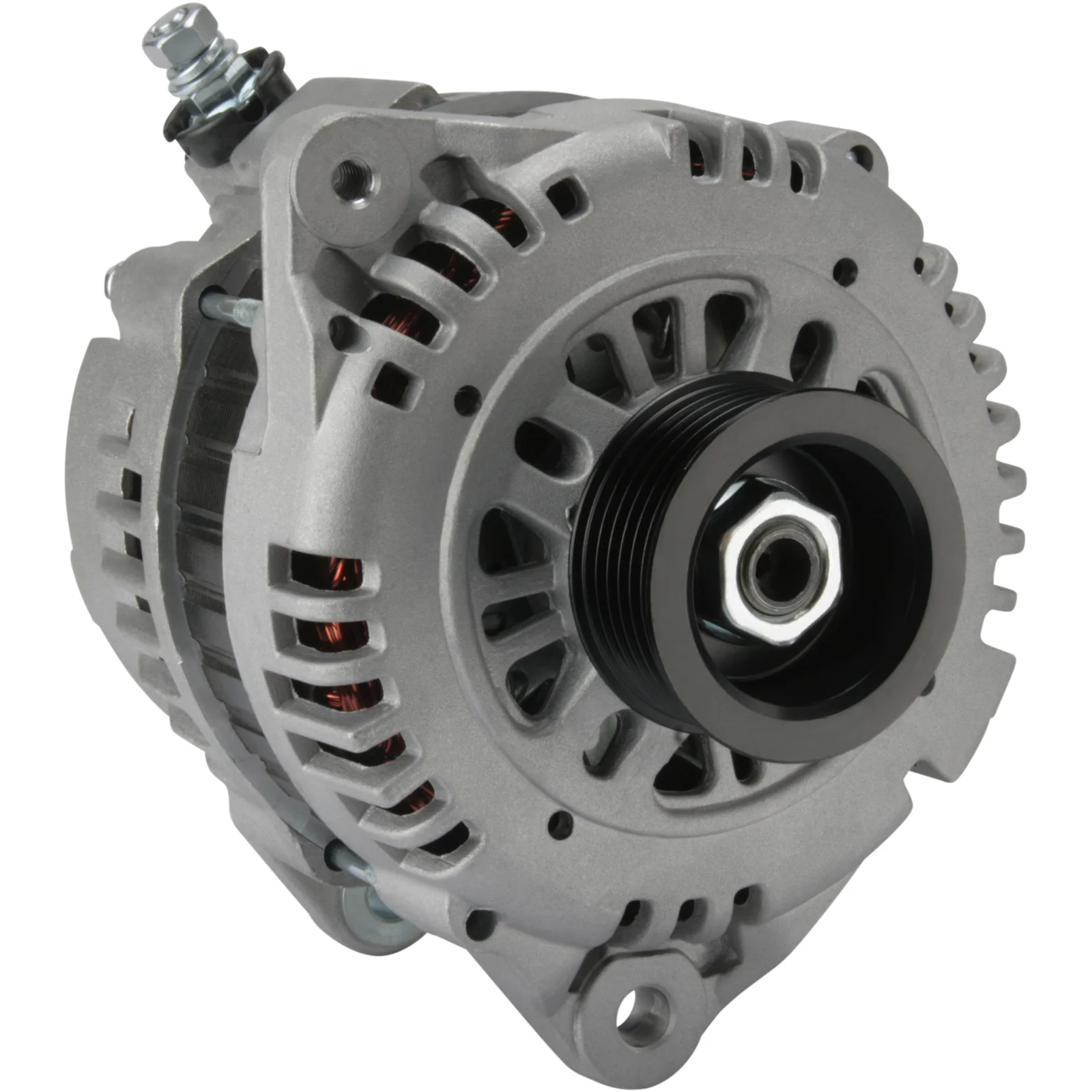

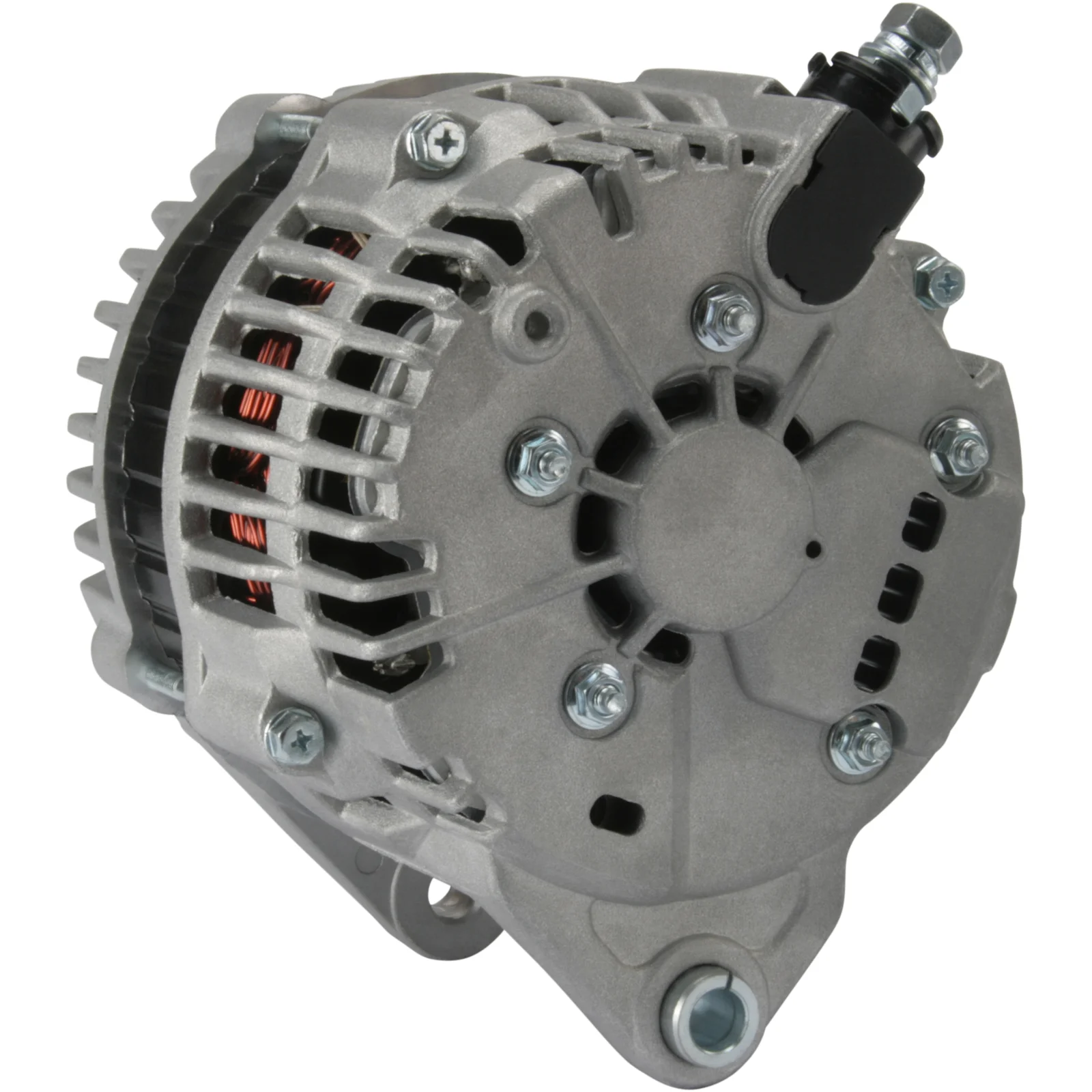

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114301

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 150, Rotation: CW, Mounting bracket distributor: 82.50

Description

Voltage: 14
Amp: 150
Pulley dist.: 39.00
Width/holder arm: 13.00
Mount. bracket dist.: 82.50
Bracket hole: 10.00
Belt. adj. brackethole pos.: 53
Belt. adj. bracket hole 1: M8
Pulley diameter: 57.00
Grooves/pulley: 6
Radius: 84.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL178
Total length mm: 166.00
Pulley: Alternator
Prod. info: BN

Files

  • OEM
    F032114301, LR1150-706, LR1150-706B, 8200228289, 8200299173

  • Normalised article numbler
    a2041, cal20206, dra0383, f032114301, lr1150706, lr1150706b, 284913, 553463ri, 12090215, 8200228289, 8200299173
  • Description
    Voltage: 14
    Amp: 150
    Pulley dist.: 39.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 82.50
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 53
    Belt. adj. bracket hole 1: M8
    Pulley diameter: 57.00
    Grooves/pulley: 6
    Radius: 84.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL178
    Total length mm: 166.00
    Pulley: Alternator
    Prod. info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114301, LR1150-706, LR1150-706B, 8200228289, 8200299173

    • Normalised article numbler
      a2041, cal20206, dra0383, f032114301, lr1150706, lr1150706b, 284913, 553463ri, 12090215, 8200228289, 8200299173
