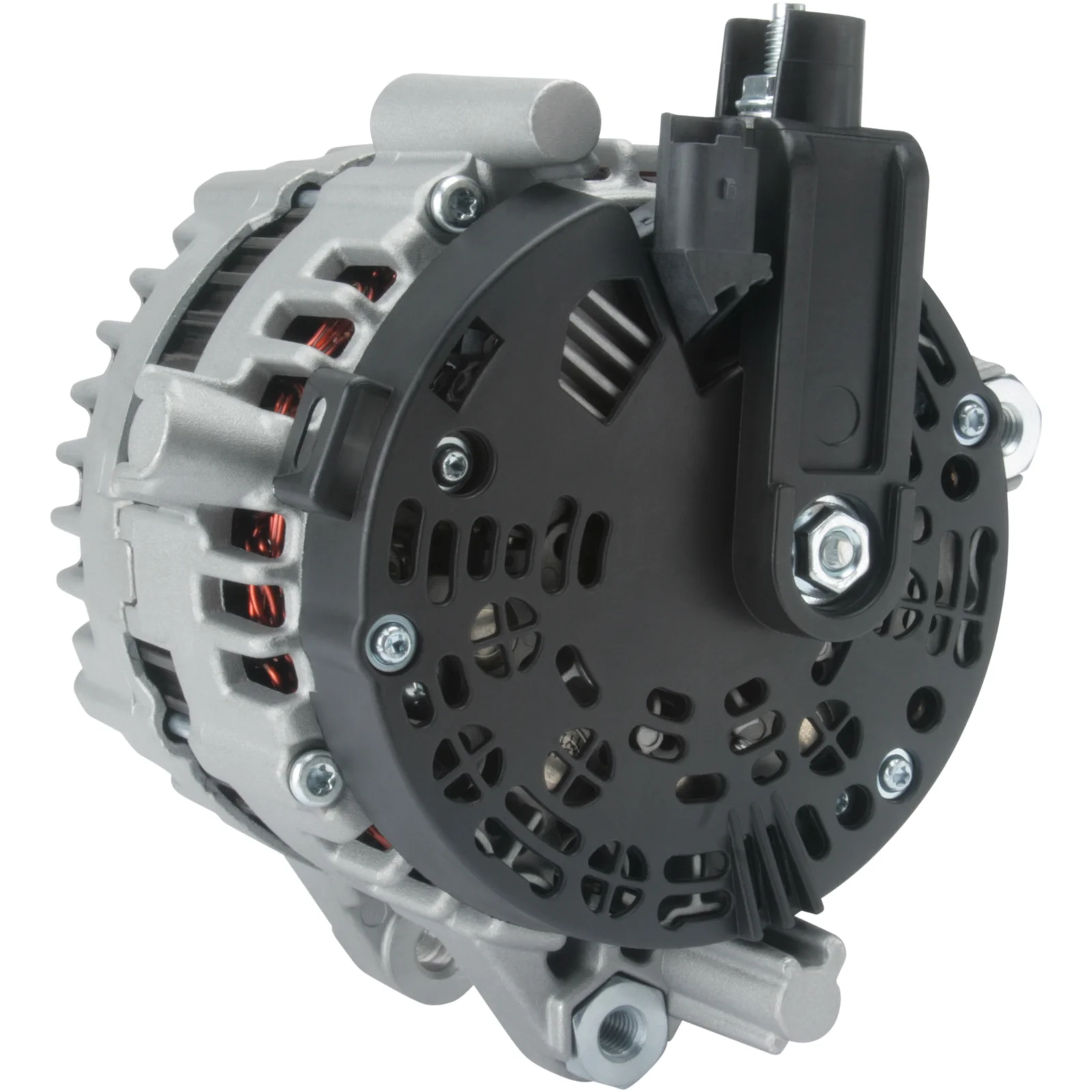

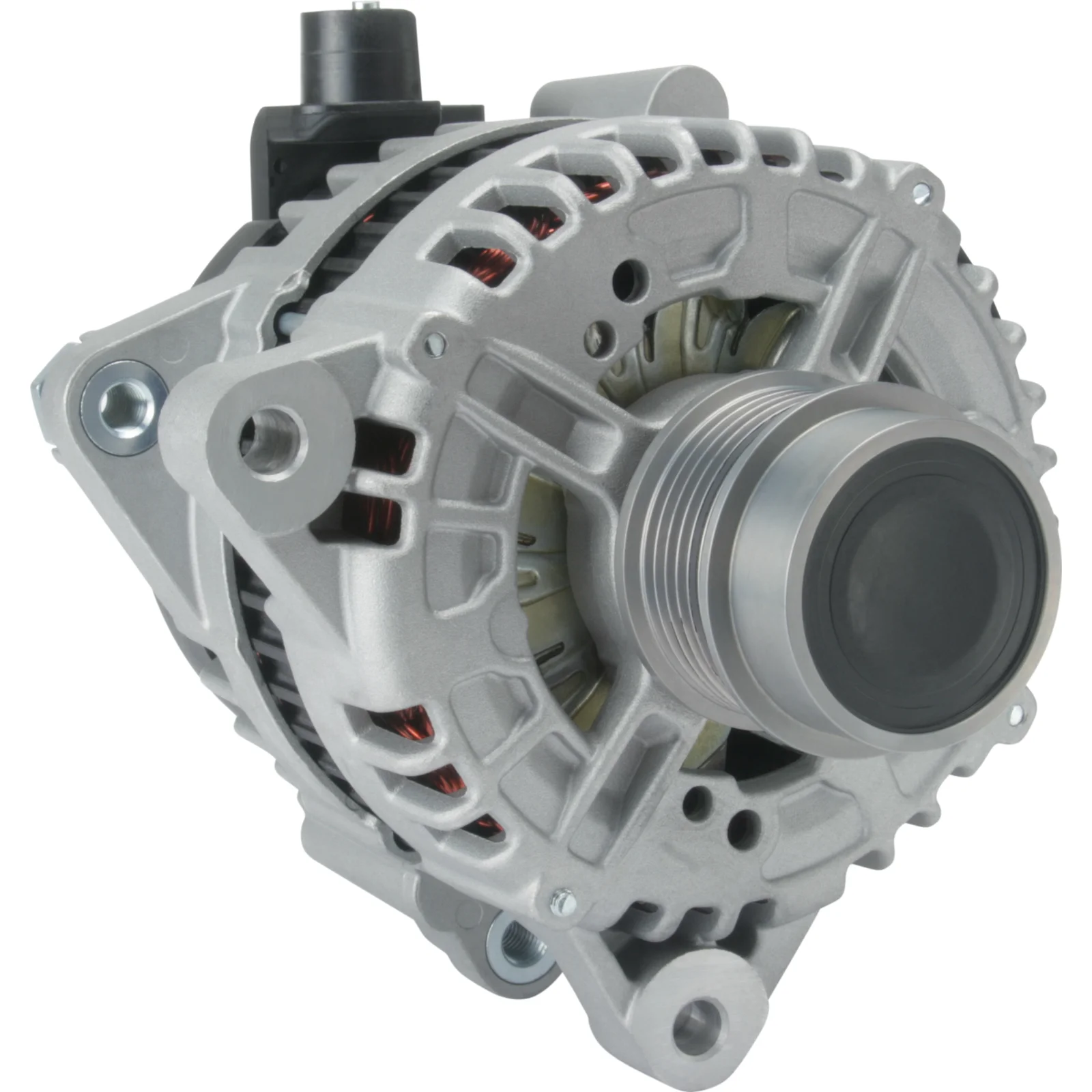

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114391

HC-Cargo Alternator

Technical info:

Voltage: 14, Amps: 180, Rotation: CW, Mounting bracket distributor: 45.00

Description

Voltage: 14
Amp: 180
Pulley dist.: 42.50
Width/holder arm: 21.00
Mounting bracket dist.: 45.00
Bracket hole: 10.20
Belt adjustment bracket hole position.: 46
Belt adjustment bracket hole 1: 10.80
Pulley diameter: 57.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL72
Total length mm: 192.00
Terminal type: L-DFM
Pulley: SP/FW
Regulator type: IR
Product info: BN

Files

  • OEM
    F032114391, 1888ir, 0121715001, 0121715101, 9652035480, 9653459080, 9657129680

  • Normalised article numbler
    a0204, cal10150, dra0308, f032114391, 8el738212701, 1888ir, 4706, 5702f8, 5705cj, 5705ej, 24077n, 24077r, 209054, 209054a, 285698, 12090283, 32081330, 0121715001, 0121715101, 0986081330, 2291391802, 9652035480, 9653459080, 9657129680
  • Description
    Voltage: 14
    Amp: 180
    Pulley dist.: 42.50
    Width/holder arm: 21.00
    Mounting bracket dist.: 45.00
    Bracket hole: 10.20
    Belt adjustment bracket hole position.: 46
    Belt adjustment bracket hole 1: 10.80
    Pulley diameter: 57.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL72
    Total length mm: 192.00
    Terminal type: L-DFM
    Pulley: SP/FW
    Regulator type: IR
    Product info: BN

    Files

  • Suitable for these vehicles

    • OEM
      F032114391, 1888ir, 0121715001, 0121715101, 9652035480, 9653459080, 9657129680

    • Normalised article numbler
      a0204, cal10150, dra0308, f032114391, 8el738212701, 1888ir, 4706, 5702f8, 5705cj, 5705ej, 24077n, 24077r, 209054, 209054a, 285698, 12090283, 32081330, 0121715001, 0121715101, 0986081330, 2291391802, 9652035480, 9653459080, 9657129680
