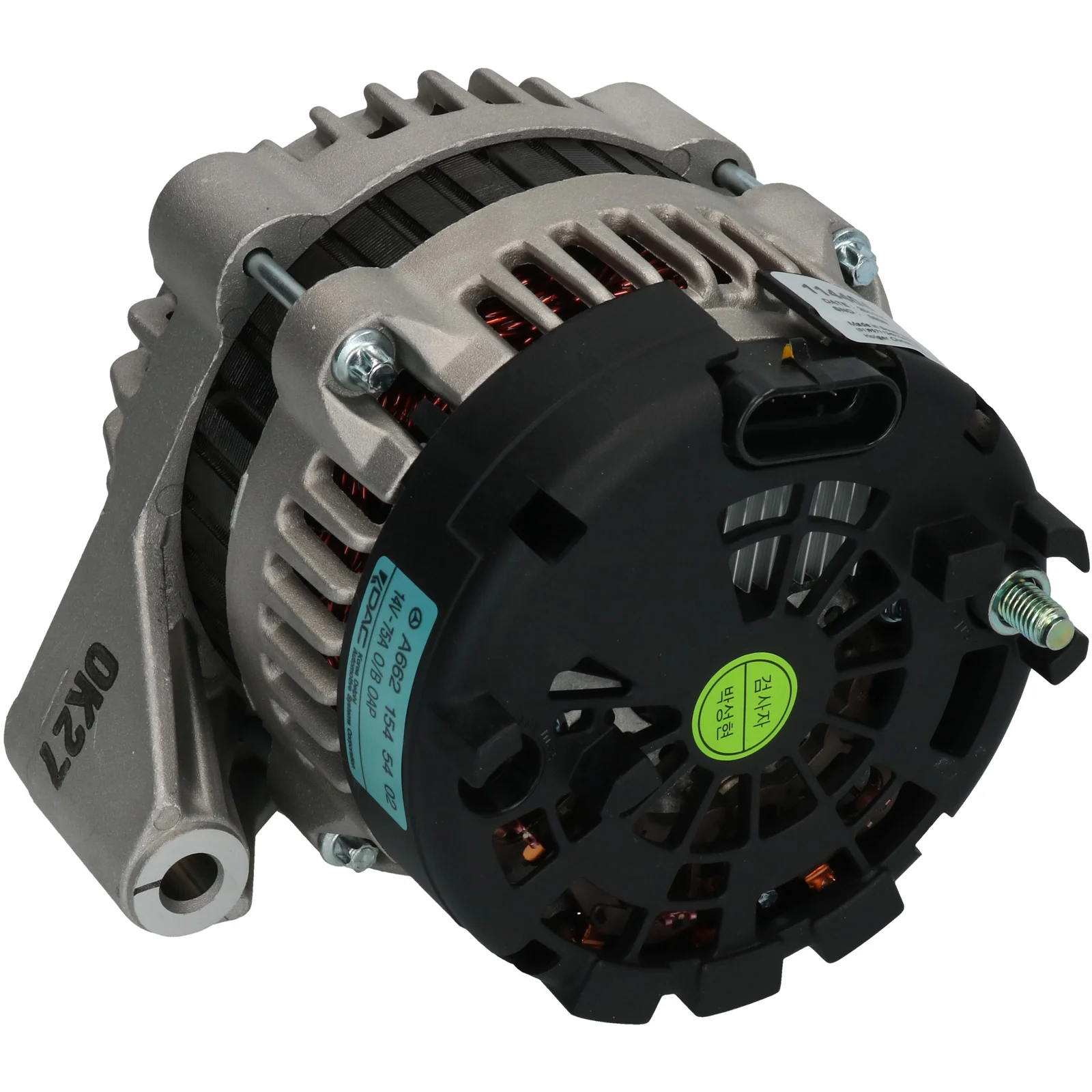

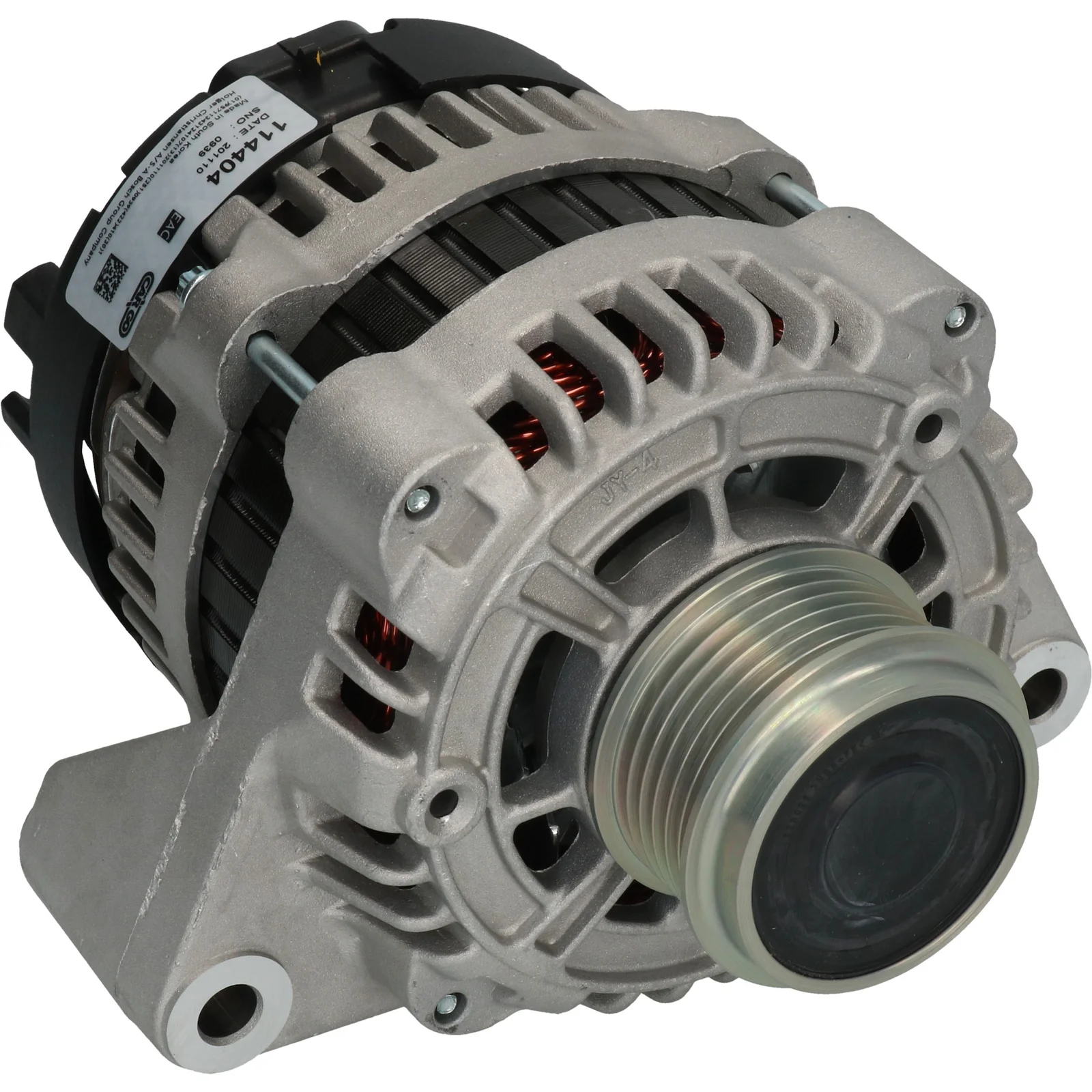

HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114404

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 75, Rotation: CW, Pulley dia.: 55.00

Description

Voltage: 14
Amp: 75
Pulley dist.: 92.00
Width/holder arm: 56.00
Bracket hole: 10.00
Belt. adj. bracket hole position.: 50
Belt. adj. bracket hole 1: 10.00
Pulley diameter: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL122
Total length mm: 173.00
Pulley: SP/FW
Fan: IF
Voltage regulator type: IR

Files

  • Description
    Voltage: 14
    Amp: 75
    Pulley dist.: 92.00
    Width/holder arm: 56.00
    Bracket hole: 10.00
    Belt. adj. bracket hole position.: 50
    Belt. adj. bracket hole 1: 10.00
    Pulley diameter: 55.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL122
    Total length mm: 173.00
    Pulley: SP/FW
    Fan: IF
    Voltage regulator type: IR

    Files

  • Suitable for these vehicles
