HC-Cargo Alternator
HC-Cargo Alternator
Article no.: F032114412

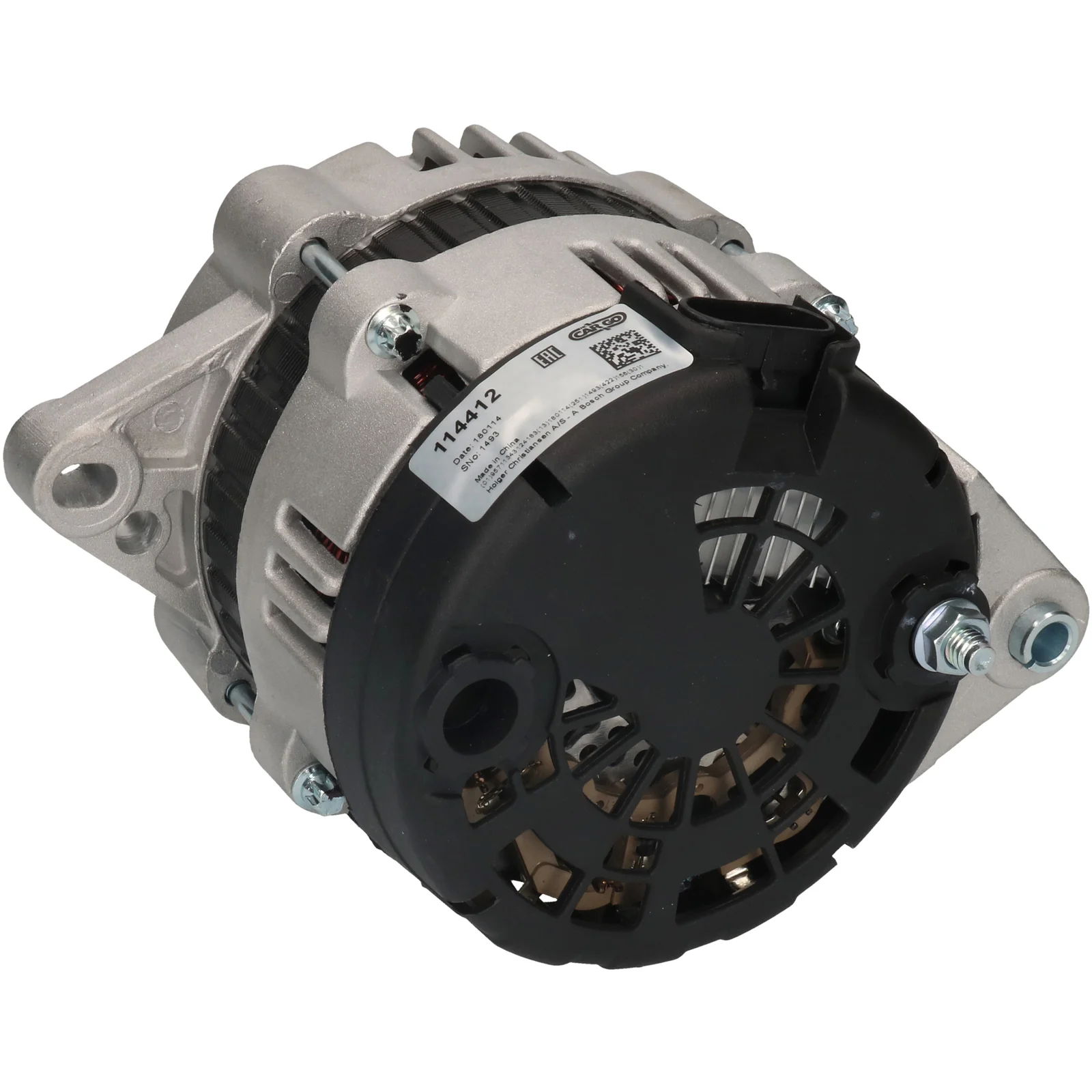

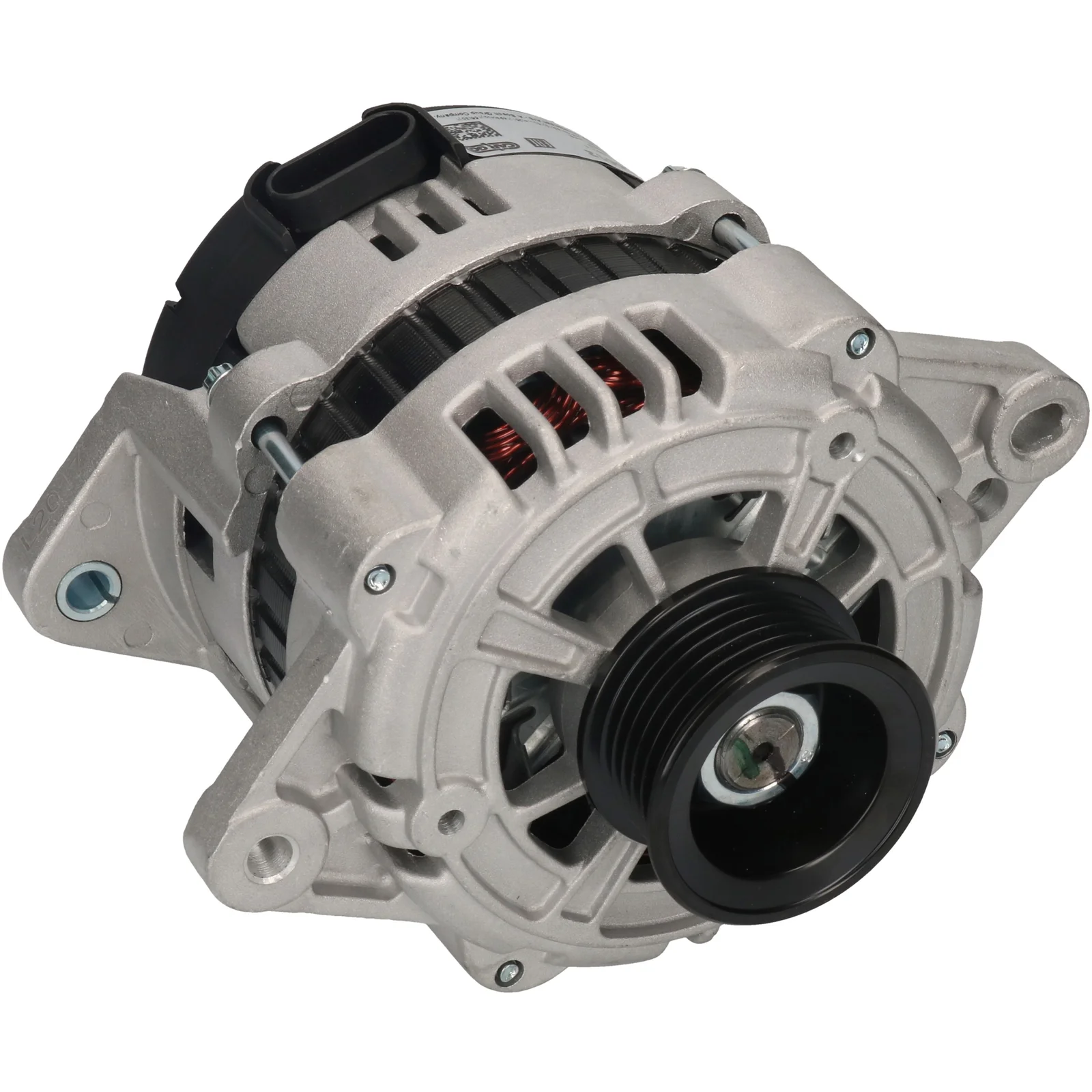

HC-Cargo Alternator

Technical info:

Voltage: 14, Amp: 85, Rotation: CW, Mounting bracket distance: 81.00

Description

Voltage: 14
Amp: 85
Pulley dist.: 36.00
Width/holder arm: 12.30
Mounting bracket dist.: 81.00
Bracket hole: 8.40
Bracket hole 2: 12.40
Belt. adj. bracket hole position.: 60
Belt. adj. bracket hole 1: 8.20
Pulley dia.: 50.00
Grooves/pulley: 6
Radius: 80.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 29
D+ Size: Plug
Rotation: CW
Plug no.: PL122
Total length mm: 180.00
Pulley: SP
Fan: IF
Regulator type: IR

Files

  • OEM
    F032114412, 1986A01681, 96540542, 96838439, 96954113

  • Normalised article numbler
    a9046, a9240, alt1212, alt7600, alth216, cal46107, dra0302, f032114412, f042a0e000, f042a0h216, 8el015630411, 1986a01681, 8483, 8483n, 8483r, 210643, 210643a, 286631, 444201, 12060901, 96540542, 96838439, 96954113, 235505085, 235510085, 0986083430
  • Description
    Voltage: 14
    Amp: 85
    Pulley dist.: 36.00
    Width/holder arm: 12.30
    Mounting bracket dist.: 81.00
    Bracket hole: 8.40
    Bracket hole 2: 12.40
    Belt. adj. bracket hole position.: 60
    Belt. adj. bracket hole 1: 8.20
    Pulley dia.: 50.00
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 29
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL122
    Total length mm: 180.00
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Files

  • Suitable for these vehicles

    • OEM
      F032114412, 1986A01681, 96540542, 96838439, 96954113

    • Normalised article numbler
      a9046, a9240, alt1212, alt7600, alth216, cal46107, dra0302, f032114412, f042a0e000, f042a0h216, 8el015630411, 1986a01681, 8483, 8483n, 8483r, 210643, 210643a, 286631, 444201, 12060901, 96540542, 96838439, 96954113, 235505085, 235510085, 0986083430
